Question

For problems 14 and 15, a drain pipe is to be laid between 2 points. One point is 15

Answer 1

Answer:

Length of the drain pipe is 72.15 feet.

Step-by-step explanation:

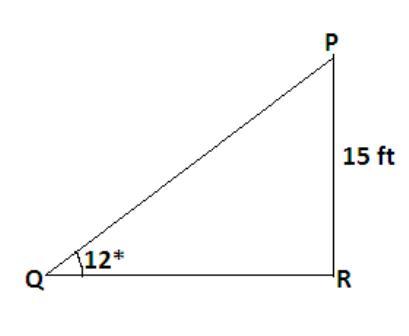

From the figure attached,

A drain pipe is to be laid between two pints P and Q.

Point P is 15 ft higher than the other point Q.

Angle of elevation of point P from point Q is 12°.

Let the length of pipe is l feet.

By applying Sine rule in the given right triangle PRQ,

Sin(∠Q) = $\frac{\text{Opposite side}}{\text{Adjacent side}}$

Sin(12) = $\frac{\text{PR}}{\text{PQ}}$

0.20791 = $\frac{15}{l}$

$l=\frac{15}{0.20791}$

$l=72.146$

l = 72.15 ft

Therefore, length of the drain pipe is 72.15 feet.
