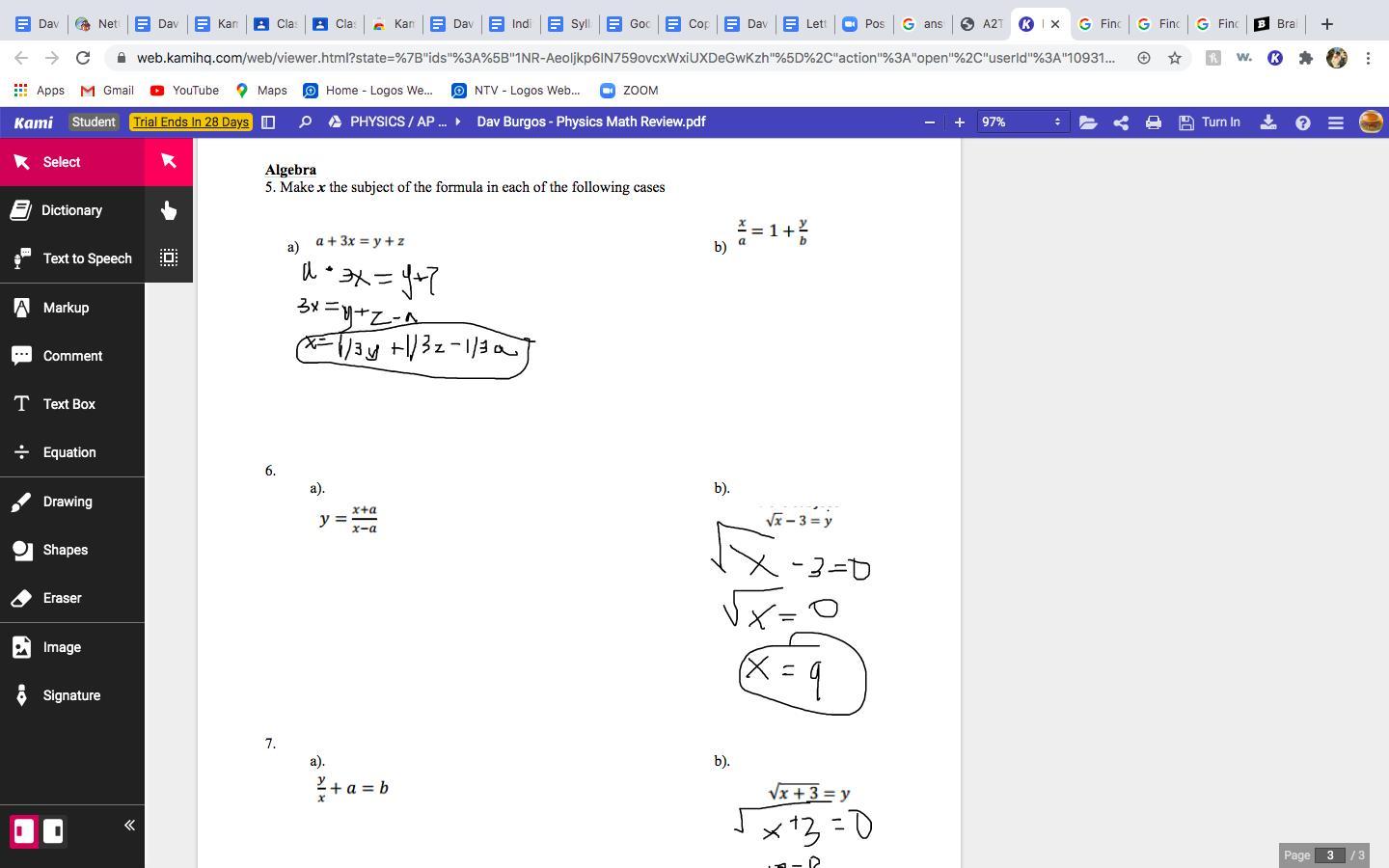

Can someone solve the blank questions? I am really having trouble solving them. Thank you!

Physics

1 answer:

Nat2105 [25]4 years ago

5 0

Answer:

Explanation:

There's not really much for me to say here I feel. On 7)b) you appear to let y=0 for some reason, so I redid that one without doing that just in case. Just look at what I did and take notes for the future.

You might be interested in

What can be proved from the given figure?

Neko [114]

It prove that liquid pressure increases with depth

6 0

3 years ago

A constant amount of charge passes through a conductor. How is current affected if the same amount of charge passes in less time

baherus [9]

Answer:

B. The current increases.

Explanation:

As we know that rate of flow of charge through the conductor is known as electric current

So we have

$i = \frac{q}{t}$

here we know that charge Q flowing through the conductor is constant while the time in which it passes through it is decreased

so we can say that the ratio of charge and time will increase

so here we have

$i = increased$

So correct answer will be

B. The current increases.

4 0

4 years ago

a motorcyclist starts from rest and accelerates at rate of 4 meters per second squared north. what is the final velocity of the

MArishka [77]

Answer:

80m<em>/</em><em>s</em>

Explanation:

Final velocity is given by

v=u+at

when a motorcyclist starts from rest, initial velocity (u) =0

therefore

v=0+4*20

v=80m/s

that's the answer

8 0

4 years ago

A chemical reaction that has the general formula of AB + C → CB + A is best classified as a reaction.

MissTica

Answer:

Single replacement

Explanation:

A reaction in which one element replaces a similar element is called single replacement. In this case, C is replacing A.

7 0

4 years ago

Read 2 more answers

Question 9 In an RC series circuit, ε = 12.0 V, R = 1.07 MΩ, and C = 2.66 µF. (a) Calculate the time constant. (b) Find the maxi

meriva

Answer:

a.) τ = 2.85 s b.) Q = 3.19 * 10^-5 C c.) t = 1.691 s

Explanation:

So we are told that it is a RC circuit. We are told $Q = C V [1 - e^(-t/RC)]$ = 12.0 V, R = 1.07 MΩ and C = 2.66 µF.

a.) The time constant for RC circuit, τ = RC. Substituting our known values we get:

τ = RC where R = (1.07 * 10 ^ 6)Ω and C = (2.66 * 10 ^ -6) F

τ = (1.07 * 10 ^ 6)Ω * (2.66 * 10 ^ -6) F = 2.8462 s ≈ 2.85 s

τ = 2.85 s

b.) The relationship between capacitance, potential, charge is given:

$Q = CV[1-e^{-t/RC} ]$

The capacitor is fully charge when t approaches infinity, therefore:

$Q = \lim_{t \to \infty} a_n CV[1-e^{-t/RC} ]$

When t approaches infinity, the term e becomes very small (e^-∞ = 0), therefore we can simplify the equation and plug in our values

$Q = (2.66*10^{-6}) F * (12.0)V *[1 - 0] = 3.192 * 10^{-5}$

Q = 3.19 * 10^-5 C

c.) Using the same equation as before, we can substitute Q in and solve for Q:

$(14.3 * 10 ^ 6) C = (2.66*10^{-6})F *(12.0)V*[1-e^{-t/(2.85s)}]\\0.552 = e^{-t/(2.85s)}\\t = -1 * 2.85 * ln(0.552) \\t = 1.69120678 s$

t = 1.691 s

Hope this helps! I'm not sure what the units you want, so convert to the desired units.

6 0

4 years ago
