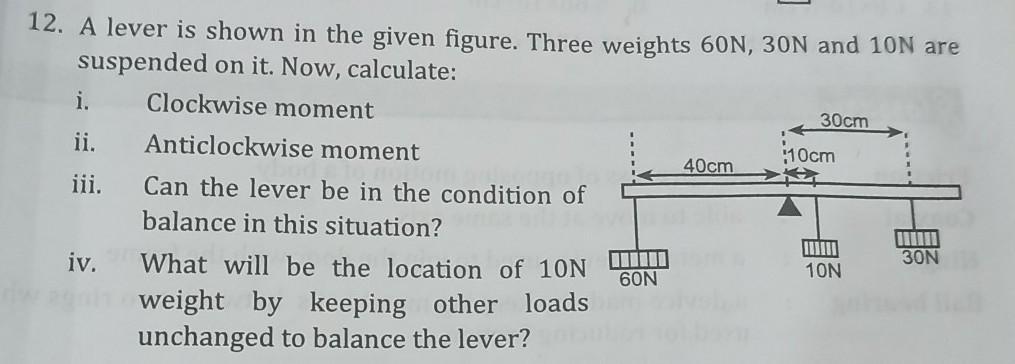

Plz solve this. plz plz plz plz simple machine

Physics

1 answer:

nalin [4]3 years ago

5 0

Answer:

Explanation:

i. CW moment = 10 N (10 cm) + 30 N (30 cm) - 60 N (40 cm) = - 1400 N-cm

ii. ACW momenet = 60 N (40 cm) - 10 N (10 cm) + 30 N (30 cm) = 1400 N-cm

iii. No. The lever is not balanced in the situation. Because the moment is ± 1400 N-cm. if balance, the moment must be Zero.

iv. the location of 10N by keeping the other loads unchanged to balance the lever is 150 cm

take moment from Δ (support)

60(40) = 10(x) + 30(30)

2400 = 10x + 900

10x = 2400 - 900

10x = 1500

x = 1500/10

x = 150 cm

therefore, the location of 10N by keeping the other loads unchanged to balance the lever is 150 cm
