Question

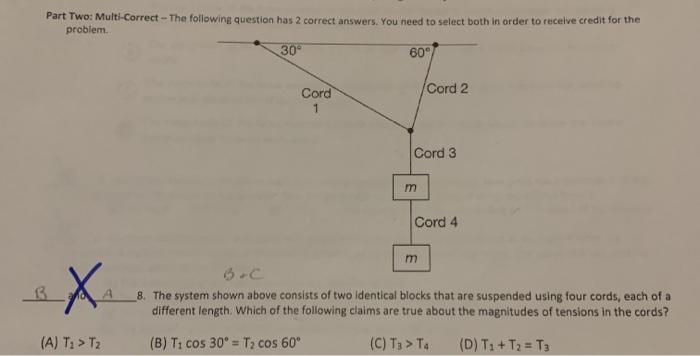

The system shown above consists of two identical blocks that are suspended using four cords, each of a different length. Which of the following claims are true about the magnitudes of the tensions in the cords? Select two answers.

Answer 1

Answer:

Option B and C are True

Note: The attachment below shows the force diagram

Explanation:

The weight of the two blocks acts downwards.

Let the weight of the two blocks be W. Solving for T₁ and T₂;

w = T₁/cos 60° -----(1)

w = T₂/cos 30° ----(2)

equating (1) and (2)

T₁/cos 60° = T₂/cos 30°

T₁ cos 30° = T₂ cos 60°

T₂/T₁ = cos 30°/cos 60°

T₂/T₁ =1.73

Therefore, option a is false since T₂ > T₁

Option B is true since T₁ cos 30° = T₂ cos 60°

Option C is true because the T₃ is due to the weight of the two blocks while T₄ is only due to one block.

Option D is wrong because T₁ + T₂ > T₃ by simple summation of the two forces, except by vector addition.
