Question

A milling operation was used to remove a portion of a solid bar of square cross section. Forces of magnitude P = 19 kN are applied at the centers of the ends of the bar. Knowing that a = 28 mm and sigma_all = 130 MPa, determine the smallest allowable depth d of the milled portion of the bar.

Answer 1

Answer:

Complete question for your reference is below.

A milling operation was used to remove a portion of a solid bar of square cross section. Forces of magnitude P = 19 kN are applied at the centers of the ends of the bar. Knowing that a = 28 mm and sigma_all = 130 MPa, determine the smallest allowable depth d of the milled portion of the bar

Explanation:

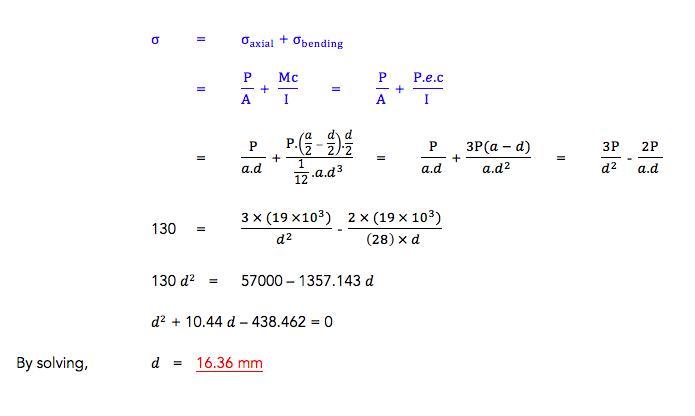

Please find attached file for complete answer solution and explanation.
