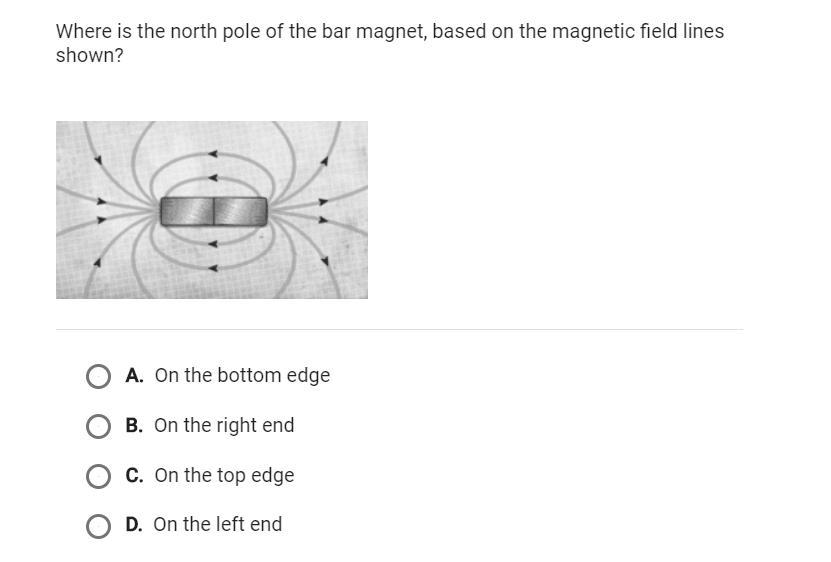

Please help on this one?

Physics

1 answer:

melomori [17]4 years ago

6 0

Answer:

B, on the right end

Explanation:

The north pole of a bar magnet is indicated by the direction of the arrows. It always point out of North and towards South. Therefore it is on the right end.

You might be interested in

An experiment on the earth's magnetic field is being carried out 1.00 m from an electric cable. What is the maximum allowable cu

Whitepunk [10]

Answer:

The allowed current in the cable is 1.15 A.

Explanation:

Given that,

Distance = 1.00 m

Suppose the magnetic field is $2.3\times10^{-5}\ T$ and if the experiment is to be accurate to 1.0 %

We need to calculate the current

Using formula of magnetic field

$B=\dfrac{\mu_{0}I}{2\pi r}$

$I=\dfrac{B\times2\pi r}{\mu_{0}}$

Put the value into the formula

$I=\dfrac{2.3\times10^{-5}\times2\times\pi\times1.00}{4\pi\times10^{-7}}$

$I=115\ A$

If the experiment is to be accurate to 1.0%

Then,

We need to calculate the allowed current in the cable

$I'=(1.0%)\times I$

$I'=\dfrac{1.0}{100}\times115$

$I'=1.15\ A$

Hence, The allowed current in the cable is 1.15 A.

4 0

3 years ago

Calculate the volume of this regular solid.

fenix001 [56]

Answer:

$2122.64 cm^3$

Explanation:

Some data in the problem are missing.

Missing values:

Radius of the cylinder: 13 cm

Height of the cylinder: 4 cm

The volume of a cylinder is given by

$V=\pi r^2 h$

where

r is the radius of the base of the cylinder

h is the height of the cylinder

In this problem, we have:

r = 13 cm (radius)

h = 4 cm (height)

Therefore, the volume of the cylinder is:

$V=\pi (13)^2(4)=2122.64 cm^3$

6 0

3 years ago

Cho lực F ⃗=6x^3 i ⃗-4yj ⃗ tác dụng lên vật làm vật chuyển động từ A(-2,5) đến B(4,7). Vậy công của lực là:

Natasha2012 [34]

The work done by $\vec F$ along the given path C from A to B is given by the line integral,

$\displaystyle \int_C \mathbf F\cdot\mathrm d\mathbf r$

I assume the path itself is a line segment, which can be parameterized by

$\vec r(t) = (1-t)(-2\,\vec\imath + 5\,\vec\jmath) + t(4\,\vec\imath+7\,\vec\jmath) \\\\ \vec r(t) = (6t-2)\,\vec\imath+(2t+5)\,\vec\jmath \\\\ \vec r(t) = x(t)\,\vec\imath + y(t)\,\vec\jmath$

with 0 ≤ t ≤ 1. Then the work performed by F along C is

$\displaystyle \int_0^1 \left(6x(t)^3\,\vec\imath-4y(t)\,\vec\jmath\right)\cdot\frac{\mathrm d}{\mathrm dt}\left[x(t)\,\vec\imath + y(t)\,\vec\jmath\right]\,\mathrm dt \\\\ = \int_0^1 (288(3t-1)^3-8(2t+5)) \,\mathrm dt = \boxed{312}$
