Elanso [62]
3 years ago
6

Draw bond-line formulas of all monochloro derivatives that might be formed when 1,1-dimethylcyclobutane is allowed to react with

Cl2 under UV irradiation. For each structure, indicate, with an asterisk, any stereocenters that might be present.
Chemistry
1 answer:
Paraphin [41]3 years ago
6 0

Answer:

Attached below

Explanation:

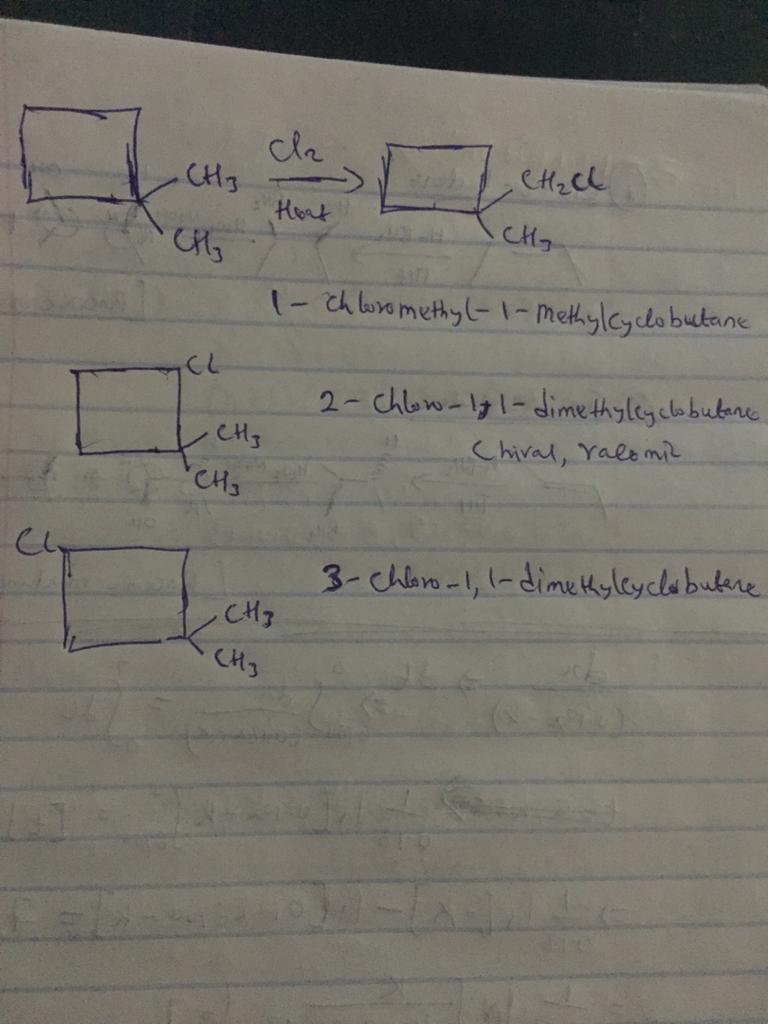

Diagram of Bond-line formulas of all monochloro derivatives formed when 1,1-dimethylcyclobutane is allowed to react with c12 under UV

attached below

You might be interested in
Figure 2 represents part of the structure of graphite.
Paul [167]

The answers include the following:

  • Graphite conducts electricity because it has delocalised electrons which makes it possible for the electrons to move freely.
  • Graphite is slippery because it has layers which makes it possible for the atoms to slide over each other.

<h3>What is Graphite?</h3>

This is referred to as an allotrope of carbon and it is the most stable form. it is used in the production of substances such as pencil, electrode etc.

Graphite is able to conduct electricity because of the presence of delocalized electrons and is slippery due to its atoms being able to slide over one another.

Read more about Graphite here brainly.com/question/27860158

#SPJ4

6 0
1 year ago
What is the structure of a fluorine atom?
34kurt

Answer:

The nucleus consists of 9 protons and 10 neutrons.  Nine electrons occupy available electron shells.

4 0
3 years ago
What is the formula for an ionic compound that forms out of Sr and Br?
lesantik [10]

Answer: St Br2

Explanation: Br has only one valence electrons and Sr has 2 valence electrons this is why we need 2 atoms of Br to for an ionic compound with 1 atom of Sr.

8 0
3 years ago
How does the revolution of the moon affect its appearance?<br><br> Pls hurry
lyudmila [28]

Answer:

Because the moon rotates as it revolves around the Earth, we only ever see on side of the moon (That is why we call the other side the "dark side of the moon").

Hope this was the answer that you were looking for!!

3 0
3 years ago
Iodine pentafluoride gas reacts with iodine fluoride gas producing iodine heptafluoride gas and iodine gas. What is the maximum
dybincka [34]

Answer:

63.45g of I₂ can be produced

Explanation:

IF₅ reacts with IF to produce IF₇ and I₂. The reaction is:

IF₅ + 2 IF → IF₇ + I₂

Moles of 10.0g of IF₅ (221.89g/mol):

10.0g IF₅ × (1mol / 221.89g) = <em>0.0451 moles of IF₅</em>

Using PV / RT = n, it is possible to find moles of 11.20L of IF, thus:

1atm×11.20L / 0.082atmL/molK × 273K = 0.500 moles of IF.

<em>At STP, pressure is 1atm, temperature is 273K and gas constant R is 0.082atmL/molK</em>

For a complete reaction of IF₅ you need:

0.0451 moles of IF₅ × (2 moles IF / 1 mole IF₅) = 0.902 moles of IF. As you have just 0.500 moles of IF, the IF is the limiting reactant.

2 moles of IF produce 1 mole of I₂. 0.500 moles of IF produce:

0.500mol IF ₓ ( 1 mol I₂ / 2 mol IF) = 0.250 mol I₂

As molar mass of I₂ is 253.81g/mol, mass of 0.250 mol I₂ are:

0.250mol I₂ ₓ (253.81g / mol) =

<h3>63.45g of I₂ can be produced</h3>
3 0
4 years ago
