3 years ago

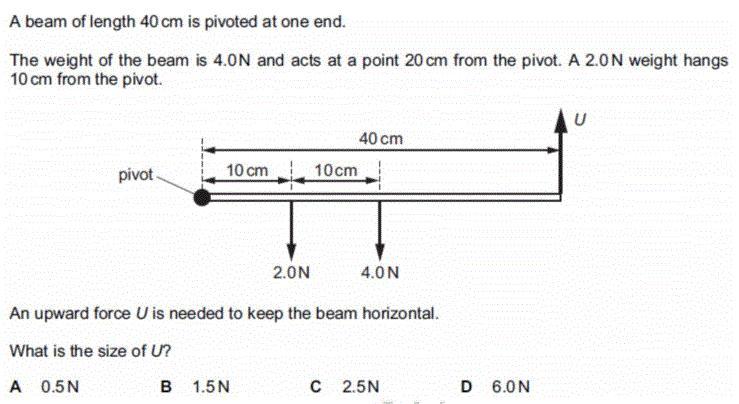

Please help me will mark u brainiest

Physics

1 answer:

Vesnalui [34]3 years ago

8 0

Answer:

C. 2.5 N

Explanation:

The sum of downwards moments equals sum of moments upwards

<u>Downwards moments </u>

Moments= Force*distance

= [10/100 * 2 ] +[20/100*4]

=[0.1*2] +[0.2*4]

=[0.2+0.8]

= 1.0 N

Equate this answer to upward force ;

1.0 N = 0.4 *U

1/0.4 =U

2.5 N =U

You might be interested in

Một ô tô khối lượng một tấn chuyển động trên một đường nằm ngang. Hệ số ma sát giữa bánh ô tô và mặt đường là 0,07. Gia tốc trọn

denis23 [38]

Answer: B

Explanation: because B

5 0

3 years ago

Read 2 more answers

A circuit connected to a battery of 1.9 voltage. has a current of 0.07 amps. What is the resistance

alexandr402 [8]

Answer:

27.14 ohms

Explanation:

V = IR

V/I = R

1.9 v / .07 a = 27.14 ohms

5 0

3 years ago

A boat cruises 60 meters west in 10 seconds. What is its instantaneous velocity?

kari74 [83]

A - 6 meters a second ( 6m/s)

3 0

3 years ago

Read 2 more answers

I’m stuck in B and D. which one is it?

tatuchka [14]

It is b! the lithosphere is the crust and upper mantle

6 0

3 years ago

Read 2 more answers

When a particle of charge q moves with a velocity v⃗ in a magnetic field B⃗ , the particle is acted upon by a force F⃗ exerted b

melomori [17]

Answer:

$3.8\cdot 10^{-16}N$

Explanation:

For a charged particle moving perpendicularly to a magnetic field, the magnitude of the force exerted on the particle is:

$F=qvB$

where

q is the magnitude of the charge of the particle

v is the velocity of the particle

B is the magnetic field strength

In this problem, we have

$q=e=1.6\cdot 10^{-19}$ is the charge of the electron

$v=6.0\cdot 10^6 m/s$ is the velocity

$B=4.0\cdot 10^{-4}T$ is the magnetic field

Substituting into the formula, we find the force:

$F=(1.6\cdot 10^{-19} C)(6.0\cdot 10^6 m/s)(4.0\cdot 10^{-4}T)=3.8\cdot 10^{-16}N$

8 0

4 years ago
