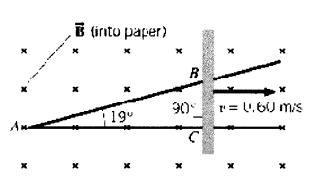

Interactive Solution 22.25 offers some help for this problem. A copper rod is sliding on two conducting rails that make an angle

of 19o with respect to each other, as in the drawing. The rod is moving to the right with a constant speed of 0.60 m/s. A 0.32-T uniform magnetic field is perpendicular to the plane of the paper. Determine the magnitude of the average emf induced in the triangle ABC during the 7.3-s period after the rod has passed point A.

Physics
1 answer:
dalvyx [7]4 years ago
7 0

Answer:

The magnitude of average EMF induced in triangle is 0.0637

Explanation:

Induced EMF = (change in Magnetic Flux Density x Area)/change in Time

EMF = - ΔΦ /Δt

=-Bdelta A/delta(t)\\=-B(1/2AC.BC)/delta(t)\\AC=Vdelta(t)\\BC=Vdelta(t)tan(theta)\\=-BV^2delta(t)tan(theta)/2\\EMF=0.0637V

You might be interested in
When you look at the backside of a shiny teaspoon held at arm's length, do you see yourself upright or upside down? (b) When you
igor_vitrenko [27]

Answer:

a) The back spoon gives a right image (upright)

b) the front gives an inverted image

Explanation:

The spoon is a curved metallic object, when we see ourselves from the back we have a convex mirror, in this type of mirror when the law of reflection is applied the rays diverge therefore the eye-brain system forms the image with the prolongation of the rays, therefore the image is straight and smaller than the object.

When we look through the deep side of the spoon, we have a concave mirror and as the object (we) is further away than the distance, the rays converge to a point, so the image is real, inverted smaller than the object.

In summary.

a) The back spoon gives a right image (upright)

b) the front gives an inverted image

3 0
3 years ago
Two solenoids A and B, spaced close to each other and sharing the same cylindrical axis, have 430 and 610 turns, respectively. A
KIM [24]

Answer

given,

Two solenoids A and B

Number of turn

Na = 430 turns          Nb = 610 turns

Current = 2.80 A

Average flux through  A  = 300 μWb

Average of flux through B = 90.0  μ Wb

a) L = \dfrac{N \phi}{I}

   L = \dfrac{610\times 90 \times 10^{-6}}{2.80}

   L =19.6 mH

b) inductance of A

   L = \dfrac{N_A \phi_A}{I_A}

   L = \dfrac{430\times 300 \times 10^{-6}}{2.80}

   L =46 mH

c) magnitude of the emf

    \epsilon_B = -L_B\dfrac{dI}{dT}

    \epsilon_B = -(19.6\times 10^{-3})(0.5)

    \epsilon_B = -9.8\times 10^{-3}\ V

    \epsilon_B = -9.8\ mV

7 0
3 years ago
Standard Heat of Formation: The enthalpy change for the formation of 1 mol of a substance in its standard state from its constit
ArbitrLikvidat [17]

Answer:

True

Explanation:

Standard heat of formation is the heat change that deals with the formation of 1mole at standard rates and states of the given reactants . Standard heat of formation is the difference between the enthalpy change of reactants and products.

7 0
3 years ago
I need help with egg drop assignments any ideas?
Jet001 [13]

Answer:

make a parachute out of the bag connecting to a bowl made out of paper filled with cotton balls. then put the egg in the bowl.

Explanation:

7 0
3 years ago
If an organism can not reproduce,is it still considered living?why?
zlopas [31]
The ability to reproduce is essential for a species, but not for an individual. There are some people that can't reproduce, but they're still alive!
6 0
3 years ago
