vesna_86 [32]
3 years ago
12

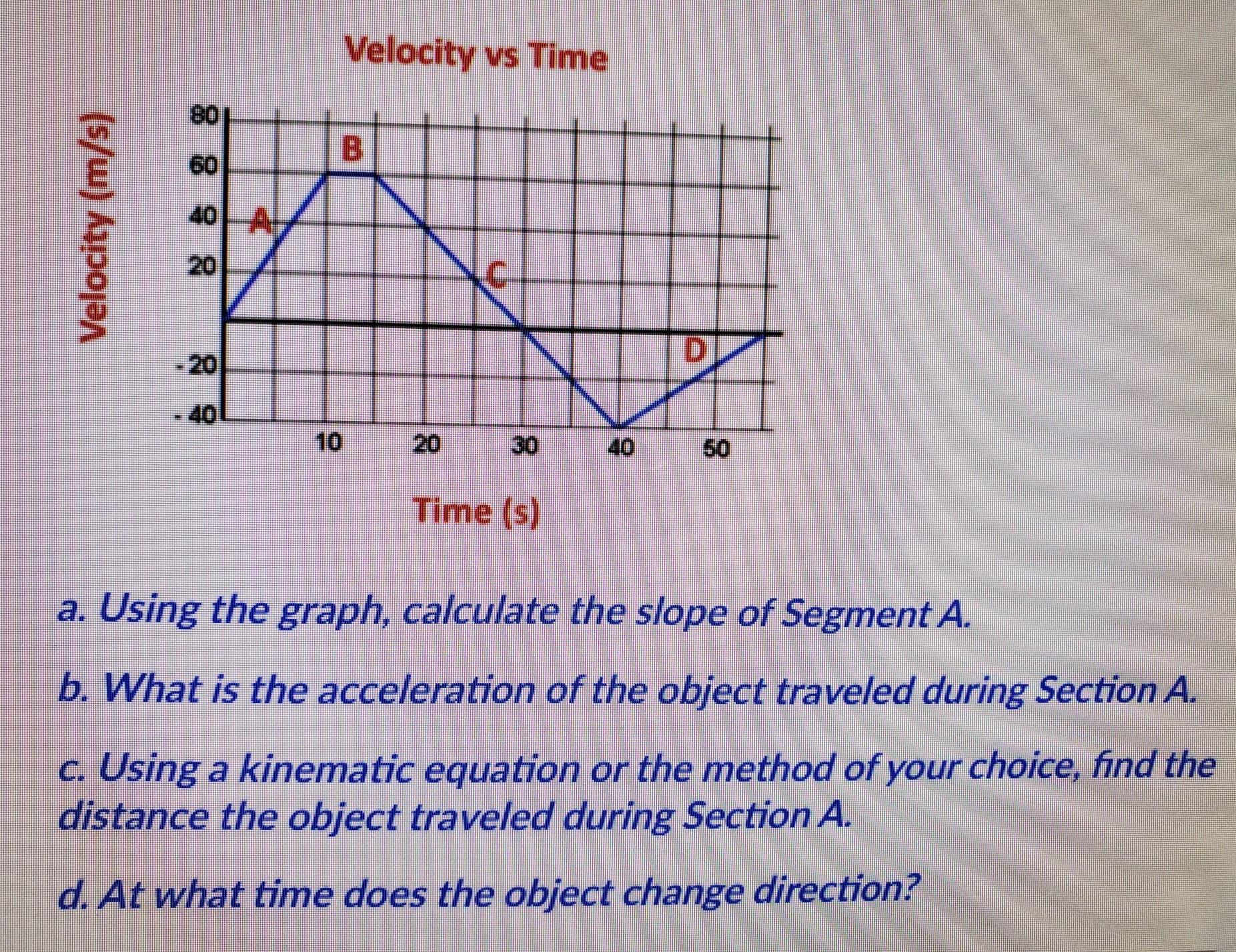

Please help! Question is attached.​

Physics
1 answer:
il63 [147K]3 years ago
6 0

Answer:

a. 6

b. 6 m/s²

c. 300 m to the right

d. 30 secs

Explanation:

slope = rise /run

60-0/10-0

= 6

b. slope = acceleration = 6 m/s²

c. d=ut+1/2at²

t=10 (segment A last for 10 secs)

u - initial velocity = 0

so d = 0(10)+1/2*6*10²

=300 m
