Hitman42 [59]
2 years ago
15

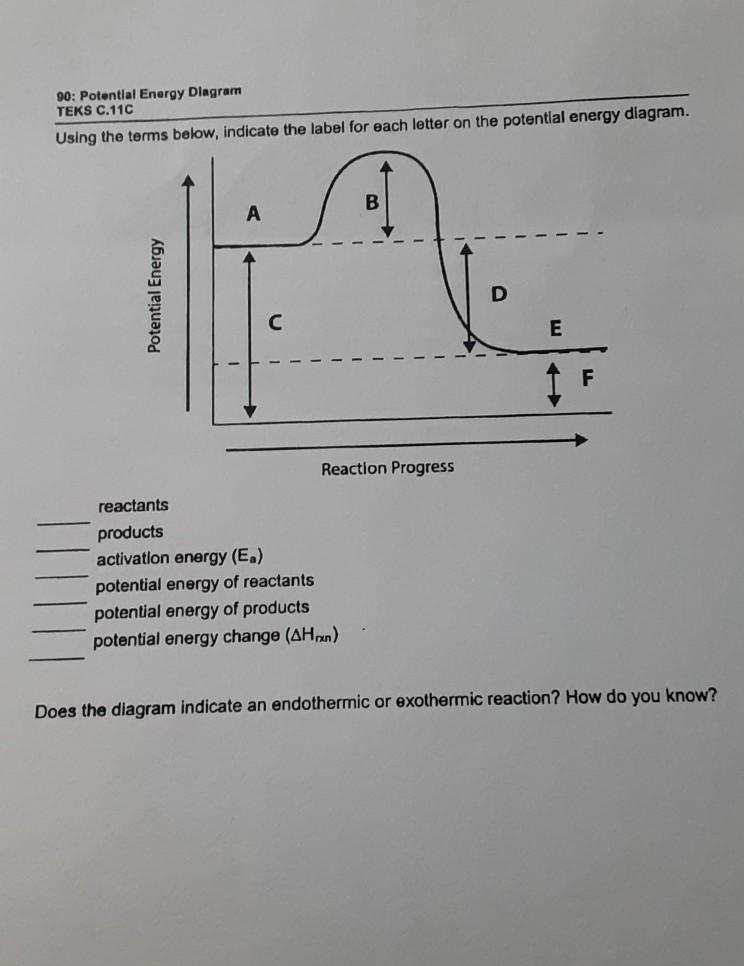

Chemistry questionlabel themreactants, products,activation energy etc​

Chemistry
1 answer:
sertanlavr [38]2 years ago
7 0

In the illustration A would be the reactants and E would be the products. B would be the activation energy (Ea), C would be the potential energy of reactants, F would be the potential energy of products, and D would be the potential energy change.

<h3>Energy Diagram</h3>

The energy diagram shows the energy states of the components of reactions.

From the diagram, A being the reactant becomes E, the product. The minimum energy that A needs to overcome to arrive at the product (activation energy) is B.

The energy state of the reactant A before becoming the product is C while that of the product E is F. The difference in the energy state of A and E is D.

More on energy diagrams of reactions can be found here: brainly.com/question/12798587

You might be interested in
Johanna makes the table below to organize her notes about centripetal forces. Which type of force should she place in the cell m
Valentin [98]

<u>Answer:</u> The correct answer is Option 2.

<u>Explanation:</u>

Centripetal force is defined as the force that acts on a body moving in a circular path and is directed towards the center around which the body is moving.

Mathematically,

F_c=\frac{mv^2}{r}

Where,

F_c = centripetal force

m = mass of the object

v = tangential velocity

r = radius of the path

From the above relation, X corresponds to the radius and Y corresponds to the tangential velocity.

Hence, the correct answer is option C.

3 0
3 years ago
Read 2 more answers
Strontium phosphate, Sr3(PO4)2, is a crystalline substance used in medicine and industry. How many phosphorus atoms are represen
dexar [7]

Answer: option A. 2

Explanation: in the formula Sr3(PO4)2, the 2 behind (PO4) is affecting both P and O4. It means that we have P2 in the formula

7 0
4 years ago
How does an exothermic change show that a chemical reaction occured?
Gre4nikov [31]
With increasing temperature of the chemical reaction
8 0
3 years ago
A(n) _____ is equivalent to an electron. gamma ray omega particle alpha particle beta particle
ladessa [460]

Answer:

beta particle

Explanation:

Explanation:

Alpha beta and gamma radiations are the examples of ionizing radiations. When an atom is an excited state and having high energy, the atom is in unstable state. The excess of energy is released by the atom to get the stability. The released energy is in the form of radiations which may include alpha, beta, gamma, X-ray etc.

¹⁴₆C → ¹⁴₇N + ⁰₋₁e

The beta radiations are emitted in this reaction. The one electron is ejected and neutron is converted into proton.

Beta radiations:

Beta radiations are result from the beta decay in which electron is ejected. The neutron inside of the nucleus converted into the proton an thus emit the electron which is called β particle.

The mass of beta particle is smaller than the alpha particles.

They can travel in air in few meter distance.

These radiations can penetrate into the human skin.

The sheet of aluminium is used to block the beta radiations

3 0
4 years ago
Oh, no! You just spilled 85.00 mL of 1.500 M sulfuric acid on your lab bench and need to clean it up immediately! Right next to
vredina [299]

Explanation:

We will balance equation which describes the reaction between sulfuric acid and sodium bicarbonate: as follows.

   H_2SO_4(aq) + 2NaHCO_3(s) \rightarrow Na2SO_4(aq) + 2H_2O(l) + 2CO_2(g)

Next we will calculate how many moles of H_2SO_4 are present in 85.00 mL of 1.500 M sulfuric acid.

As,       Molarity = \frac{\text{moles of solute}}{\text{liters of solution&#10;}}

            1.500 M = \frac{n}{0.08500 L&#10;}

                    n = 0.1275 mol H_2SO_4

Now set up and solve a stoichiometric conversion from moles of H_2SO_4  to grams of NaHCO_3. As, the molar mass of NaHCO_3 is 84.01 g/mol.

 0.1275 mol H_2SO_4 \times (\frac{2 mol NaHCO_3}{1 mol H_2SO_4}) \times (\frac{84.01 g NaHCO_3}{1 mol NaHCO_3})

                 = 21.42 g NaHCO_3

So unfortunately, 15.00 grams of sodium bicarbonate will "not" be sufficient to completely neutralize the acid. You would need an additional 6.42 grams to complete the task.

4 0
3 years ago
