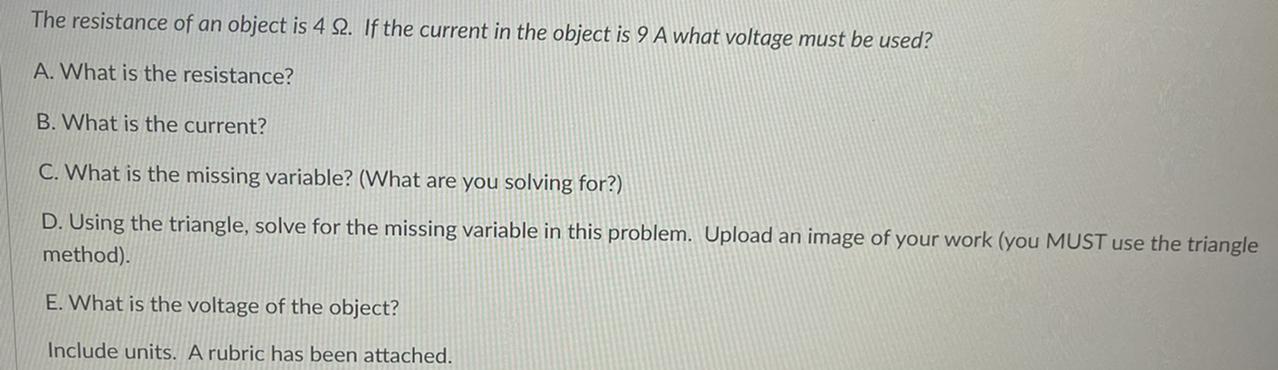

Please help!! Look at pic

1 answer:

kkurt [141]3 years ago

7 0

Answer:

Explanation:

Voltage and Current relation is given by V=IR
I=9A

R=4Ohm

V=IR
V=9x4=36Volts

Resistance = 4 Ohm

Current = 9 Ampere

Voltage = 36 Volts
