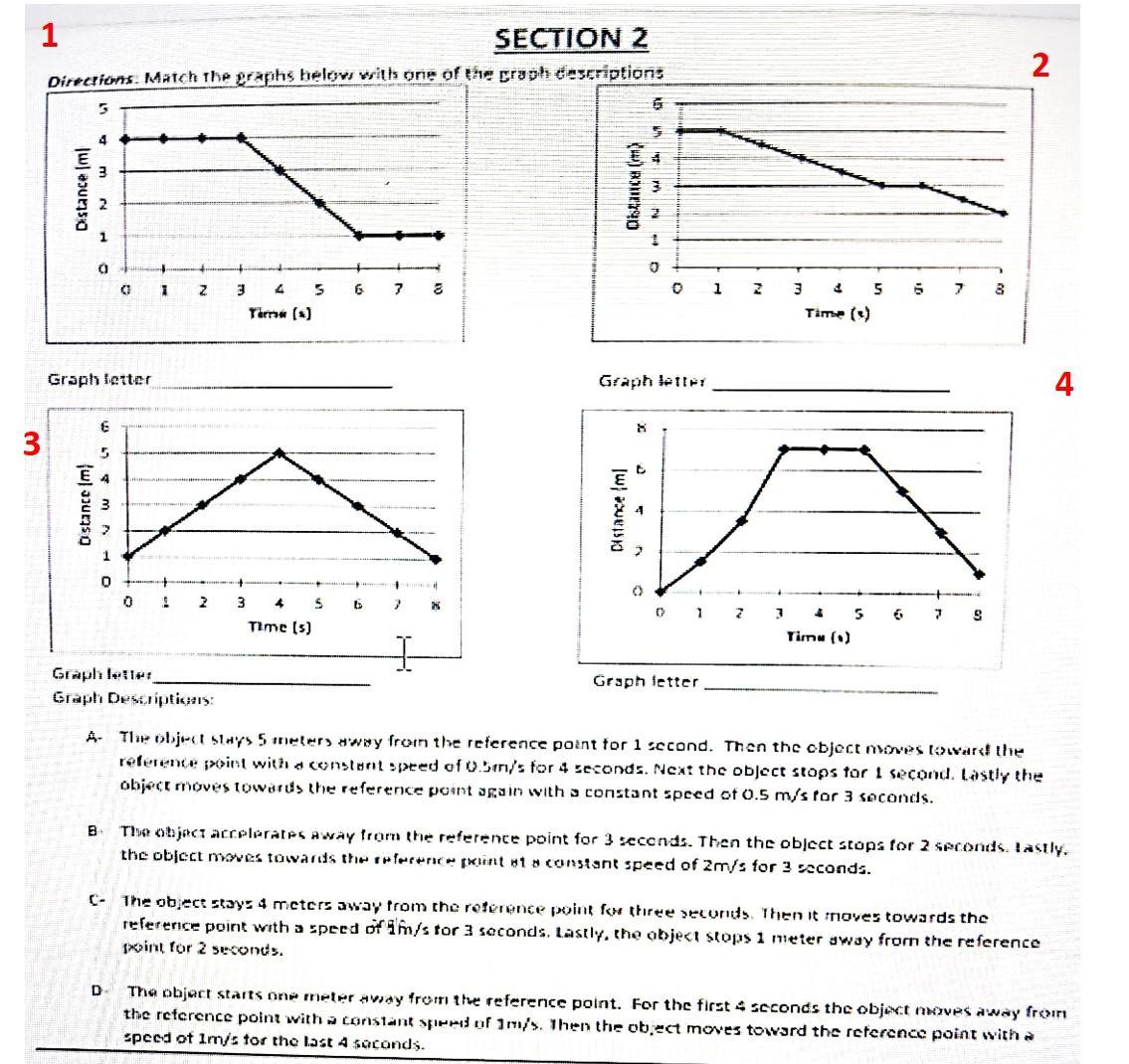

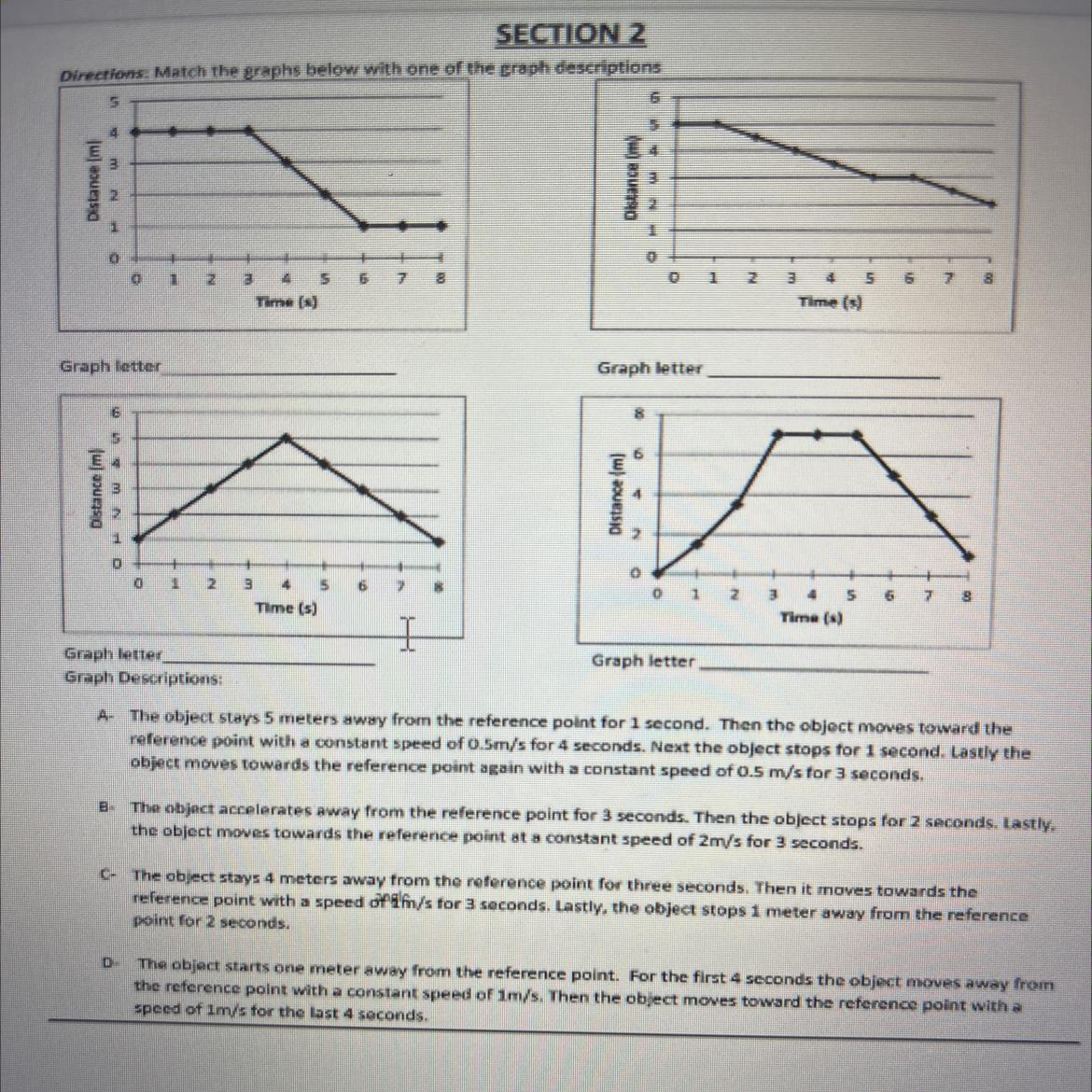

Section 2 match the graphs below with one of the graph descriptions

Physics

1 answer:

Juli2301 [7.4K]2 years ago

3 0

The distance-time graphs are labelled accordingly:

Graph one: Option C

Graph Two: Option A

Graph Three: Option D

Graph Four: Option B

<h3>What is a distance time graph?</h3>

A distance-time graph depicts how far a person travels at any given time.

A distance-time graph can be used to illustrate the distance traveled by an item moving in a straight line.

The gradient of the line in a distance-time graph equals the speed of the item.

The quicker the item moves, the higher the gradient (and the steeper the line).

Learn more about distance-time graph:
brainly.com/question/28177455
#SPJ1

You might be interested in

A 4-foot spring measures 8 feet long after a mass weighing 8 pounds is attached to it. The medium through which the mass moves o

brilliants [131]

Answer:

$\mathbf{x = 3te ^{-2 \sqrt{2t}}}$

Explanation:

From the given information concerning the spring-mass system:

Let us apply Hooke law.

Then, we have:

mg = ks

8 = k4

k = 8/4

k = 2

Provided that the mass weighing 8 lbs is attached to a spring.

Then, we can divide it by gravity 32 ft/s².

∴

m = 8/32

m = 1/4 slugs

The medium that offers the damping force $\beta = \sqrt{2}$

Now, let us set up a differential equation that explains the motion of the spring-mass system.

The general equation is:

$mx '' + \beta x' + kx = 0$

where;

$m = \dfrac{1}{4}$

k = 2, and

$\beta = \sqrt{2}$

Then;

$\dfrac{1}{4}x'' + \sqrt{2} x' + 2x = 0$

By solving the above equation, the auxiliary equation is:

$m^2 + 4 \sqrt{2} m + 8n = 0$

Using quadratic formula:

$\dfrac{-b \pm \sqrt{b^2 -4ac}}{2a}$

$m = \dfrac{-4 \sqrt{2} \pm \sqrt{(4 \sqrt{2})^2 -4(1)(8) }}{2}$

$m = \dfrac{-4 \sqrt{2} \pm \sqrt{32 -32 }}{2}$

$m = -2 \sqrt{2}$

Since this is a repeated root, the solution to their differential equation took the form.

$x_c = c_1 e^{mt} + c_2 t e^{mt}$

$x_c = c_1 e^{-2\sqrt{2} t} + c_2 t e^{-2\sqrt{2} t}$

From the initial condition.

At equilibrium position where the mass is being from:

x(0) = 0

Also, at the downward velocity of 3 ft/s

x'(0) = 3

Then, at the first initial condition:

$x_c (0) = c_1 e^{-2\sqrt{2} *0} + c_2 (0) e^{-2\sqrt{2} *0}$

$0= c_1 e^{0} + 0$

$0= c_1$

At the second initial condition;

$x' = -2 \sqrt{2} c_1 e^{-2 \sqrt{2} t } -2 \sqrt{2} c_2 t e^{-2 \sqrt{2} t } + c_2 e^{-2 \sqrt{2} t}$

where;

x'(0) = 3

$x' (0) = -2 \sqrt{2} c_1 e^{-2 \sqrt{2}* 0 } -2 \sqrt{2} c_2 (0) e^{-2 \sqrt{2} *0 } + c_2 e^{-2 \sqrt{2} *0}$

$3 = -2 \sqrt{2} * 0 *e^0 - 0 + c_2 e^0$

$3 = 0 + c_2$

$3 = c_2$

Replacing in the constraints, the equation of the motion is:

$\mathbf{x = 3te ^{-2 \sqrt{2t}}}$

3 0

3 years ago

what are the 3 properties of components of the universe that can be determined using electromagnetic radiation?

stepan [7]

Your answer is electricity, light and magnetism. They can be determined usinf elecromagnetic radioation.
<span>
Even the energy can't be detected by our eyes, there are a lot of measurement instruments that can measure infrared (IR), gamma rays, radio or X-rays or ultraviolet (UV)</span>

4 0

4 years ago

A system absorbs 186 kj of heat and the surroundings do 110 kj of work on the system. what is the change in internal energy of t

hichkok12 [17]

296kJ

add the two, there you go

7 0

3 years ago

The first law of thermodynamics states that △E = Q-w. is this also a statement of the principle of conversation of energy? A. Th

Vika [28.1K]

Its <span>A. The heat that flows into the system is transformed into work and a change in internal energy</span>

4 0

3 years ago

Read 2 more answers

true or false:acceleration toward the center of a curved or circular path is called gravitational acceleration.

nalin [4]

Nope. It's called 'centripetal' acceleration. The force that created it MAY be gravitational, but it doesn't have to be. For things on the surface of the Earth moving in circles, it's never gravity.

5 0
