Question

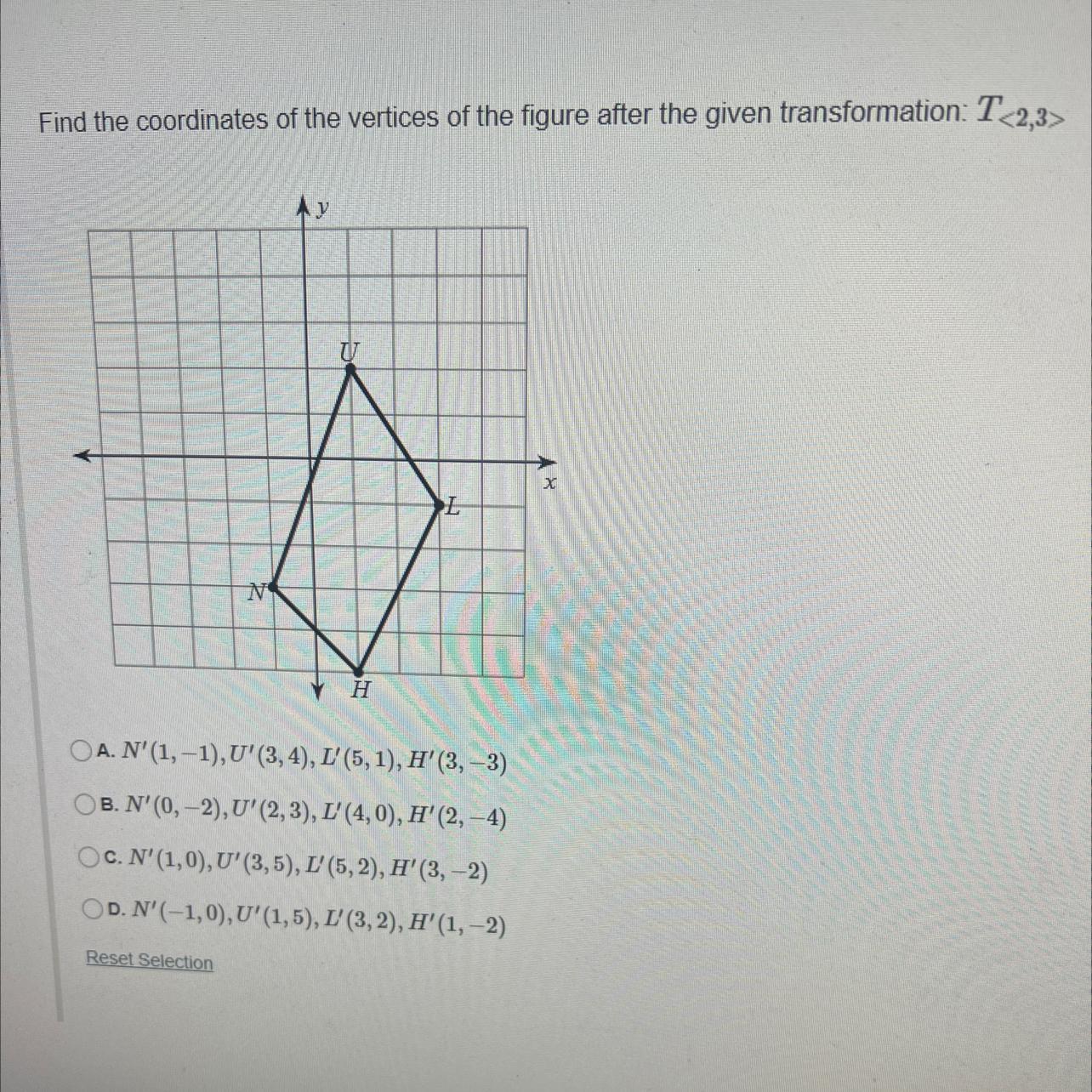

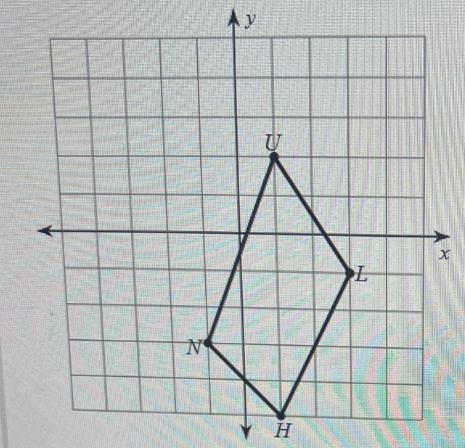

Find the coordinates of the vertices of the figure after the giver transformation: T<2,3>

Answer 1

Given:

Find-:

Coordinates after transformation

Explanation-:

I assume that is an x translation 2 to the right (positive horizontal ) and 3 up (positive vertical ) the vertices would be as follow

The vertices would be as:

$H=\text{ }(1,-5)\rightarrow(3,-2)$

The point L is:

$L=(3,-1)\rightarrow(5,2)$

The point N is:

$N=(-1,-3)\rightarrow(1,0)$

The point U is:

$U=(1,2)\rightarrow(3,5)$

So, the point all points is:

$\begin{gathered} N^{\prime}=(1,0) \\ \\ U^{\prime}=(3,5) \\ \\ L^{\prime}=(5,2) \\ \\ H^{\prime}=(3,-2) \end{gathered}$
