alexgriva [62]
3 years ago
12

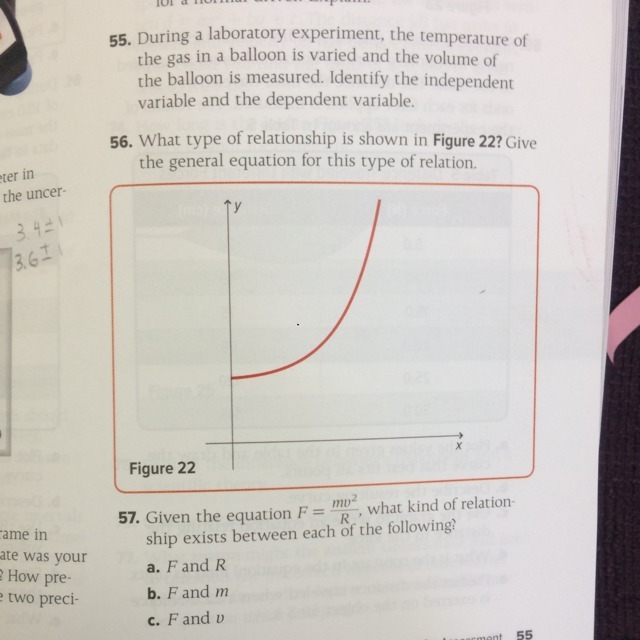

Can you help me with this question please

Physics
1 answer:
Elden [556K]3 years ago
3 0
It's hard to tell from the picture whether that's a quadratic relationship

A x^2 + B x + C = 0

or an exponential one

Y = A (e^Bt) + C .
You might be interested in
Physical science help!
Scrat [10]

Answer:

Let's begin by explaining that the <u>electromagnetic spectrum</u> is the set of electromagnetic radiations distributed in their different frequencies or wavelengths. So, if we go from the smallest wavelengths known up to now (because according to physics the electromagnetic spectrum is infinite and continuous) to the longest, the electromagnetic spectrum covers the following radiations:

Gamma rays, X-rays, ultraviolet, visible light, infrared, radio waves and microwaves:

-Gamma rays: With a wavelength in the order of 10^{-12}m, is a type of ionizing radiation capable of penetrating matter quite deeply and is able to cause serious damage to the nucleus of the cells.

-X rays: With a wavelength between 1m and 10km. It is invisible to the human eye, capable of crossing opaque bodies and is also an ionizing radiation.

-Ultraviolet light (UV): Whose wavelength is approximately between 100 nm and 380 nm; is a type of electromagnetic radiation that is not visible to the human eye.

-Visible light: This part of the spectrum is located between ultraviolet light and infrared light (400 nm - 800 nm). It should be noted, the fact the only part of the whole electromagnetic spectrum is visible to humans is because the receptors in our eyes are only sensitive to these wavelengths.

-Infrared: This type of radiation is not visible to the human eye, since its wavelengths are outside the visible spectrum (between 700 nm and 1 mm).

These waves can be divided into:

- Near infrared or long wave infrared: it is the least sensitive to color and is easily absorbed by water.

- Medium or medium wave infrared: it is also insensitive to color and easily absorbed by water and many types of plastics and paints.

- Far infrared or short wave infrared: it is more penetrating than the long wave and is good for heating metals, these waves also can pass through clear materials.

This light has many uses, including heating lamps in physiotherapy and medical treatments, heat sensing devices, among others.

-Radio waves: This is a type of electromagnetic radiation with wavelengths between 10 m to 10,000 m. This type of electromagnetic waves is very well reflected in the ionosphere, the layer of the atmosphere through which they travel directly or using repeaters. In addition, this radiation is important in telecommunications.

3 0
4 years ago
Use the worked example above to help you solve this problem. An Alaskan rescue plane drops a package of emergency rations to str
Vlad [161]

Answer:

(a) The package lands 682 meters horizontally ahead from the point the package was dropped from the plane

(b) The horizontal component = 39.0 m/s

The vertical component = 171.55 m/s

(c) The angle of impact is 77.19°

Explanation:

The parameters given are;

Velocity of the plane, vₓ = 39.0 m/s

Height of the plane above the ground, h = 1.50 × 10² m = 1,500 m

(a) The time, t, before the package hits the ground when dropped from the plane is given by the relation;

h = u·t + 1/2×g×t²

Where:

g = Acceleration due to gravity = 9.81 m/s²

u = Initial vertical velocity = 0 m/s

Hence;

1500 = 0×t + 1/2 × 9.81 × t² = 4.905·t²

∴ t = √(1500/4.905) = 17.49 s

The horizontal distance the package travels before landing = 17.49 × 39 ≈ 682 m

The package lands 682 meters horizontally ahead from the point the package was dropped from the plane

(b) The vertical velocity, v_y, of the package just before landing is given by the relation;

v_y² = u² + 2·g·h

u = 0 m/s

∴ v_y² = 0 + 2×9.81×1500 = 29430 m²/s²

v_y = √29430  = 171.55 m/s

Hence the horizontal component = 39.0 m/s

The vertical component = 171.55 m/s

(c) The angle of impact, θ, is given as follows;

tan \theta = \dfrac{v_y}{v_x}  = \dfrac{171.55}{39.0 } = 4.4

∴ θ = tan⁻¹(4.4) = 77.19°.

6 0
4 years ago
A disk of a radius 50 cm rotates at a constant rate of 100 rpm. What distance in meters will a point on the outside rim travel d
Iteru [2.4K]

Answer:

A point on the outside rim will travel 157.2 meters during 30 seconds of rotation.



Explanation:

We can find the distance with the following equation since the acceleration is cero (the disk rotates at a constant rate):

d = v*t

Where:

v: is the tangential speed of the disk

t: is the time = 30 s

The tangential speed can be found as follows:

v = \omega*r

Where:

ω: is the angular speed = 100 rpm

r: is the radius = 50 cm = 0.50 m

v = \omega*r = 100 \frac{rev}{min}*\frac{2\pi rad}{1 rev}*\frac{1 min}{60 s}*0.50 m = 5.24 m/s

Now, the distance traveled by the disk is:

d = v*t = 5.24 m/s*30 s = 157.2 m

Therefore, a point on the outside rim will travel 157.2 meters during 30 seconds of rotation.

I hope it helps you!

3 0
3 years ago
A scientific law
grin007 [14]
Can have any number of exceptions as long as we know about them. Hope this helps!!! Brainleist Please!!
7 0
4 years ago
By how many times will the kinetic energy of a body increase if its speed is tripled? Show by calculation .​
alina1380 [7]

Answer:

9 lần

Explanation:

8 0
3 years ago
