4 years ago

HELPPP PLEASE

Physics

2 answers:

neonofarm [45]4 years ago

4 0

Hey!!

here is your answer >>>

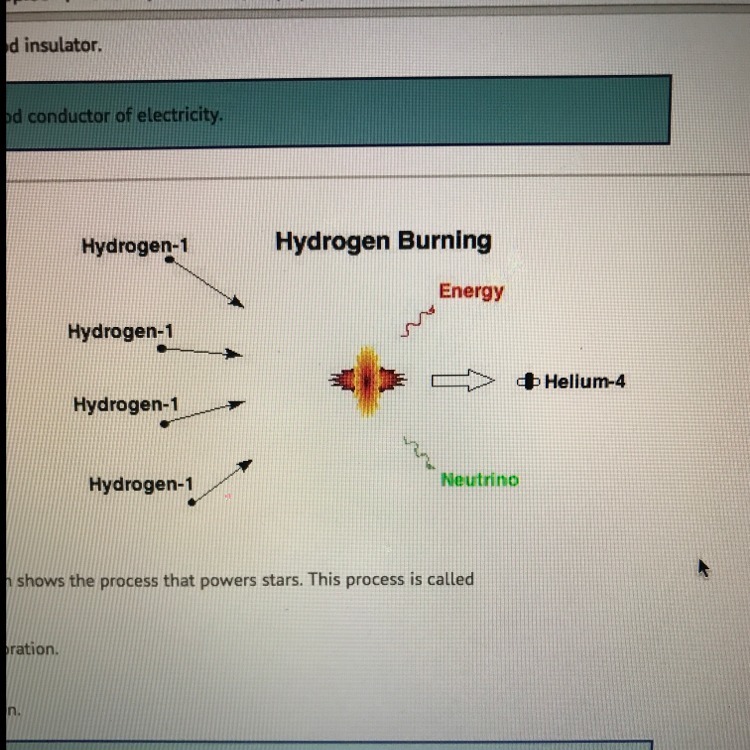

The process shown in the above diagram is known as fusion, where the energy and different elements come together an combine!

Hope my answer helps!

MArishka [77]4 years ago

4 0

The answer is (C) FUSION

You might be interested in

The electric field in a region is uniform (constant in space) and given by E-( 148.0 1 -110.03)N/C. An additional charge 10.4 nC

enyata [817]

Answer:

The y-component of the electric force on this charge is $F_y = -1.144\times 10^{-6}\ N.$

Explanation:

<u>Given:</u>

Electric field in the region, $\vec E = (148.0\ \hat i-110.0\ \hat j)\ N/C.$
Charge placed into the region, $q = 10.4\ nC = 10.4\times 10^{-9}\ C.$

where, $\hat i,\ \hat j$ are the unit vectors along the positive x and y axes respectively.

The electric field at a point is defined as the electrostatic force experienced per unit positive test charge, placed at that point, such that,

$\vec E = \dfrac{\vec F}{q}\\\therefore \vec F = q\vec E\\=(10.4\times 10^{-9})\times (148.0\ \hat i-110.0\ \hat j)\\=(1.539\times 10^{-6}\ \hat i-1.144\times 10^{-6}\ \hat j)\ N.$

Thus, the y-component of the electric force on this charge is $F_y = -1.144\times 10^{-6}\ N.$

3 0

3 years ago

During the Moment of Inertia experiment, a group of students decided to mount a solid sphere on the top of the horizontal disk.

bekas [8.4K]

Answer:

u are the very good person I know if u will do itself u will becam3 a rising star

8 0

3 years ago

A 5.00μF parallel-plate capacitor is connected to a 12.0 V battery. After the capacitor is fully charged, the battery is disconn

EastWind [94]

(a) 12.0 V

In this problem, the capacitor is connected to the 12.0 V, until it is fully charged. Considering the capacity of the capacitor, $C=5.00 \mu F$ , the charged stored on the capacitor at the end of the process is

$Q=CV=(5.00 \mu F)(12.0 V)=60 \mu C$

When the battery is disconnected, the charge on the capacitor remains unchanged. But the capacitance, C, also remains unchanged, since it only depends on the properties of the capacitor (area and distance between the plates), which do not change. Therefore, given the relationship

$V=\frac{Q}{C}$

and since neither Q nor C change, the voltage V remains the same, 12.0 V.

(b) (i) 24.0 V

In this case, the plate separation is doubled. Let's remind the formula for the capacitance of a parallel-plate capacitor:

$C=\frac{\epsilon_0 \epsilon_r A}{d}$

where:

$\epsilon_0$ is the permittivity of free space

$\epsilon_r$ is the relative permittivity of the material inside the capacitor

A is the area of the plates

d is the separation between the plates

As we said, in this case the plate separation is doubled: d'=2d. This means that the capacitance is halved: $C'=\frac{C}{2}$ . The new voltage across the plate is given by
