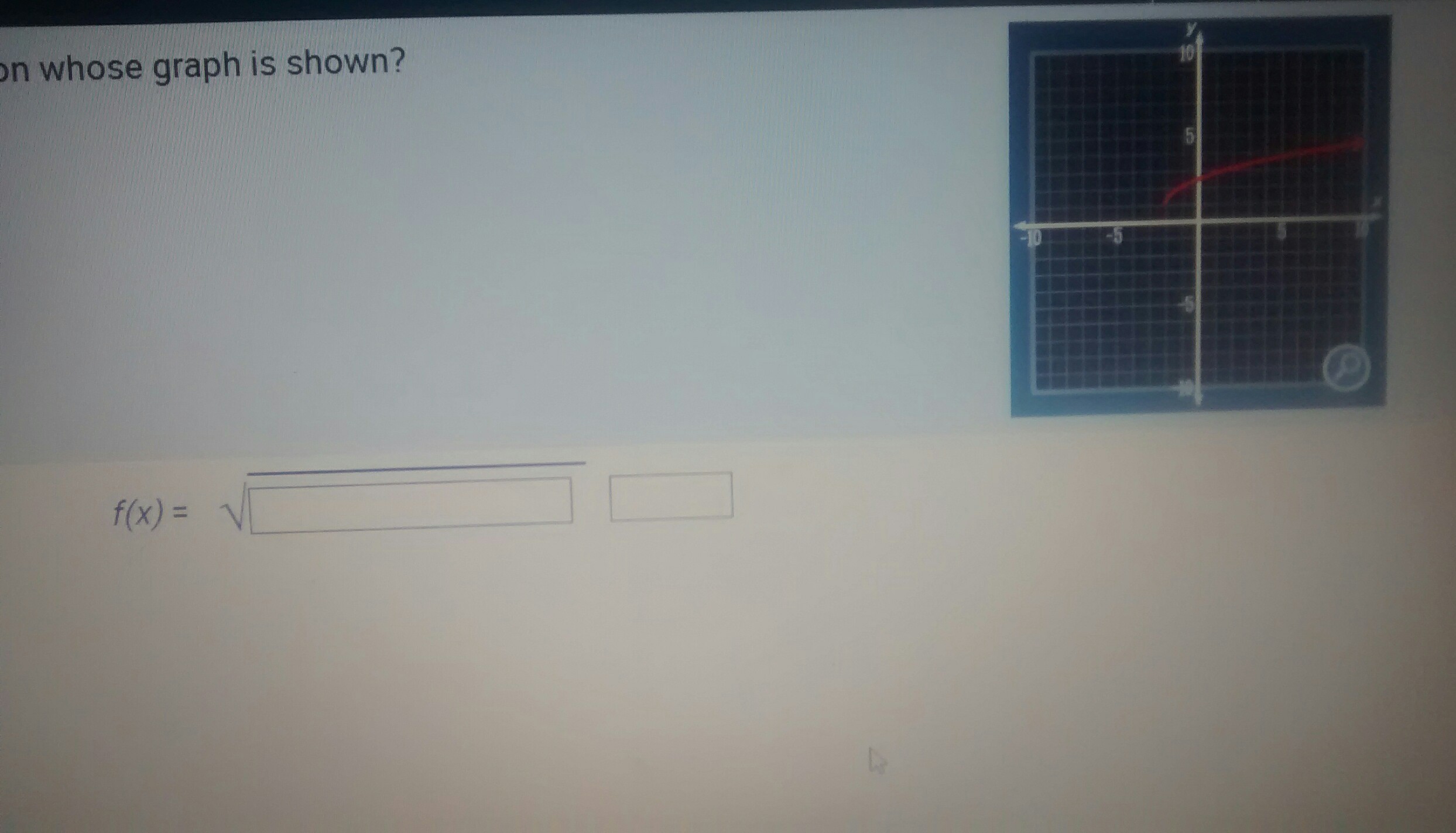

What is the rule for the function whose graph is shown?

Mathematics

1 answer:

lara31 [8.8K]4 years ago

4 0

The curve can be described by
$y= \sqrt{x+2} +1$

You might be interested in

Simplify the expression: (3 − 4i) + (7 − 6i).

andrew11 [14]

=10-10i
Explanation:
3-4i+7-6i
(Add 3 and 7)
(Add -4i and -6i)
Put together
10-10i

3 0

4 years ago

Read 2 more answers

A triangle has sides with lengths of 60 centimeters, 63 centimeters, and 87 centimeters. Is it a right triangle

lozanna [386]

We can check this by seeing if Pythagorean's theorem applies. The longest side is the hypotenuse, so let's see if this is true:
$60^2+63^2 = 87^2$
$7569 = 7569$

This is, indeed correct, thus, this is a right triangle.

5 0

3 years ago

Which graph represents the solution?

marusya05 [52]

Answer:

Step-by-step explanation:

Given the inequality :

v + 4 > 2 and 8v - 20 < 36

v + 4 > 2

v > 2 - 4

V > - 2

8v - 20 < 36

8v < 36 + 20

8v < 56

v < 56/8

v < 7

Hence,

v > - 2 and v < 7

-2 < v < 7

7 0

3 years ago

A box designer has been charged with the task of determining the surface area of various open boxes (no lid) that can be constru

Viktor [21]

Answer:

1) $S = 2\cdot w\cdot l - 8\cdot x^{2}$ , 2) The domain of S is $0 \leq x \leq \frac{\sqrt{w\cdot l}}{2}$ . The range of S is $0 \leq S \leq 2\cdot w \cdot l$ , 3) $S = 176\,in^{2}$ , 4) $x \approx 4.528\,in$ , 5) $S = 164.830\,in^{2}$

Step-by-step explanation:

1) The function of the box is:

$S = 2\cdot (w - 2\cdot x)\cdot x + 2\cdot (l-2\cdot x)\cdot x +(w-2\cdot x)\cdot (l-2\cdot x)$

$S = 2\cdot w\cdot x - 4\cdot x^{2} + 2\cdot l\cdot x - 4\cdot x^{2} + w\cdot l -2\cdot (l + w)\cdot x + l\cdot w$

$S = 2\cdot (w+l)\cdot x - 8\cdpt x^{2} + 2\cdot w \cdot l - 2\cdot (l+w)\cdot x$

$S = 2\cdot w\cdot l - 8\cdot x^{2}$

2) The maximum cutout is:

$2\cdot w \cdot l - 8\cdot x^{2} = 0$

$w\cdot l - 4\cdot x^{2} = 0$

$4\cdot x^{2} = w\cdot l$

$x = \frac{\sqrt{w\cdot l}}{2}$

The domain of S is $0 \leq x \leq \frac{\sqrt{w\cdot l}}{2}$ . The range of S is $0 \leq S \leq 2\cdot w \cdot l$

3) The surface area when a 1'' x 1'' square is cut out is:

$S = 2\cdot (8\,in)\cdot (11.5\,in)-8\cdot (1\,in)^{2}$

$S = 176\,in^{2}$

4) The size is found by solving the following second-order polynomial:

$20\,in^{2} = 2 \cdot (8\,in)\cdot (11.5\,in)-8\cdot x^{2}$

$20\,in^{2} = 184\,in^{2} - 8\cdot x^{2}$

$8\cdot x^{2} - 164\,in^{2} = 0$

$x \approx 4.528\,in$

5) The equation of the box volume is:

$V = (w-2\cdot x)\cdot (l-2\cdot x) \cdot x$

$V = [w\cdot l -2\cdot (w+l)\cdot x + 4\cdot x^{2}]\cdot x$

$V = w\cdot l \cdot x - 2\cdot (w+l)\cdot x^{2} + 4\cdot x^{3}$

$V = (8\,in)\cdot (11.5\,in)\cdot x - 2\cdot (19.5\,in)\cdot x^{2} + 4\cdot x^{3}$

$V = (92\,in^{2})\cdot x - (39\,in)\cdot x^{2} + 4\cdot x^{3}$

The first derivative of the function is:

$V' = 92\,in^{2} - (78\,in)\cdot x + 12\cdot x^{2}$

The critical points are determined by equalizing the derivative to zero:

$12\cdot x^{2}-(78\,in)\cdot x + 92\,in^{2} = 0$

$x_{1} \approx 4.952\,in$

$x_{2}\approx 1.548\,in$

The second derivative is found afterwards:

$V'' = 24\cdot x - 78\,in$

After evaluating each critical point, it follows that $x_{1}$ is an absolute minimum and $x_{2}$ is an absolute maximum. Hence, the value of the cutoff so that volume is maximized is:
