abruzzese [7]
3 years ago
15

A cylinder in space is of uniform temperature and dissipates 100 Watts. The cylinder diameter is 3" and its height is 12". Assum

e the external surface of the cylinder is covered with Chemglaze Z306 black paint. What temperature does it reach

Engineering
1 answer:
Gnesinka [82]3 years ago
7 0

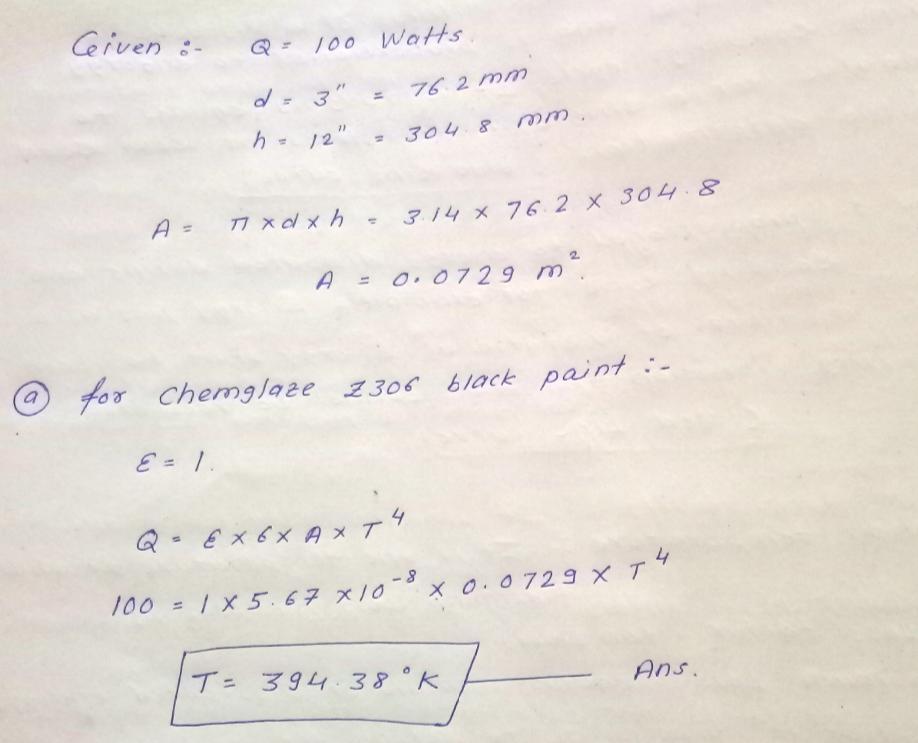

Answer:

T= 394.38 K

Explanation:

The solution and complete explanation for the above question and mentioned conditions is given below in the attached document.i hope my explanation will help you in understanding this particular question.

You might be interested in
The electric motor exerts a torque of 800 N·m on the steel shaft ABCD when it is rotating at a constant speed. Design specificat
kodGreya [7K]

Answer:

d= 4.079m ≈ 4.1m

Explanation:

calculate the shaft diameter from the torque,    \frac{τ}{r} = \frac{T}{J} = \frac{C . ∅}{l}

Where, τ = Torsional stress induced at the outer surface of the shaft (Maximum Shear stress).

r = Radius of the shaft.

T = Twisting Moment or Torque.

J = Polar moment of inertia.

C = Modulus of rigidity for the shaft material.

l = Length of the shaft.

θ = Angle of twist in radians on a length.

Maximum Torque, ζ= τ ×  \frac{ π}{16} × d³

τ= 60 MPa

ζ= 800 N·m

800 = 60 ×  \frac{ π}{16} × d³

800= 11.78 ×  d³

d³= 800 ÷ 11.78

d³= 67.9

d= \sqrt[3]{} 67.9

d= 4.079m ≈ 4.1m

3 0
3 years ago
Read 2 more answers
The nuclear reactions resulting from thermal neutron absorption in boron and cadmium are 10B5 + 1 n0 ï  7Li3 + 4He2 113Cd48 + 1
kirill115 [55]

Solution :

The nuclear reaction for boron is given as :

$^{10}\textrm{B}_5 + ^{1}\textrm{n}_0 \rightarrow ^{7}\textrm{Li}_3 + ^{4}\textrm{He}_2$

And the reaction for Cadmium is :

$^{113}\textrm{Cd}_48 + ^{1}\textrm{n}_0 \rightarrow ^{114}\textrm{Cd}_48 + \gamma [5 \ \textrm{MeV}]$

We know that it is easier that to shield or stop an alpha particle (i.e. He nucli) as they can be stopped or obstructed by only a few centimetres of the material. However, the gamma rays ( γ ) can penetrate through the material to a greater distance. Therefore, we can choose the first one.

6 0
3 years ago
Ignorance: noun
jarptica [38.1K]

Answer:

A: the condition of living without the benefit of education at some level

Explanation:

As a noun, ignorance is simply defined as the lack of knowledge about a common thing.

For example, he was ignorant about the schemes of his colleagues at the office.

Thus, from the given options, the correct answer is: "the condition of living without the benefit of education at some level".

3 0
3 years ago
Steam enters a well-insulated turbine operating at steady state at 4 MPa with a specific enthalpy of 3015.4 kJ/kg and a velocity
Sedbober [7]

Answer:

attached below

Explanation:

6 0
4 years ago
Given an integer k, a set C of n cities c1, . . . , cn, and the distances between these cities dij = d(ci , cj ), for 1 ⤠i &lt
Snezhnost [94]

Answer:

See explaination

Explanation:

2-Approximation Algorithm

Step 1: Choose any one city from the given set of cities C arbitrarily and put it in to a set H which is initially empty.

Step 2: For every city c in set C that is currently not present in set H compute min_distc = Minimum[ d(c, c1), d(c, c2), d(c, c3), ..... . . . . d(c, ci) ]

where c1, c2, ... ci are the cities in set H

and d(x, y) is the euclidean distance between city x and city y

Step 3: H = H ∪ {cx} where cx is the city have maximum value of min_dist over all possible cities c, computed in Step-2.

Step 4: Step-2 and Step-3 are iterated for k-1 times so that k cities are included int set H.

The set H is the required set of cities.

Example

Assume:-

C = {0, 1, 2, 3}

d(0,1) = 10, d(0,2) = 7, d(0,3) = 6, d(1,2) = 8, d(1,3) = 5, d(2,3) = 12

k = 3

Solution:-

Initially H = { }

Step-1: H = {0}

Step-2: Cities c \not\in H are {1, 2, 3}

min_dist1 = min{dist(0,1)} = min{10} = 10

min_dist2 = min{dist(0,2)} = min{7} = 7

min_dist3 = min{dist(0,3)} = min{6} = 6

Step-3: Max{10, 7, 6} = 10

Step-4: cx = 1

Step-5: H = H ∪ cx = {0} \cup {1} = {0, 1}

Step-6: Cities c \not\in H are {2, 3}

min_dist2 = min{dist(0,2), dist(1,2)} = min{7, 8} = 7

min_dist3 = min{dist(0,3), dist(1,3)} = min{6, 5} = 5

Step-7: Max{7, 5} = 7

Step-8: cx = 2

Step-9: H = H \cup cx = {0, 1} \cup {2} = {0, 1, 2}

Result: The set H is {0, 1, 2}.

6 0
3 years ago
