Question

A four-cylinder, four-stroke, 1.8-L modern high-speed compression-ignition engine operates on the ideal dual cycle with a compression ratio of 16. The air is at 95 kPa and 70°C at the beginning of the compression process, and the engine speed is 2050 rpm. Equal amounts of fuel are burned at constant volume and at constant pressure. The maximum allowable pressure in the cycle is 7.5 MPa due to material strength limitations. Use constant specific heats at 1000 K. The properties of air at 1000 K are cp = 1.142 kJ/kg·K, cv = 0.855 kJ/kg·K, R = 0.287 kJ/kg·K, and k = 1.336.

Answer 1

Answer:

net power = 108.89kw

Explanation:

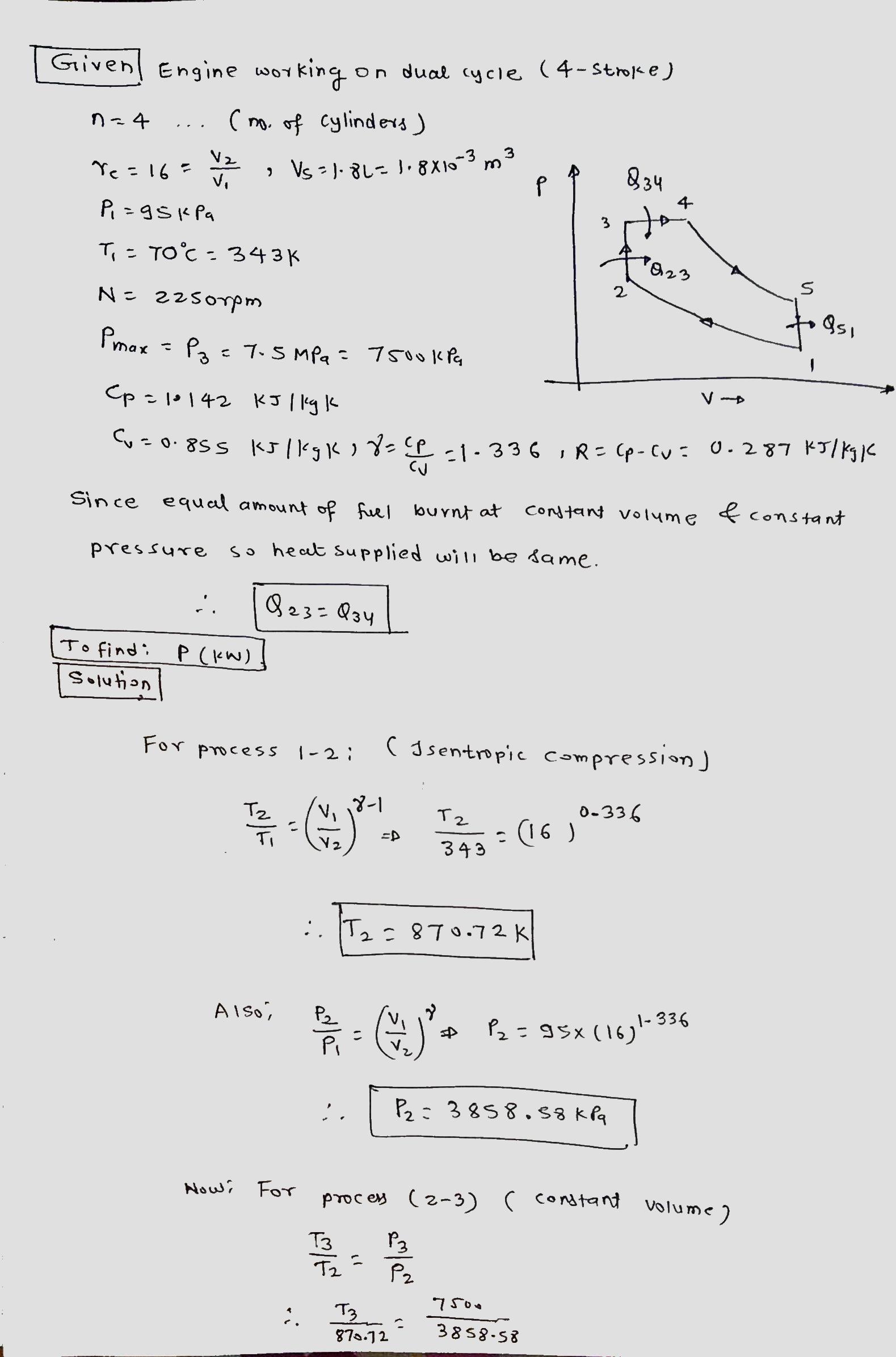

check the attachment for explicit explanation.
