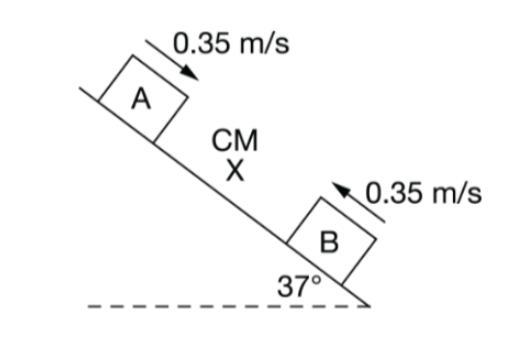

Figure 3
1 answer:
Answer:
3.92 N (straight down)
2.36 N (down, parallel to the plane)
Explanation:
The only force acting on the system is apparently that due to gravity. The mass of the system is the sum of the masses of the blocks, so is ...
0.20 kg + 0.20 kg = 0.40 kg
The force due to gravity is given by ...
F = ma = (0.40 kg)(9.8 m/s²) = 3.92 N . . . (straight down)
That force is acting straight down, so is at an angle with respect to the direction the blocks are constrained to move.
The force down the plane is (3.92 N)·sin(37°) ≈ 2.359 N . . . (down the plane)
_____
<em>Comment on the answer</em>
We have given two answers to the question, because in this frictionless system, the force acting normal to the plane of motion is irrelevant to the system dynamics. The question asked for the net force on the system, which is the force due to gravity, so we have given that magnitude also.
