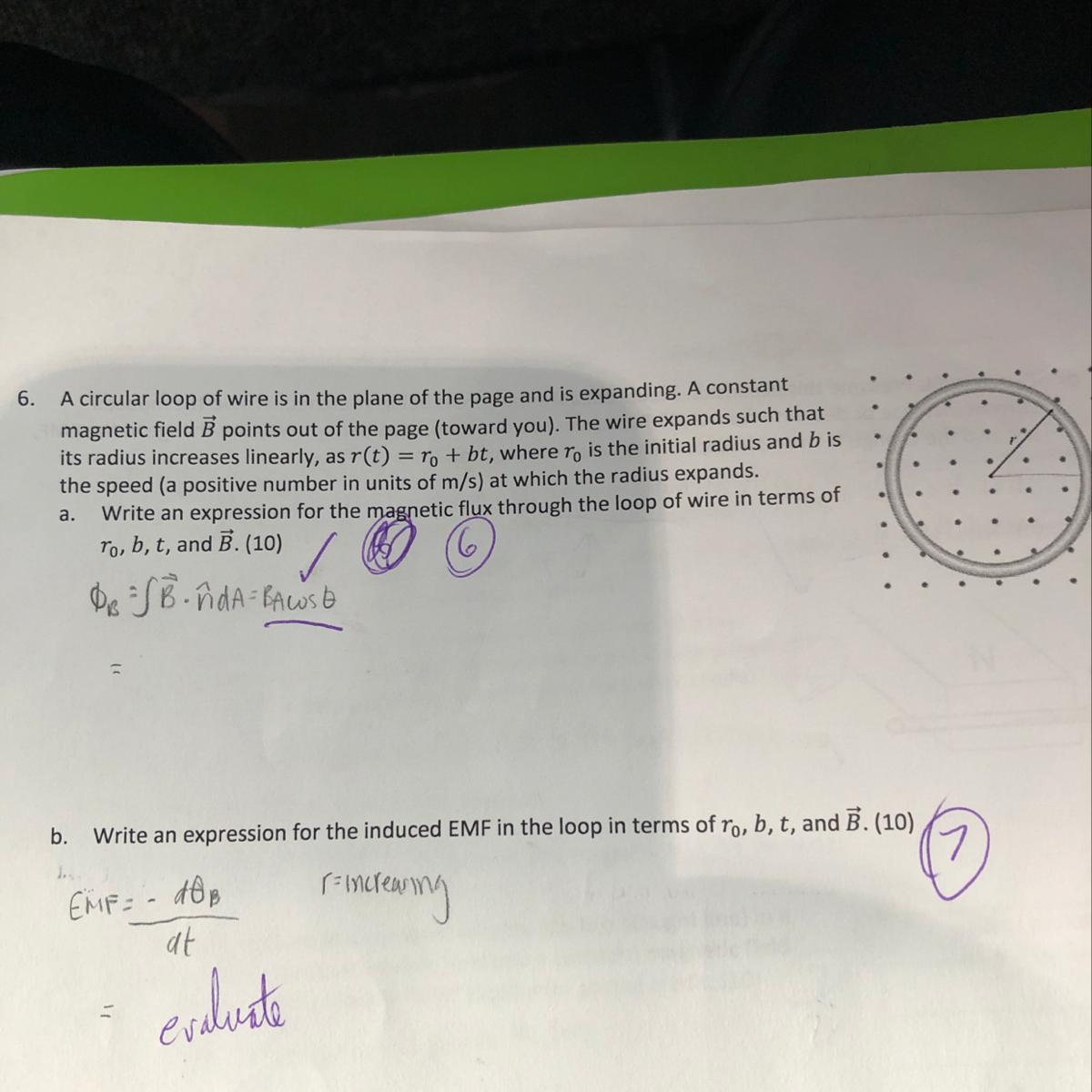

I Need Help With This

Physics
2 answers:
timama [110]3 years ago
5 0

use the equations provided it shouldn't he hard

denpristay [2]3 years ago
4 0

The flux is directly proportional to the area of the loop. You don't need the cos theta part in your formula since we are told the magnetic field is perpendicular to the area of the loop. The area is that of a circle, and it is a function of time:

\Phi_B = BA= B\pi r^2(t)=B\pi(r_0+bt)^2

The last form answers 6a.

The induced electromotive force (EMF) is the negative change of the flux, so you can use a derivative to answer the question 6b:

EMF=-\frac{d\Phi_b}{dt}=\frac{d}{dt}[-(B\pi(r_0+bt)^2]=-2B\pi b(r_0+bt)

(b is treated as a constant, so there is no need to differentiate it). As you can see, the EMF is linear in time, and quadratic in b.

You might be interested in
The engine in your car is sometimes called: A. A 2-stroke engine
Juli2301 [7.4K]

Answer:A

Explanation:

Engines in car are 4 stroke engine . A 4-stroke engine is internal combustion engine which derives its power by four piston strokes . Internal combustion means combustion takes inside the engine i.e. is in cylinder.

There are process in 4 stroke engine

  • Intake: Intake of air
  • Compression:compression of intake air to a high pressure
  • Combustion:Fuel is injected and burned to get power
  • Exhaust:removal of exhaust gases after combustion
7 0
3 years ago
Which is NOT something that all green plants have in common?
Anvisha [2.4K]

Answer:

Number 4

Explanation:

7 0
3 years ago
Read 2 more answers
Two 800 cm^3 containers hold identical amounts of a monatomic gas at 20°C. Container A is rigid. Container B has a 100 cm^2 pis
Vikki [24]

Answer:

1) Final Temperature of the gas in A will be GREATER than the temperature in B

2) Diagram of both processes on a single PV has been uploaded below

3) The Initial  pressures in containers A and B is 3039.87 J/liters

4) the final volume of container B is 923.36 cm³

Explanation:

Given that;

Temperature = 20°C = 293 K

mass of piston = 10 kg

Area = 100cm³

Volume V = 800 cm³ = 0.8 L

ideal gas constant R = 8.3 J/K·mol

1)

Final Temperature of the gas in A will b GREATER than the temperature in B

2)

Diagram of both processes on a single PV has been uploaded below,

3)

Initial  pressures in containers A and B

PV = nRT

P = RT/V

we substitute

P = (8.3 × 293) /  0.8

P = 2431.9 / 0.8

P = 3039.87 J/liters

Therefore, The Initial  pressures in containers A and B is 3039.87 J/liters

4)

Given that;

power = 25 W

time t = 15s

the final volume of container B = ?

we know that;

work done = power × time

work done = 25 × 15 = 375

Also work done = P( V₂ - V₁ )

so we substitute

375 = 3039.87 ( V₂ - 0.8 )

( V₂ - 0.8 ) = 375 / 3039.87

V₂ - 0.8 = 0.12336

V₂ = 0.12336 + 0.8

V₂ = 0.92336 Litres

V₂ = 923.36 cm³

Therefore, the final volume of container B is 923.36 cm³

7 0
3 years ago
Positive electric charge Q is distributed uniformly throughout the volume of an insulating sphere with radius R.From the express
AlladinOne [14]

Answer:

Vb = k Q / r        r <R

Vb = k q / R³ (R² - r²)    r >R

Explanation:

The electic potential is defined by

             ΔV = - ∫ E .ds

We calculate the potential in the line of the electric pipe, therefore the scalar product reduces the algebraic product

             VB - VA = - ∫ E dr

Let's substitute every equation they give us and we find out

r> R

           Va = - ∫ (k Q / r²) dr

           -Va = - k Q (- 1 / r)

We evaluate with it Va = 0 for r = infinity

          Vb = k Q / r        r <R



We perform the calculation of the power with the expression of the electric field that they give us

           Vb = - int (kQ / R3 r) dr

  We integrate and evaluate from the starting point r = R to the final point r <R

         Vb = ∫kq / R³ r dr

         Vb = k q / R³ (R² - r²)

This is the electric field in the whole space, the places of interest are r = 0, r = R and r = infinity

8 0
4 years ago
which symbol in the first law of thermpdynamics represents energy that moves from a hot object to a cooler object?
Marysya12 [62]
The triangle <span>in the first law of thermodynamics, represents energy that moves from a hot object to a cooler object.</span>
4 0
3 years ago
