The uniform beam is supported by two rods AB and CD that have crosssectional areas of 10 mm2 and 15 mm2 , respectively. Determin

e the intensity w of the distributed load so that the average normal stress in each rod does not exceed 300 kPa.

1 answer:

ddd [48]3 years ago

6 0

Answer:

w=2.25

Explanation:

It is necessary to determine the maximum w so that the normal stress in the AB and CD rods does not exceed the permitted normal stress.

The surface of the cross-section of the stapes was determined:

A_ab= 10 mm^2

A-cd= 15 mm^2

The maximum load is determined from the condition that the normal stresses is not higher than the permitted normal stress σ_allow.

σ_ab = F_ab/A_ab $\leq$ σ_allow

σ_cd = F_cd/A_cd $\leq$ σ_allow

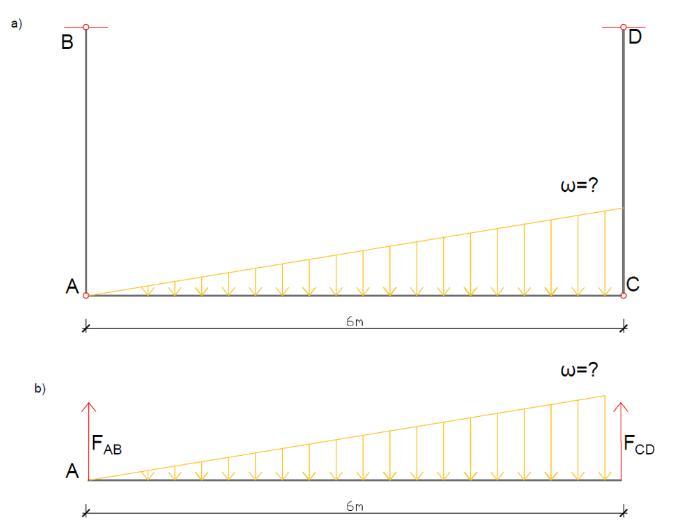

In the next step we will determine the static size: Picture b).

We apply the conditions of equilibrium:

∑F_x=0

∑F_y=0

∑M=0

∑M_a=0 ==> -w*6*0.5*6*0.75*F_cd*6 =0

==> F_cd = 2*w*k*N

∑F_y=0 ==> F_cd+F_ab - 6*w*0.5 ==>2*w+F_ab -6*w*0.5 =0

==> F_ab = w*k*N

Now we determine the load w

<u>Sector AB: </u>

σ_ab = F_ab/A_ab $\leq$ σ_allow=300 KPa

= w/10*10^-6 $\leq$ σ_allow=300 KPa

w_ab = 3*10^-3 kN/m

<u>Sector CD: </u>

σ_cd = F_cd/A_cd $\leq$ σ_allow=300 KPa

= 2*w/15*10^-6 $\leq$ σ_allow=300 KPa

w_cd = 2.25*10^-3 kN/m

w=min{w_ab;w_cd} ==> w=min{3*10^-3;2.25*10^-3}

==> w=2.25 * 10^-3 kN/m

<u>The solution is: </u>

w=2.25 N/m

note:

find the attached graph

You might be interested in

Define, in words the following i relative humidity ii) dew point temperature

defon

Explanation:

i) When we divide water vapor's partial pressure by the water's equilibrium vapor pressure at a given temperature we get relative humidity.

It is denoted by ∅

$\phi ={\frac {p_ {H_{2}O} }{p_{H_{2}O} ^{*}}}$

ii) When air is cooled so that it becomes saturated with water vapor the temperature where this occurs is called the dew point.

7 0

3 years ago

function summedValue = SummationWithLoop(userNum) % Summation of all values from 1 to userNum summedValue = 0; i = 1; % Write a

Alexeev081 [22]

Answer:

function summedValue = SummationWithLoop(userNum)

% Summation of all values from 1 to userNum

summedValue = 0;

i = 0;

% use a while loop that assigns summedValue with the

% sum of all values from 1 to userNum

while(i <= userNum)

summedValue = summedValue + i;

i = i + 1;

end

end

8 0

3 years ago

Compute the volume percent of graphite, VGr, in a 2.5 wt% C cast iron, assuming that all the carbon exists as the graphite phase

ludmilkaskok [199]

Answer:

The volume percent of graphite is 91.906 per cent.

Explanation:

The volume percent of graphite ( $\% V_{Gr}$ ) is determined by the following expression:

$\%V_{Gr} = \frac{V_{Gr}}{V_{Gr}+V_{Fe}} \times 100\,\%$

$\%V_{Gr} = \frac{1}{1+\frac{V_{Gr}}{V_{Fe}} }\times 100\,\%$

Where:

$V_{Gr}$ - Volume occupied by the graphite phase, measured in cubic centimeters.

$V_{Fe}$ - Volume occupied by the ferrite phase, measured in cubic centimeters.

The volume of each phase can be calculated in terms of its density and mass. That is:

$V_{Gr} = \frac{m_{Gr}}{\rho_{Gr}}$

$V_{Fe} = \frac{m_{Fe}}{\rho_{Fe}}$

Where:

$m_{Gr}$ , $m_{Fe}$ - Masses of the graphite and ferrite phases, measured in grams.

$\rho_{Gr}$ , $\rho_{Fe}$ - Densities of the graphite and ferrite phases, measured in grams per cubic centimeter.

Let substitute each volume in the definition of the volume percent of graphite:

$\%V_{Gr} = \frac{1}{1 +\frac{\frac{m_{Gr}}{\rho_{Gr}} }{\frac{m_{Fe}}{\rho_{Fe}} } } \times 100\,\%$

$\%V_{Gr} = \frac{1}{1+\left(\frac{m_{Gr}}{m_{Fe}} \right)\cdot \left(\frac{\rho_{Fe}}{\rho_{Gr}} \right)}\times 100\,\%$

Let suppose that 100 grams of cast iron are available, masses of each phase are now determined:

$m_{Gr} = \frac{2.5}{100}\times (100\,g)$

$m_{Gr} = 2.5\,g$

$m_{Fe} = 100\,g - 2.5\,g$

$m_{Fe} = 97.5\,g$

If $m_{Gr} = 2.5\,g$ , $m_{Fe} = 97.5\,g$ , $\rho_{Fe} = 7.9\,\frac{g}{cm^{3}}$ and $\rho_{Gr} = 2.3\,\frac{g}{cm^{3}}$ , the volume percent of graphite is:

$\%V_{Gr} = \frac{1}{1+\left(\frac{2.5\,gr}{97.5\,gr} \right)\cdot \left(\frac{7.9\,\frac{g}{cm^{3}} }{2.3\,\frac{g}{cm^{3}} } \right)} \times 100\,\%$

$\% V_{Gr} = 91.906\,\%$

The volume percent of graphite is 91.906 per cent.

6 0

3 years ago

How could the location of tests affect the performance of a catapult ?

Luba_88 [7]

Answer:

It could affect how far the projectile travels

Explanation:

Facing Uphill: Moves less far

Downhill: Moves further

3 0

3 years ago

Read 2 more answers

Differentiate between isohyetal method and arithmetical average method of rainfall

prohojiy [21]

Answer:

Explained below

Explanation:

The isohyetal method is one used in estimating Rainfall whereby the mean precipitation across an area is gotten by drawing lines that have equal precipitation. This is done by the use of topographic and other data to yield reliable estimates.

Whereas, the arithmetic method is used to calculate true precipitation by the way of getting the arithmetic mean of all the points or arial measurements that will be considered in the analysis.

7 0
