For the following dehydrohalogenation (E2) reaction, draw the Zaitsev product(s) resulting from elimination involving C3–C4 (i.e
., the carbon atoms depicted with stereobonds). Show the product stereochemistry clearly. If there is more than one organic product, both products may be drawn in the same box. Ignore elimination involving C3 and any carbon atom other than C4.
1 answer:
Answer:
2-methyl-butene
Explanation:

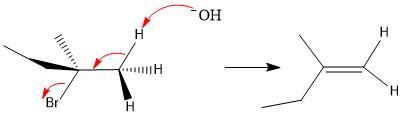

For the E2 mechanism, we have an <u>anti-elimination</u>. The Br leaves the molecule and the base removes the hydrogen in the anti position to form the double that's why only one structure is produced. (See figure 1)
Since we have 2 hydrogens on the right carbon, we cannot indicate a <u>specific stereoisomer</u>, in other words, it is not possible to assign a <u>Z or E</u> configuration for this alkene.
You might be interested in
The heat energy required to raise the temperature of 1500 g of aluminium pot by 100°C is 135 kJ.
The heat energy required to raise the temperature of 1500 g of copper pot by 100 °C is 57.75 kJ.
Explanation:
The heat energy required to raise the temperature of any body can be obtained from the specific heat formula. As this formula states that the heat energy required to raise the temperature of the body is directly proportional to the product of mass of the body, specific heat capacity of the material and temperature change experienced by the material.
So in this problem, the mass of the aluminium is given as m = 1500 g, the specific heat of the aluminium is 0.900 J/g °C. Then as it is stated that the temperature is raised by 100 °C, so the pots are heat to increase by 100 °C from its initial temperature. This means the difference in temperature will be 100°C (ΔT = 100°C).
Then, the heat energy required to raise the temperature will be
Thus, the heat energy required to raise the temperature of 1500 g of aluminium pot by 100 °C is 135 kJ.
Similarly, the mass of copper pot is given as 1500 g, the specific heat capacity of copper is 0.385 and the difference in temperature is 100 °C.
Then, the heat energy required to raise its temperature will be
And the heat energy required to raise the temperature of 1500 g of copper pot by 100°C is 57.75 kJ.
So, the heat energy required to raise the temperature of 1500 g of aluminium pot by 100°C is 135 kJ. And the heat energy required to raise the temperature of 1500 g of copper pot by 100 °C is 57.75 kJ.
