luda_lava [24]
3 years ago
5

A football player runs the pattern given in the drawing by the three displacement vectors , , and . The magnitudes of these vect

ors are A = 4.00 m, B = 13.0 m, and C = 19.0 m. Using the component method, find the (a) magnitude and (b)direction of the resultant vector + + . Take to be a positive angle.

Physics
1 answer:
CaHeK987 [17]3 years ago
4 0

Answer:

Explanation:

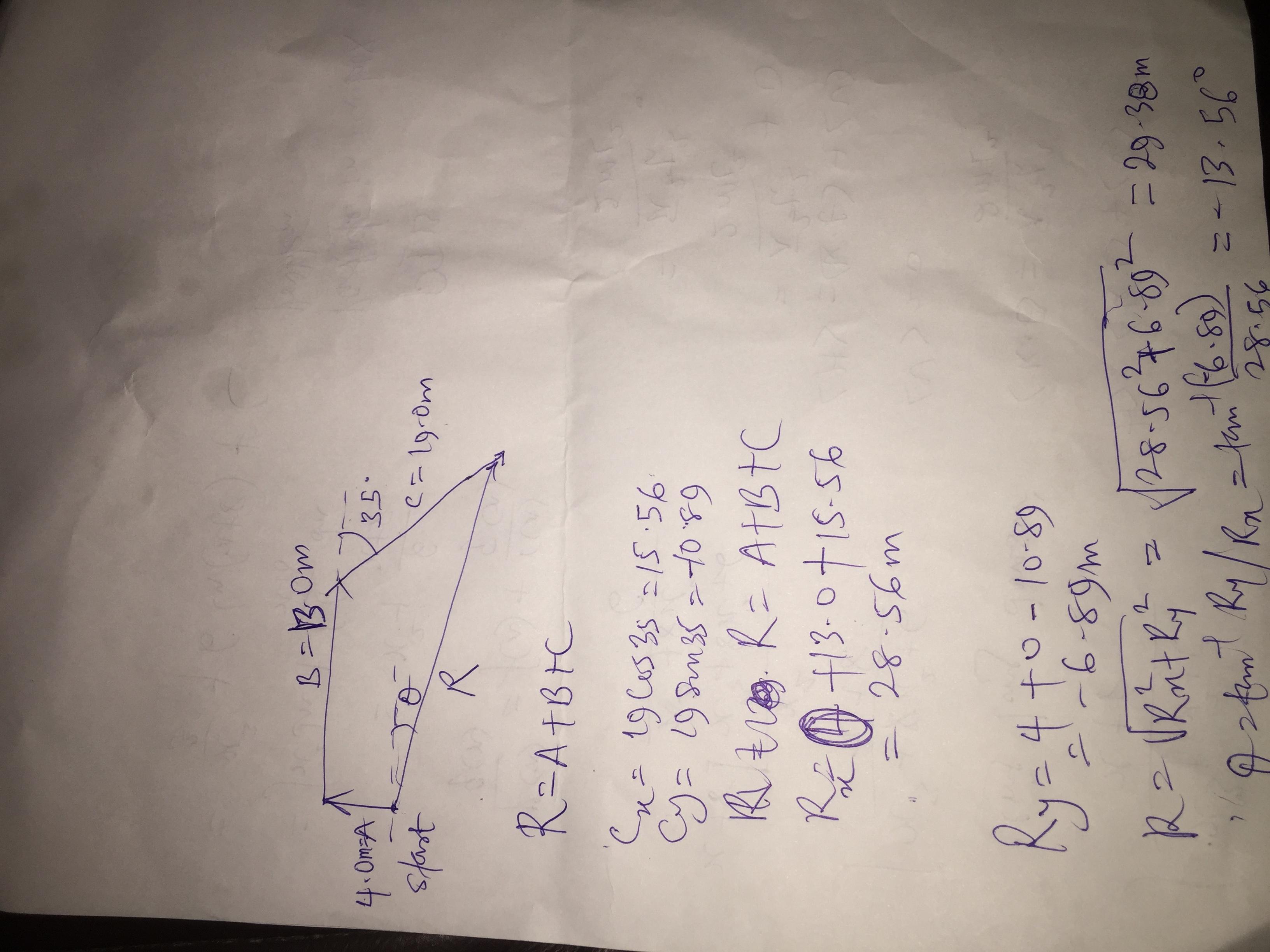

check the attached for the solution

You might be interested in
The tub of a washer goes into its spin-dry cycle, starting from rest and reaching an angular speed of 2.0 rev/s in 10.0 s. At th
Arte-miy333 [17]

Answer:

22 revolutions

Explanation:

2 rev/s = 2*(2π rad/rev) = 12.57 rad/s

The angular acceleration when it starting

\alpha_a = \frac{\Delta \omega}{\Delta t} = \frac{12.57}{10} = 1.257 rad/s^2

The angular acceleration when it stopping:

\alpha_o = \frac{\Delta \omega}{\Delta t} = \frac{-12.57}{12} = -1.05 rad/s^2

The angular distance it covers when starting from rest:

\omega^2 - 0^2 = 2\alpha_a\theta_a

\theta_a = \frac{\omega^2}{2\alpha_a} = \frac{12.57^2}{2*1.257} = 62.8 rad

The angular distance it covers when coming to complete stop:

0 - \omega^2 = 2\alpha_o\theta_o

\theta_o = \frac{-\omega^2}{2\alpha_o} = \frac{-12.57^2}{2*(-1.05)} = 75.4 rad

So the total angular distance it covers within 22 s is 62.8 + 75.4 = 138.23 rad or 138.23 / (2π) = 22 revolutions

6 0
3 years ago
If a person weighs 160 Newtons on Earth, what is their weight in pounds on Earth?
Levart [38]

Answer:

B. 36 lb

Explanation:

m = 160/9.8 = 16.3 kg

16.3 kg ( 2.205 lb/kg) = 36 lb

5 0
3 years ago
What is the symbol for angle?
zlopas [31]

Answer:

angle is denoted by /_ , see in explanation

4 0
4 years ago
What direction does centripetal acceleration point?
Nesterboy [21]

Answer:

Inward

Explanation:

As the centripetal force acts upon an object moving in a circle at constant speed, the force always acts inward as the velocity of the object is directed tangent to the circle. This would mean that the force is always directed perpendicular to the direction that the object is being displaced. hope this helps :)

3 0
3 years ago
What is the purpose of the antireflective coating on the glass layer of a solar
gizmo_the_mogwai [7]

Answer:

I think d. is the answer I'm not conform

3 0
3 years ago
