Question

A prototype of a part is to be fabricated using stereolithography. The part is shaped like a right triangle whose base = 36 mm, height 48mm, and thickness = 30 mm. In the stereolithography process, the layer thickness = 0.15 mm. Diameter of the laser beam spot = 0.40 mm, and the beam is moved across the surface of the photopolymer at a velocity of 2200 mm/s. Compute the minimum possible time (use units of hours, 3 significant figs) required to build the part, if 25 s are lost each layer to lower the height of the platform that holds the part. Neglect the time for setup and post-processing.

Answer 1

Answer:

1.443hrs

Explanation:

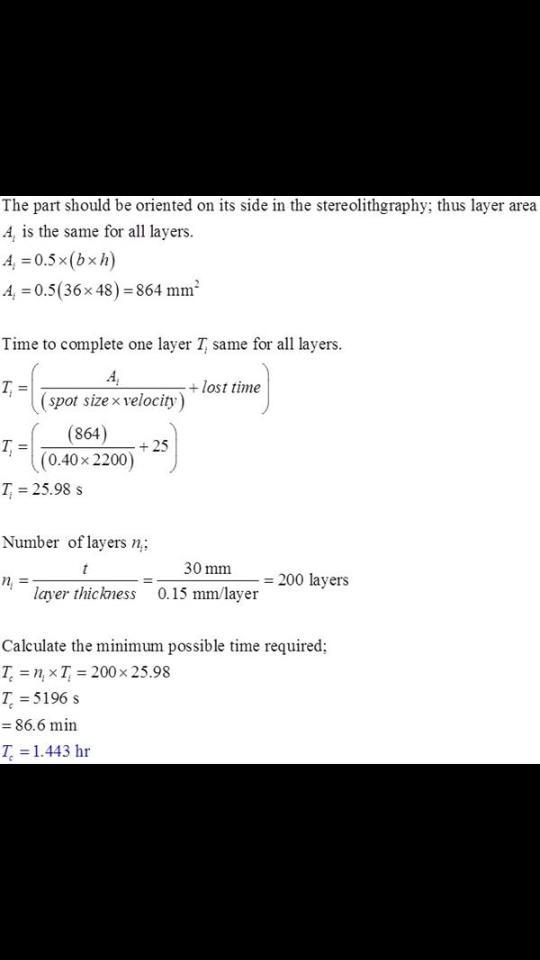

Please kindly check attachment for the detailed and step by step solution to the problem.
