Question

Graph the solution for the following linear inequality system. Click on the graph until the final result is displayed. y ≥ 0 y &lt; x x + y < 6

Answer 1

Answer:

  see below

Step-by-step explanation:

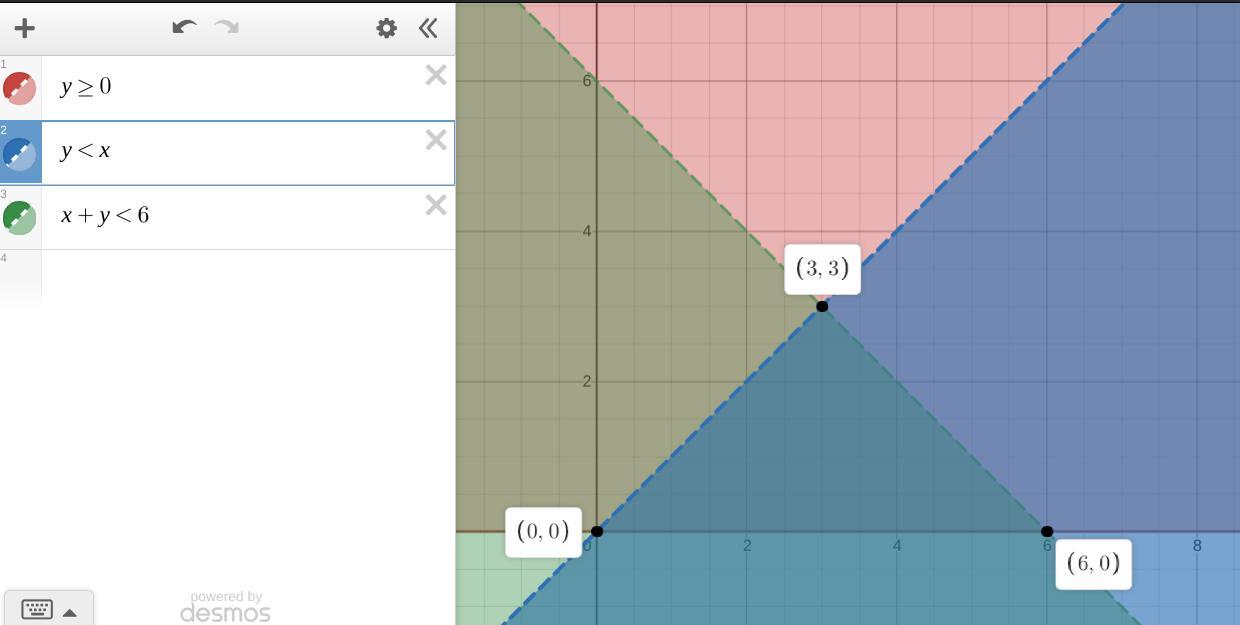

The graph of the first inequality is the half-plane above and including the x-axs.

The graph of the second inequality will be the half-plane below the dashed line y = x.

The graph of the third inequality will be the half-plane below the dashed line y = 6 -x.

So, the solution space will be a triangle above the x-axis and below the two (dashed) lines that cross at (x, y) = (3, 3).
