Answer:
Throat diameter =28.60 mm
Explanation:
Bore diameter ⇒
Manometric deflection x=235 mm
Flow rate Q=240 Lt/min⇒ Q=.004
Coefficient of discharge =0.8
We know that discharge through venturi meter
=13.6 for Hg and
=1 for water.
h=2.961 m
Now by putting the all value in
⇒=28.60 mm
So throat diameter =28.60 mm
Answer:
A. 288,030.91 cy
B. The amount of water that must be removed from the natural material is 483541.04254 gallons of water
Explanation:
The natural material in the barrow properties are;
The mass unit weight, γ = 110.0 pcf
The water content, w = 6%
The specific gravity of the soil solids, = 2.63
The desired dry unit weight, = 122 pcf
The water content, w₁ = 5.5 %
The net section volume, = 245,000 cy = 6,615,000 ft³
A. =
/
∴ =
×
= 6,615,000 ft³ × 122 lb/ft³ = 807030000 lbs
w = (/
) × 100
∴ = (w/100) ×
= (6/100) × 807030000 lbs = 48421800 lbs
The weight of solids
W = +
= 807030000 lbs + 48421800 lbs = 855451800 lbs
V = W/γ = 855451800 lbs/(110.0 lb/ft.³) = 7776834.54545 ft.³ = 288,030.91 cy
V = 288,030.91 cy
The amount of cubic yards of borrow required = 288,030.91 cy
B. The volume of water in the required soil is found as follows;
= (w₁/100) ×
= (5.5/100) × 807030000 lbs = 44386650 lbs
The amount of water that must be added = -
= 44386650 lbs - 48421800 lbs = -4,035,150 lbs
Therefore, 4,035,150 lbs of water must be removed
The density of water, ρ = 8.345 lbs/gal
Therefore, V = 4,035,150 lbs/(8.345 lbs/gal) = 483541.04254 gal of water must be removed from the natural material
Answer:
See explaination
Explanation:
By definition, we can say that Magnetic flux density is defined as the amount of magnetic flux in an area taken perpendicular to the magnetic flux's direction. An example of magnetic flux density is a measurement taken in teslas.

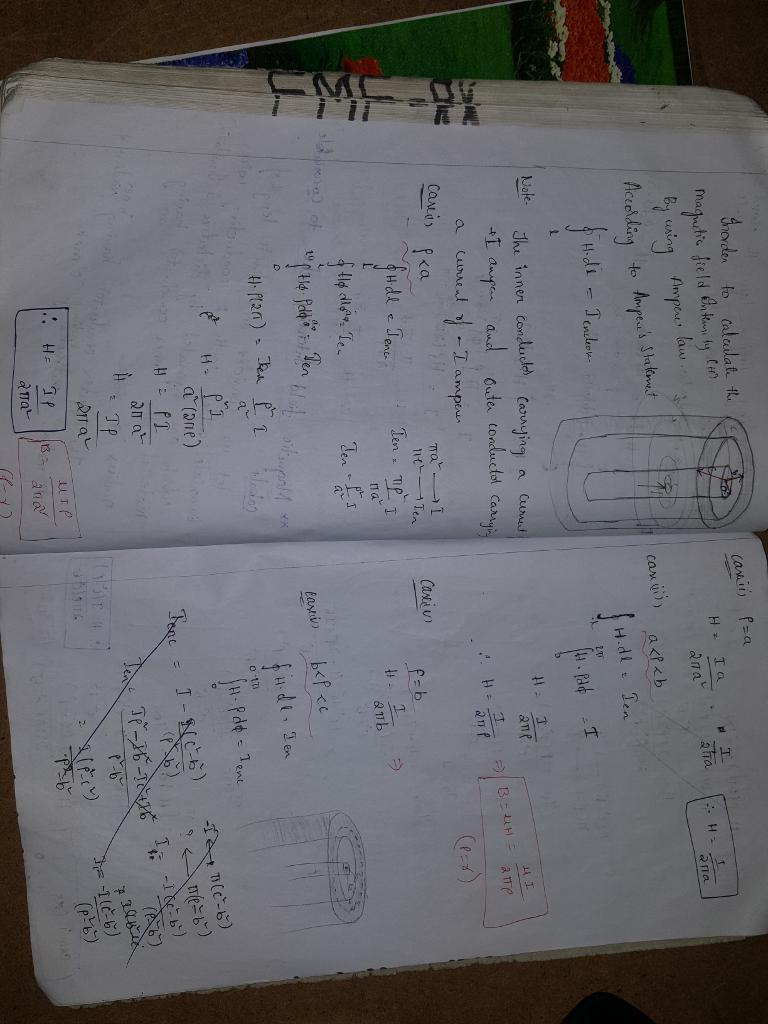

Please kindly check attachment for the step by step solution of the given problem.
