Question

Alex is asked to move two boxes of books in contact with each other and resting on a frictionless floor. He decides to move them at the same time by pushing on box A with a horizontal pushing force F p = 7.7 N. Here box A has a mass mA = 12.1 kg and box B has a mass mB = 7.0 kg. The contact force between the two boxes is F c and N denotes the normal force.

Answer 1

Answer:

2.8 N

Explanation:

Fp = 7.7 N

mA = 12.1 kg

mB = 7 kg

Let a be the acceleration and Fc be the contact force between A and B.

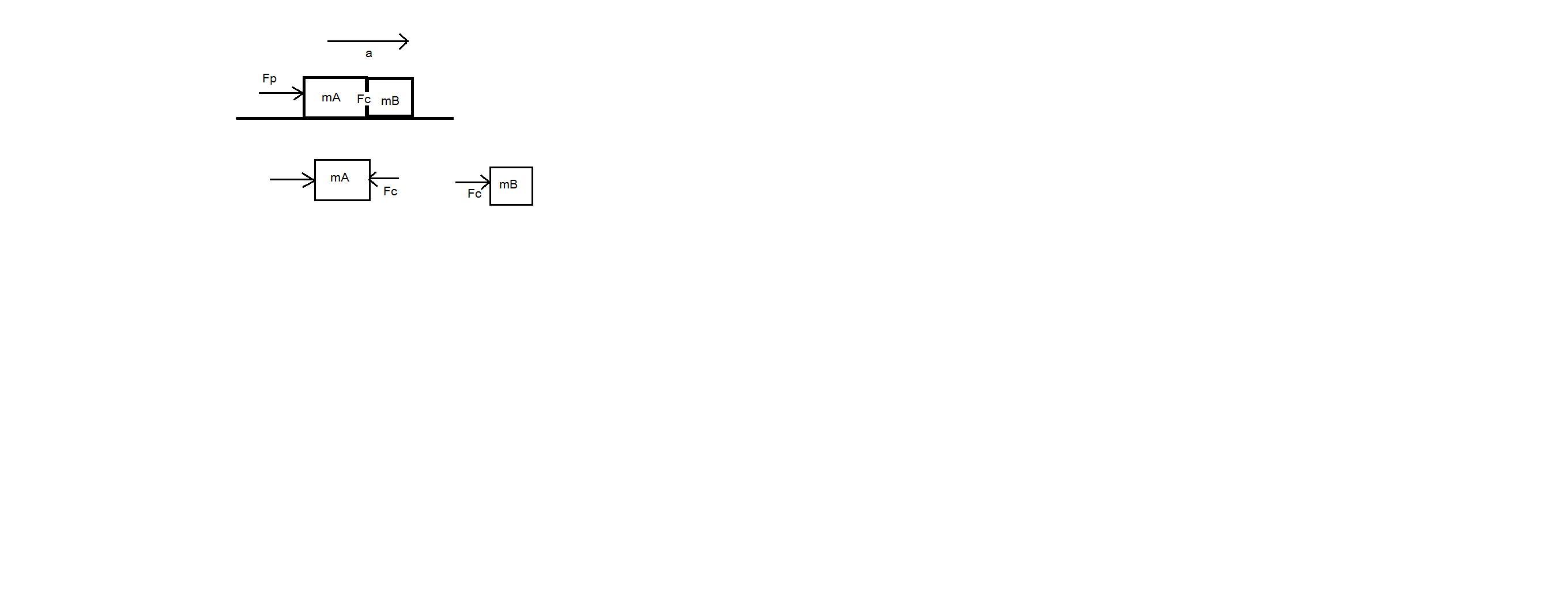

By the free body diagram, use Newton's second law

Fp - Fc = mA x a ..... (1)

Fc = mB x a ..... (2)

Adding both the equations

Fp = (mA + mB) x a

7.7 = (12.1 + 7) x a

a = 0.4 m/s^2

Substitute this value in equation (2), we get

Fc = 7 x 0.4 = 2.8 N

Thus, the contact force between the two blocks is 2.8 N.
