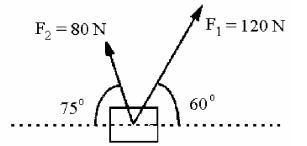

Two forces are acting on an object as shown in Fig. on the right. What is the magnitude of the resultant force?

Physics

1 answer:

svetlana [45]3 years ago

8 0

Answer:

185 N

Explanation:

Sum of forces in the x direction:

Fₓ = -(80 N cos 75°) + (120 N cos 60°)

Fₓ = 39.3 N

Sum of forces in the y direction:

Fᵧ = (80 N sin 75°) + (120 N sin 60°)

Fᵧ = 181.2 N

The magnitude of the net force is:

F = √(Fₓ² + Fᵧ²)

F = √((39.3 N)² + (181.2 N)²)

F = 185 N

You might be interested in

A bird accelerating from rest at a constant rate,experiences a displacement of 28 m in 11s.What is its acceleration

Ksenya-84 [330]

Use the formula below for this question:

$v_{f} = v_{i} + 2 * a * d$

re-arrange to solve for a:

$a = \frac{v_{f} - v_{i}}{2 * d}$

now simply plug in your variables and there's your answer :). If you ever get stuck, you can look up the kinematic equations!

4 0

3 years ago

A uniform rod of length L is pivoted at L/4 from one end. It is pulled to one side through a very small angle and allowed to osc

ludmilkaskok [199]

Answer:

T= 4.24sec

Explanation:

We are going to use the formula below to calculate.

$T=2\pi \sqrt{\frac{L}{g} }$

Where T is period

L is length of rod

g is acceleration due to gravity = $9.8m/s^{2}$

From the problem, the rod is pivoted at 1/4L which means that three quarter of the rod was used for the oscillation. lets call this $L_{O}$

$L_{O} = 3/4 * 5.95m$

= 4.4625m

thus $T=2\pi \sqrt{\frac{L_{O} }{g} }$

$T=2\pi \sqrt{\frac{4.4625 }{9.8} }$

T= 4.24sec

8 0

4 years ago

Several springs are connected as illustrated below in (a). Knowing the individual springs stiffness k1 = 20 N/m, k2 = 30 N/m, k3

Hatshy [7]

Answer:

The equivalent stiffness of the string is 8.93 N/m.

Explanation:

Given that,

Spring stiffness is

$k_{1}=20\ N/m$

$k_{2}=30\ N/m$

$k_{3}=15\ N/m$

$k_{4}=20\ N/m$

$k_{5}=35\ N/m$

According to figure,

$k_{2}$ and $k_{3}$ is in series

We need to calculate the equivalent

Using formula for series

$\dfrac{1}{k}=\dfrac{1}{k_{2}}+\dfrac{1}{k_{3}}$

$k=\dfrac{k_{2}k_{3}}{k_{2}+k_{3}}$

Put the value into the formula

$k=\dfrac{30\times15}{30+15}$

$k=10\ N/m$

k and $k_{4}$ is in parallel

We need to calculate the k'

Using formula for parallel

$k'=k+k_{4}$

Put the value into the formula

$k'=10+20$

$k'=30\ N/m$

$k_{1}$ ,k' and $k_{5}$ is in series

We need to calculate the equivalent stiffness of the spring

Using formula for series

$k_{eq}=\dfrac{1}{k_{1}}+\dfrac{1}{k'}+\dfrac{1}{k_{5}}$

Put the value into the formula

$k_{eq}=\dfrac{1}{20}+\dfrac{1}{30}+\dfrac{1}{35}$

$k_{eq}=8.93\ N/m$

Hence, The equivalent stiffness of the string is 8.93 N/m.

3 0

4 years ago

An object is released from height of 17m. <br> The object will hit the ground approximately in

zzz [600]

$\text{Given that,}\\\\\text{Height, h = 17 m}\\\\\\\text{We know that,}\\\\h = v_0t + \dfrac 12 gt^2\\\\\implies h = \dfrac 12 gt^2\\\\\implies t^2 = \dfrac{2h}g\\\\\implies t =\sqrt{\dfrac{2h}g} = \sqrt{\dfrac{2(17)}{9.81}} = 1.87 ~ \text{sec}$

5 0
