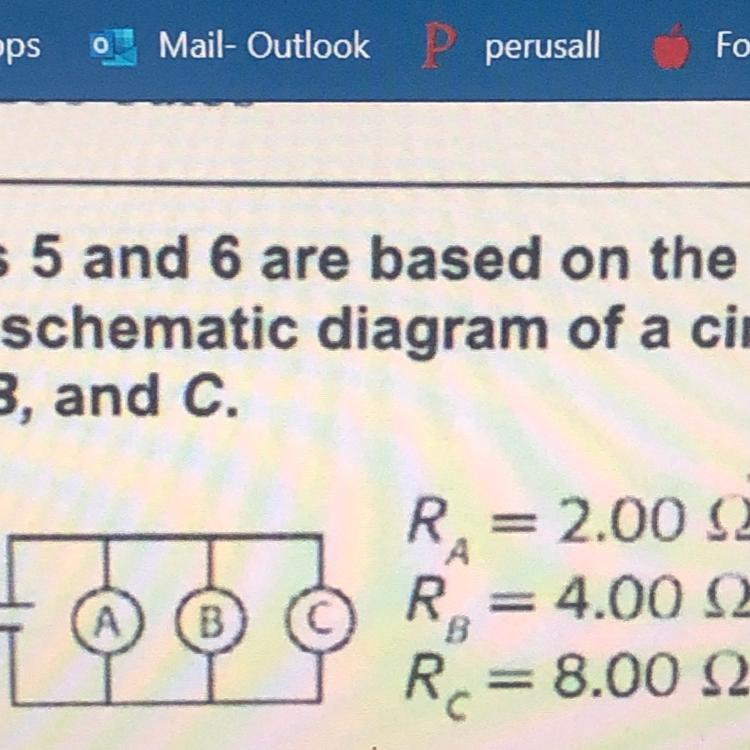

If the current in the circuit is 10.5 A,

Physics

1 answer:

sergiy2304 [10]3 years ago

7 0

Answer:

E) 147 V

Explanation:

Ra+Rb+Rc = 14.0

V = IR

V = (10.5)(14.0)

V = 147 V

You might be interested in

Given vectors D (3.00 m, 315 degrees wrt x-axis) and E (4.50 m, 53.0 degrees wrt x-axis), find the resultant R= D + E. (a) Write

Eva8 [605]

Answer:

R = ( 4.831 m , 1.469 m )

Magnitude of R = 5.049 m

Direction of R relative to the x axis= 16°54'33'

Explanation:

Knowing the magnitude and directions relative to the x axis, we can find the Cartesian representation of the vectors using the formula

$\vec{A}= | \vec{A} | \ ( \ cos(\theta) \ , \ sin (\theta) \ )$

where $| \vec{A} |$ its the magnitude and θ.

So, for our vectors, we will have:

$\vec{D}= 3.00 m \ ( \ cos(315) \ , \ sin (315) \ )$

$\vec{D}= ( 2.121 m , -2.121 m )$

and

$\vec{E}= 4.50 m \ ( \ cos(53.0) \ , \ sin (53.0) \ )$

$\vec{E}= ( 2.71 m , 3.59 m )$

Now, we can take the sum of the vectors

$\vec{R} = \vec{D} + \vec{E}$

$\vec{R} = ( 2.121 \ m , -2.121 \ m ) + ( 2.71 \ m , 3.59 \ m )$

$\vec{R} = ( 2.121 \ m + 2.71 \ m , -2.121 \ m + 3.59 \ m )$

$\vec{R} = ( 4.831 \ m , 1.469 \ m )$

This is R in Cartesian representation, now, to find the magnitude we can use the Pythagorean theorem

$|\vec{R}| = \sqrt{R_x^2 + R_y^2}$

$|\vec{R}| = \sqrt{(4.831 m)^2 + (1.469 m)^2}$

$|\vec{R}| = \sqrt{23.338 m^2 + 2.158 m^2}$

$|\vec{R}| = \sqrt{25.496 m^2}$

$|\vec{R}| = 5.049 m$

To find the direction, we can use

$\theta = arctan(\frac{R_y}{R_x})$

$\theta = arctan(\frac{1.469 \ m}{4.831 \ m})$

$\theta = arctan(0.304)$

$\theta = 16\°54'33''$

As we are in the first quadrant, this is relative to the x axis.

3 0

3 years ago

A stationary speed gun emits a microwave beam at 2.10x10^10 Hz. It reflects off a car and returns 638 Hz lower. What is the spee

stiv31 [10]

Answer:

The answer is 4.55 m/s!

Explanation:

I wish you luck with Acellus! We got 15 days left!

Please mark brainliest.

6 0

3 years ago

A rescue plane wants to drop supplies to isolated mountain climbers on a rocky ridge 235 m below. If the plane is traveling hori

11111nata11111 [884]

Answer:

481 m

Explanation:

To fall 235 m, the time required is

t = √(2H/g)

t= √(2 $\times$ 235/9.8)

t=6.92 seconds.

The supplies will travel forward

6.92 $\times$ 69.4 ≈ 481 m

Therefore, the goods must be dropped 481 m in advance of the recipients.

5 0

3 years ago

What is the process called in which water vapor and carbon dioxide retain heat

antoniya [11.8K]

The process in which water vapor and carbon dioxide retain heat is called the greenhouse effect.

<span>There are many gases which causes greenhouse effect like carbon dioxide, methane, nitrous oxide, fluorinated gases etc. These gases trap the heat in the atmosphere, resulting the surface of earth to get warm producing greenhouse effect.</span>

3 0

3 years ago

The wheel of a stationary exercise bicycle at your gym makes one rotation in 0.670 s. Consider two points on this wheel: Point P

defon

Answer:

0.938 m/s.

Explanation:

Given:

ω = 1 rev in 0.67 s

In rad/s,

1 rev = 2pi rad

ω = 2pi ÷ 0.67

= 9.38 rad/s

Rp = 10 cm

= 0.1 m

V = ω × r

= 9.38 × 0.1

= 0.938 m/s.

5 0
