3 years ago

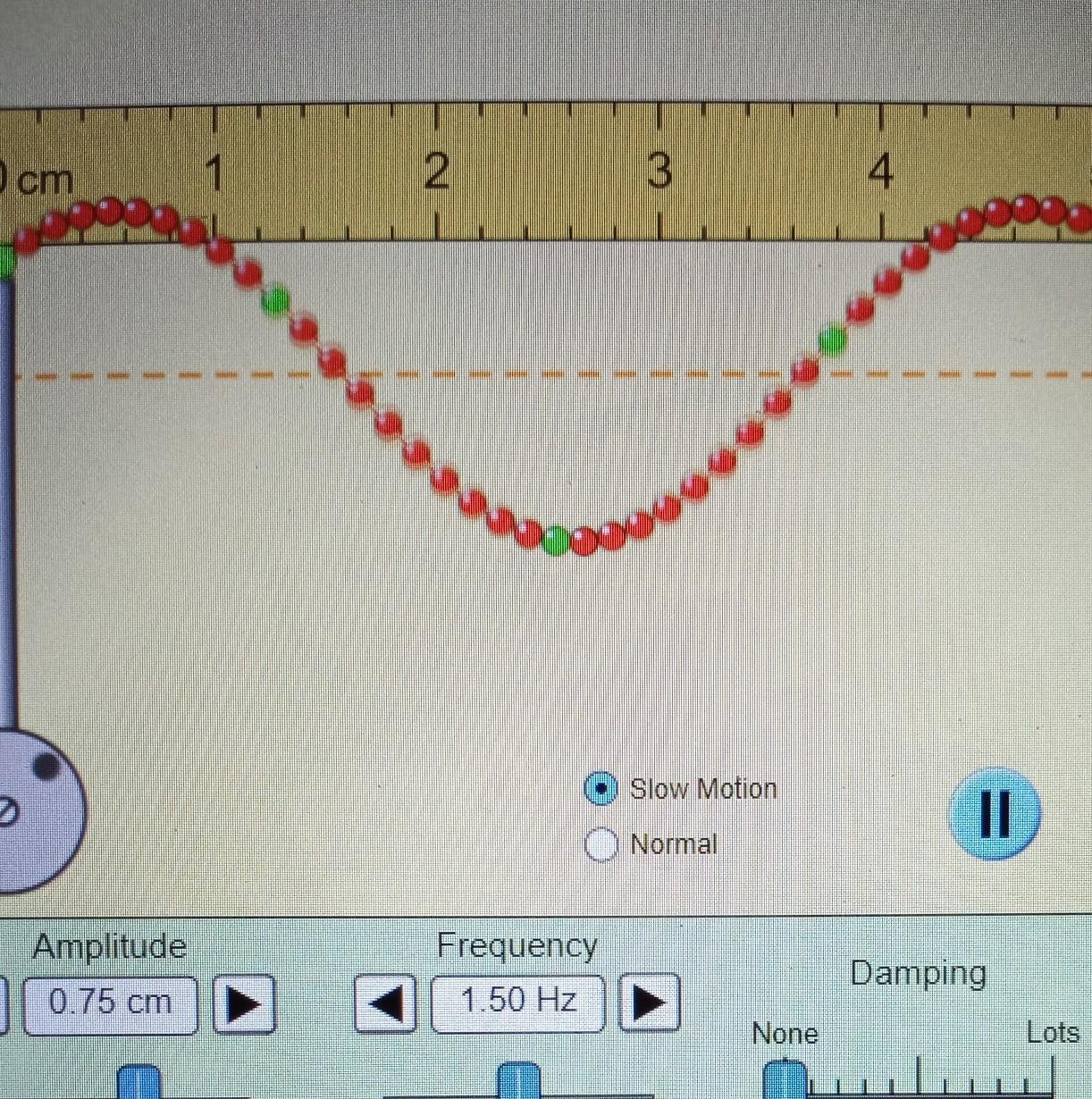

Is this wave perpendicular or parallel?

Physics

2 answers:

mote1985 [20]3 years ago

6 0

Answer:

I think it is Perpendicular

Alenkinab [10]3 years ago

4 0

Answer:

Perpendicular

Explanation:

In the image is seems to be that it's a transverse wave and transverse waves travel in a direction perpendicular to the direction that this wave moves.

You might be interested in

A piston motion moves a 25-kg hammerhead vertically down 1 m from rest to a velocity of 50 m/s in a stamping machine. What is th

Alja [10]

Answer:

31.005 KJ

Explanation:

We are given that

Mass of hammerhead=25 kg

Initial velocity,u=0

Final velocity,v=50 m/s

h=-1 m

h'=0

We have to find the change in total energy of the hammerhead.

Change in total energy= $E_2-E_1=m(u_2-u_1)+\frac{1}{2}m(v^2-u^2)+mg(h-h')$

Using the formula

Change in internal energy of hammerhead= $m(u_2-u_1)=0$

Change in total energy= $\frac{1}{2}(25)(50)^2+25\times 9.8(-1)$

Where $g=9.8m/s^2$

Change in total energy= $31005 J=\frac{31005}{1000}=31.005 KJ$

1 KJ=1000 J

3 0

3 years ago

Which of the following statements is FALSE about collisions? (Consider Newton's Laws an the Conservation of Momentum.)

pantera1 [17]

<u>The following statements are false about collisions: </u>

The velocity change of two respective objects involved in a collision will always be equal.
Total momentum is always conserved between any two objects involved in a collision.

Answer: Option B, and D

<u>Explanation: </u>

In any collisions, equal amount of net force will be acted upon the colliding objects due to the third law of Newton, irrespective of the significance difference in mass of the objects. Similarly, they can also have different acceleration values during collision of two objects if the masses are identical.

But the statements regarding the equal change in velocity of two objects respectively involved in collision always is false, as the conservation of momentum is applicable for isolated system only. So it is true for only isolated system and not in all the systems.

The same reason goes for falsifying the fourth statement which states that total momentum is always conserved between two objects involved in a collision as this statement is only true for isolated system where the conservation of momentum can be applied. Thus the second and fourth statement is false regarding collision.

8 0

3 years ago

Which is true regarding AC current? The electrons move back and forth. The +/- polarity is constant. It is common in portable de

andre [41]

Answer: Option (a) is the correct answer.

Explanation:

AC current stands for alternating current. In an alternating current there is periodically reverse movement of current.

This means electrons move in one direction for a certain time and then they reverse their movement for the same time period and it continues in the back and forth position.

Thus, we can conclude that the statement electrons move back and forth is true regarding AC current.

7 0

4 years ago

Read 2 more answers

When a system is heated, heat is _______________ by the system. The amount of heat added is given a _______________ sign. When a

Valentin [98]

First of all, we need to write the First Law of thermodynamics assigning the correct sign convention:

$\Delta U = Q+W$

where

$\Delta U$ is the change in internal energy of the system

Q is the heat absorbed/released

W is the work done

and the signs are assigned based on whether there is an increase in the internal energy or not. Therefore:

Q is positive if it is absorbed by the system (because internal energy increases)

Q is negative if it is released by the system (because internal energy decreases)

W is negative if it is done by the system on the surrounding (because internal energy decreases)

W is positive if it is done by the surrounding on the system (because internal energy increases)

Using these definitions, we can now fill the text of the question:

When a system is heated, heat is ABSORBED by the system. The amount of heat added is given a POSITIVE sign. When a system is cooled, heat is RELEASED by the system. The amount of heat is given a NEGATIVE sign. If a gas expands, it must push the surrounding atmosphere away. Thus, work is done BY the system and is given a NEGATIVE sign. If a gas is compressed, then work is done ON the system. This work is given a POSITIVE sign.

7 0

3 years ago

Read 2 more answers

Find the electron and hole concentrations and fermi level in silicon at 300 k for boron

gogolik [260]

To find the electron and hole concentrations and fermi levels in silicon at 300 k for boron, fermi level is 9.3 x $10^4 cm^-3$ .

<h3>Calculation and Explanation</h3>

Ionization energy for boron in Si, 0.045 eV

Fermi level in silicon,

300 K at $10^{15} cm^{-3}$ (Boron atoms)

All boron impurities are ionized, 300K

Electron, hole concentrations and Fermi levels is found out,

The value of Na = $10^{15} cm^{-3}$

np = $\frac{ni^2}{nA}$

np = $\frac{(9.65 x 10^9)^2}{10^15}$

np= 9.3 x $10^4 cm^-3$

Fermi level is calculated,

Ef - Ev = kT ln(NV/ND)

value of kT = 0.0259 eV (300° K)

So, substitution the values

Ef - Ev = kT ln(NV/ND)

Ef - Ev = 0.0259ln (2.66 x $10^{19} / 10^{15}$ )

Ef - Ev = 0.0259ln (26600)

Ef - Ev = 0.0259 x 10.18

Ef - Ev = 0.263 eV

What is ionization energy?

Ionization energy, also known as ionization energy (IE) or ionization energy (British English spelling), is the minimal amount of energy needed to free the most loosely bonded electron from an isolated gaseous atom, positive ion, or molecule in physics and chemistry.

To know more about ionization energy, visit:

brainly.com/question/16243729

#SPJ4

4 0

1 year ago

Is this wave perpendicular or parallel?​

Is this wave perpendicular or parallel?
