Using the Tsai-Hill failure criterion, determine the strength of a lamina under equal biaxial tension and shear at 45o to the fi

ber direction 2 , xy s σσ τ = = that is, determine 0 2,, uu u xy s σ σ τ say F = = = at failure in terms of 12 6 F F and F2.

1 answer:

Alinara [238K]3 years ago

5 0

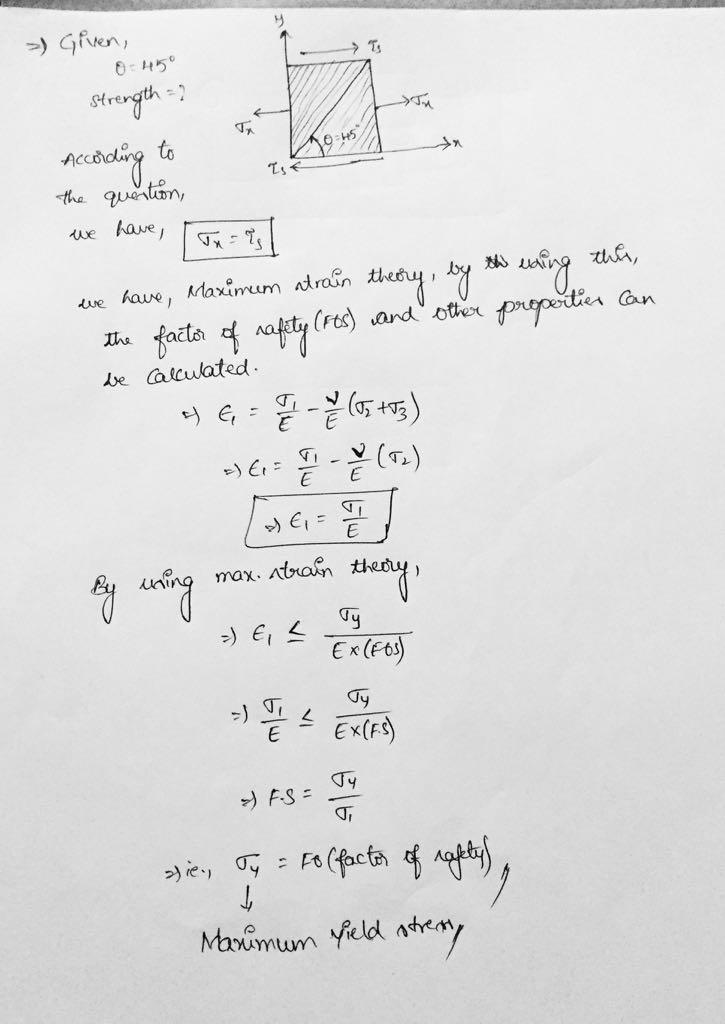

Answer:

Explanation:

solution to the question

You might be interested in

You want to plate a steel part having a surface area of 160 with a 0.002--thick layer of lead. The atomic mass of lead is 207.19

Pepsi [2]

Answer:

<u><em>To answer this question we assumed that the area units and the thickness units are given in inches.</em></u>

The number of atoms of lead required is 1.73x10²³.

Explanation:

To find the number of atoms of lead we need to find first the volume of the plate:

$V = A*t$

<u>Where</u>:

A: is the surface area = 160

t: is the thickness = 0.002

<u><em>Assuming that the units given above are in inches we proceed to calculate the volume: </em></u>

$V = A*t = 160 in^{2}*0.002 in = 0.32 in^{3}*(\frac{2.54 cm}{1 in})^{3} = 5.24 cm^{3}$

Now, using the density we can find the mass:

$m = d*V = 11.36 g/cm^{3}*5.24 cm^{3} = 59.5 g$

Finally, with the Avogadros number ( $N_{A}$ ) and with the atomic mass (A) we can find the number of atoms (N):

$N = \frac{m*N_{A}}{A} = \frac{59.5 g*6.022 \cdot 10^{23} atoms/mol}{207.19 g/mol} = 1.73 \cdot 10^{23} atoms$

Hence, the number of atoms of lead required is 1.73x10²³.

I hope it helps you!

3 0

3 years ago

Refrigerant 22 flows in a theoretical single-stage compression refrigeration cycle with a mass flow rate of 0.05 kg/s. The conde

Debora [2.8K]

Answer:

a. The work done by the compressor is 447.81 Kj/kg

b. The heat rejected from the condenser in kJ/kg is 187.3 kJ/kg

c. The heat absorbed by the evaporator in kJ/kg is 397.81 Kj/Kg

d. The coefficient of performance is 2.746

e. The refrigerating efficiency is 71.14%

Explanation:

According to the given data we would need first the conversion of temperaturte from C to K as follows:

Temperature at evaporator inlet= Te=-16+273=257 K

Temperatue at condenser exit=Te=48+273=321 K

Enthalpy at evaporator inlet of Te -16=i3=397.81 Kj/Kg

Enthalpy at evaporator exit of Te 48=i1=260.51 Kj/Kg

b. To calculate the the heat rejected from the condenser in kJ/kg we would need to calculate the Enthalpy at the compressor exit by using the compressor equation as follows:

w=i4-i3

W/M=i4-i3

i4=W/M + i3

i4=2.5/0.05 + 397.81

i4=447.81 Kj/kg

a. Enthalpy at the compressor exit=447.81 Kj/kg

Therefore, the heat rejected from the condenser in kJ/kg=i4-i1

the heat rejected from the condenser in kJ/kg=447.81-260.51

the heat rejected from the condenser in kJ/kg=187.3 kJ/kg

c. Temperature at evaporator inlet= Te=-16+273=257 K

The heat absorbed by the evaporator in kJ/kg is Enthalpy at evaporator inlet of Te -16=i3=397.81 Kj/Kg

d. To calculate the coefficient of performance we use the following formula:

coefficient of performance=Refrigerating effect/Energy input

coefficient of performance=137.3/50

coefficient of performance=2.746

the coefficient of performance is 2.746

e. The refrigerating efficiency = COP/COPc

COPc=Te/(Tc-Te)

COPc=255/(321-255)

COPc=3.86

refrigerating efficiency=2.746/3.86

refrigerating efficiency=0.7114=71.14%

8 0

4 years ago

State three characteristic of lines of magnetic flux

stepladder [879]

Answer:

1. The magnetic flux line form a closed loop.

2. The magnetic flux line repel each other.

3. The magnetic flux line never intersect.

5 0

3 years ago

Read 2 more answers

Suppose that a wing component on an aircraft is fabricated from an aluminum alloy that has a plane-strain fracture toughness of

Orlov [11]

Answer: 133.88 MPa approximately 134 MPa

Explanation:

Given

Plane strains fracture toughness, k = 26 MPa

Stress at which fracture occurs, σ = 112 MPa

Maximum internal crack length, l = 8.6 mm = 8.6*10^-3 m

Critical internal crack length, l' = 6 mm = 6*10^-3 m

We know that

σ = K/(Y.√πa), where

112 MPa = 26 MPa / Y.√[3.142 * 8.6*10^-3)/2]

112 MPa = 26 MPa / Y.√(3.142 * 0.043)

112 = 26 / Y.√1.35*10^-2

112 = 26 / Y * 0.116

Y = 26 / 112 * 0.116

Y = 26 / 13

Y = 2

σ = K/(Y.√πa), using l'instead of l and, using Y as 2

σ = 26 / 2 * [√3.142 * (6*10^-3/2)]

σ = 26 / 2 * √(3.142 *3*10^-3)

σ = 26 / 2 * √0.009426

σ = 26 / 2 * 0.0971

σ = 26 / 0.1942

σ = 133.88 MPa

8 0

3 years ago

Before you calculate the moment capacity for a steel beam, you have to determine the classification of beam.

kirill [66]

Answer:

True

Explanation:

True - because different classification of steel beam have different yield strength.

The moment capacity for a steel beam is given by;

M = Mn / Ωₙ

where;

M - the maximum moment acting on the beam

Ωₙ - is the Safety Factor for Elements in Bending = 1.67

Mn - nominal moment of the steel, given as

$M_n = Z_x *f_y$

where;

Zₓ - the Plastic Section Modulus in the x or strong axis.

$f_y -$ is the Yield Strength of the Steel (A36W, A46 W or A50W)

A36W = 36 ksi

A46 W = 46 ksi

A50W = 50 ksi

Thus, before you calculate the moment capacity for a steel beam, you have to determine the classification of beam, for the yield strength of the steel beam.
