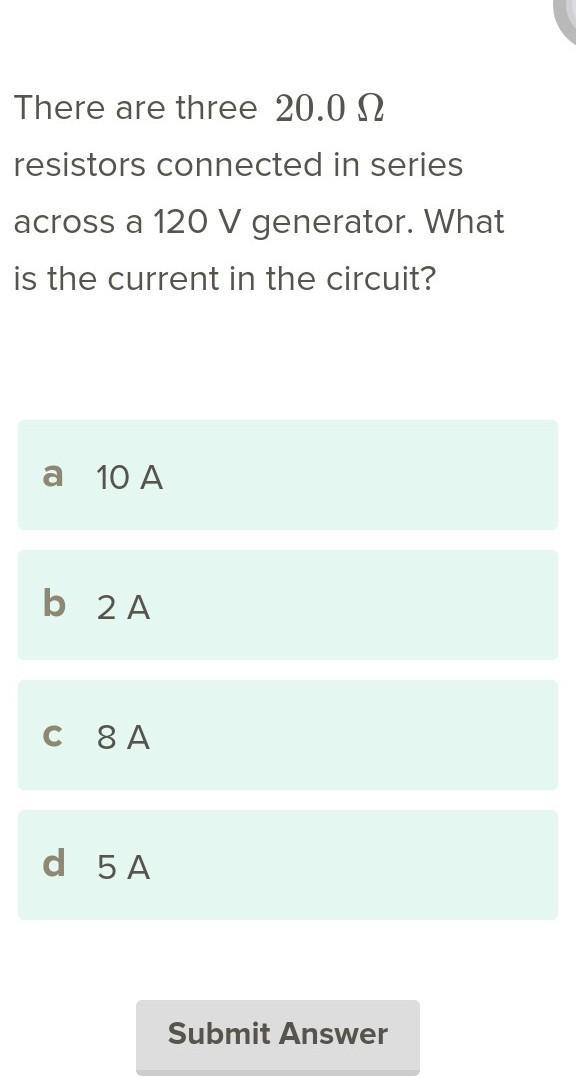

Help me solve this please

Physics

1 answer:

Wewaii [24]3 years ago

7 0

Answer:

<h2>option b , 2A</h2>

Explanation:

thus

so putting values we get,

I = 120/ R

for the value of R...

R(series) = R1 + R2 + R3

R= 20 + 20+ 20 = 60 ohm

thus, I=120/60 = 2

Therefore,
