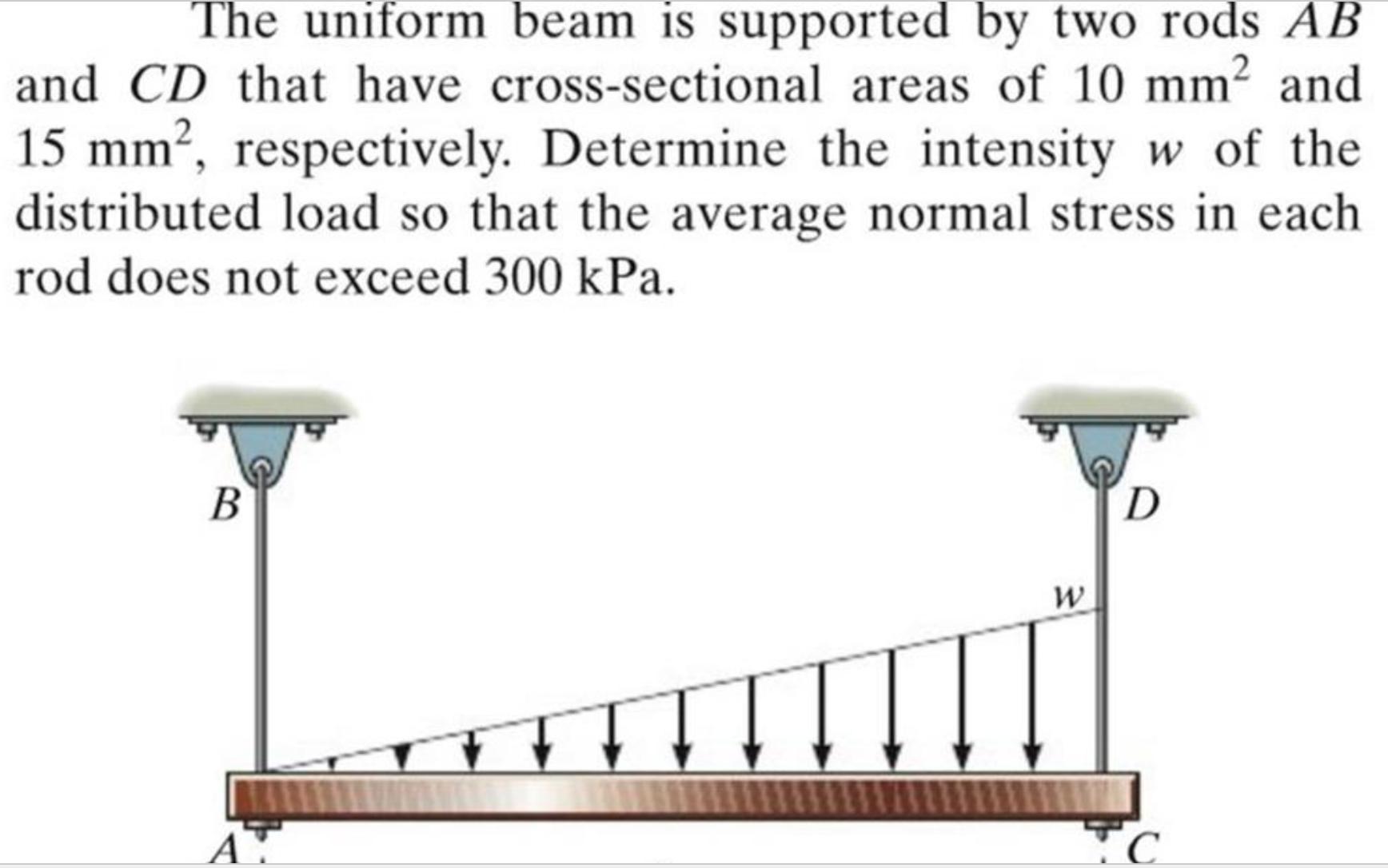

Problem 3. The uniform beam is supported by two rods AB and CD that have cross-sectional areas of 10 mm2 and 15mm2, respectively
1 answer:
Answer:
hello the diagram related to your question is missing attached below is the required diagram.
The value of AC = 6m
answer 2.25 N
Explanation:
From the diagram attached below
average intensity of loading = w/2
Total load due to linearly varying load =
w = maximum intensity of load , L = span of varying load
since AC = 6m( L ) then
Total load due to linearly varying load = 3w ------ ( 1 )
attached below is the detailed solution of the given problem
