Can someone help me with this I’m confused

Physics

1 answer:

mr Goodwill [35]3 years ago

8 0

Answer:

Explanation:

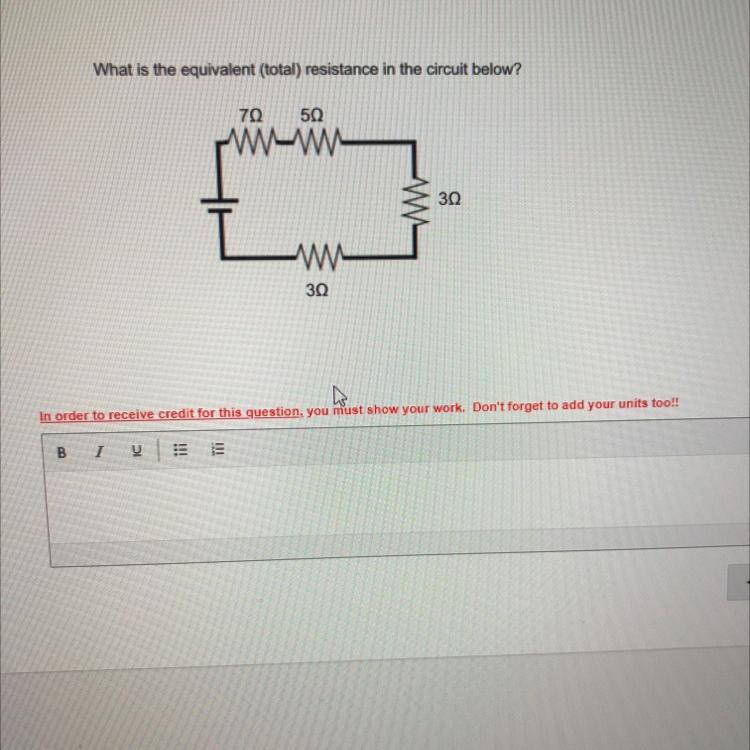

They are all in series.

so the resistance will be added.

7+5+3+3= 18

You might be interested in

The figure shows a water-filled syringe with a 4.0-cm-long needle. What is the gauge pressure of the water at the point P, where

mars1129 [50]

Answer:

Pressure at P point is given as

$P_p = 1.042 \times 10^5 Pa$

Explanation:

As we know by poiseuille's equation of viscous flow of liquid through cylindrical pipe

$Q = \frac{\Delta P \pi r^4}{8\eta L}$

here we know that

L = 4 cm

$\eta = 1 \times 10^{-3} Pa s$

r = 1 mm

Q = flow rate

$\pi r^2 v = \frac{\Delta P \pi r^4}{8\eta L}$

$v = \frac{\Delta P r^2}{8 \eta L}$

$10 = \frac{\Delta P (10^{-3})^2}{8(1 \times 10^[-3})(0.04)}$

$3.2 \times 10^{-3} = \Delta P (10^{-6})$

$\Delta P = 3.2 \times 10^3 Pa$

now we have

$P_p - P_{atm} = 3.2 \times 10^3$

$P_p = 1.01 \times 10^5 + 3.2 \times 10^3$

$P_p = 1.042 \times 10^5 Pa$

8 0

3 years ago

A parachutist of mass 20.1 kg jumps out of an airplane at a height of 662 m and lands on the ground with a speed of 7.12 m/s. Th

Klio2033 [76]

Answer:

$1.30\cdot 10^5 J$

Explanation:

The energy lost due to air friction is equal to the mechanical energy lost by the parachutist during the fall.

The initial mechanical energy of the parachutist (at the top) is equal to his gravitational potential energy:

$E_i=mgh$

where

m = 20.1 kg is his mass

$g=9.8 m/s^2$ is the acceleration due to gravity

h = 662 m is the initial heigth

The final mechanical energy (at the bottom) is equal to his kinetic energy:

$E_f=\frac{1}{2}mv^2$

where

v = 7.12 m/s is the final speed of the parachutist

Therefore, the energy lost due to air friction is:

$\Delta E=E_i-E_f=mgh-\frac{1}{2}mv^2=(20.1)(9.8)(662)-\frac{1}{2}(20.1)(7.12)^2=1.30\cdot 10^5 J$

4 0

4 years ago

Calculate the amount of energy produced in joules by 100- watt light bulb lit for 2.5 hours.

9966 [12]

100/2.5 is 40.
40 is the energy that is being produced

4 0

4 years ago

How does unequal solar heating lead to the Gulf Stream?

adoni [48]

Http://earthguide.ucsd.edu/virtualmuseum/virtualmuseum/OriginofGulfStream.shtml this website might help u find ur answer

8 0

3 years ago

What is the difference between subjective and objective mineral properties?

schepotkina [342]

Subjective refers to something that takes place within the mind of the person. It is modified based on individual bias.

Objective refers to defining things or expressing them without any distortion. They are expressed only as perceived.

Finally, mineral is anything composed of matter apart from animals and plants.

7 0

4 years ago

Read 2 more answers
