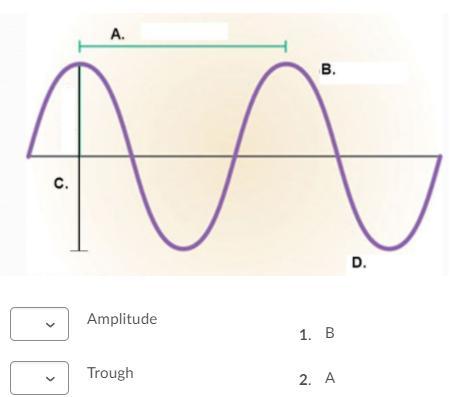

Look at the pictures to answer please and thank you Branleist goes out to

Physics

1 answer:

notsponge [240]3 years ago

8 0

Ok, Amplitude is C, Wavelength is A, Trough is D, and crest is B.

Hope this helps!

You might be interested in

An object, initially at rest, is subject to an acceleration of 34 m/s^2. How long will it take for that object to reach 3400m ?

Norma-Jean [14]

Vf^2 = Vi^2 + 2ad
a= 34 m/s^2
Vi = 0 m/s
d = 3400m

Vf = 480.83 m/s

a=v/t
t=v/a
t=480.83/34
t=14.142 s

6 0

3 years ago

A ray of light passes from air into a block of clear plastic. How does the angle of incidence in the air compare to the angle of

andre [41]

Answer:

The angle of incidence is greater than the angle of refraction

Explanation:

Refraction occurs when a light wave passes through the boundary between two mediums.

When a ray of light is refracted, it changes speed and direction, according to Snell's Law:

$n_1 sin \theta_1 = n_2 sin \theta_2$

where :

$n_1$ is the index of refraction of the 1st medium

$n_2$ is the index of refraction of the 2nd medium

$\theta_1$ is the angle of incidence (the angle between the incident ray and the normal to the boundary)

$\theta_2$ is the angle of refraction (the angle between the refracted ray and the normal to the boundary)

In this problem, we have a ray of light passing from air into clear plastic. We have:

$n_1=1.00$ (index of refraction of air)

$n_2=1.50$ approx. (index of refraction in clear plastic)

Snell's Law can be rewritten as

$sin \theta_2 =\frac{n_1}{n_2}sin \theta_1$

And since $n_2>n_1$ , we have

$\frac{n_1}{n_2}$

And so

$\theta_2$

Which means that

The angle of incidence is greater than the angle of refraction

6 0

3 years ago

A paintball is shot horizontally in the positive x direction at time t after the ball is shot it is 4 cm to the right and 4 cm b

Artist 52 [7]

<u>Answer:</u>

At time 2t the paint ball is at 8 cm to the right and 16 cm to the bottom

<u>Explanation:</u>

We have equation of motion , $s= ut+\frac{1}{2} at^2$ , s is the displacement, u is the initial velocity, a is the acceleration and t is the time.

Considering the horizontal motion of paint ball

Distance traveled during time t = 4 cm

Initial velocity = u m/s

Acceleration = 0 $m/s^2$

So $4 = u*t+\frac{1}{2} *0*t^2\\ \\ u = \frac{4}{t}$

Now at time 2t,

$S= u*2t+\frac{1}{2} *0*(2t)^2\\ \\=\frac{4}{t} *2t\\ \\ =8cm$

So horizontal distance traveled in time 2t = 8 cm to the right

Now considering the vertical motion of paint ball

Distance traveled during time t = 4 cm

Initial velocity = 0 m/s

Acceleration = -g $m/s^2$

$4=0*t-\frac{1}{2} *g*t^2\\ \\ t^2=\frac{-8}{g}$

At time 2t,

$S=0*2t-\frac{1}{2} *g*(2t)^2\\ \\ =-\frac{1}{2} *g*4*\frac{-8}{g}\\ \\ =16 cm$

So vertical distance traveled in time 2t = 16 cm to the bottom

6 0

3 years ago

Which method of heat transfer takes place when particles of matter vibrate and collide with each other in direct contact

Cerrena [4.2K]

Conduction, hope this helps! :)

6 0

4 years ago

Read 2 more answers

Explain how energy can escape from the water by convection,

Pachacha [2.7K]

As the molecules at the surface of a liquid absorb heat, they begin to move around more quickly. This gives them the energy to break the bonds that connect them to other water molecules. When the molecules are moving fast enough, they are able to "escape." They leave the surface of the liquid as gas molecules.

6 0

3 years ago
