Vilka [71]
3 years ago
12

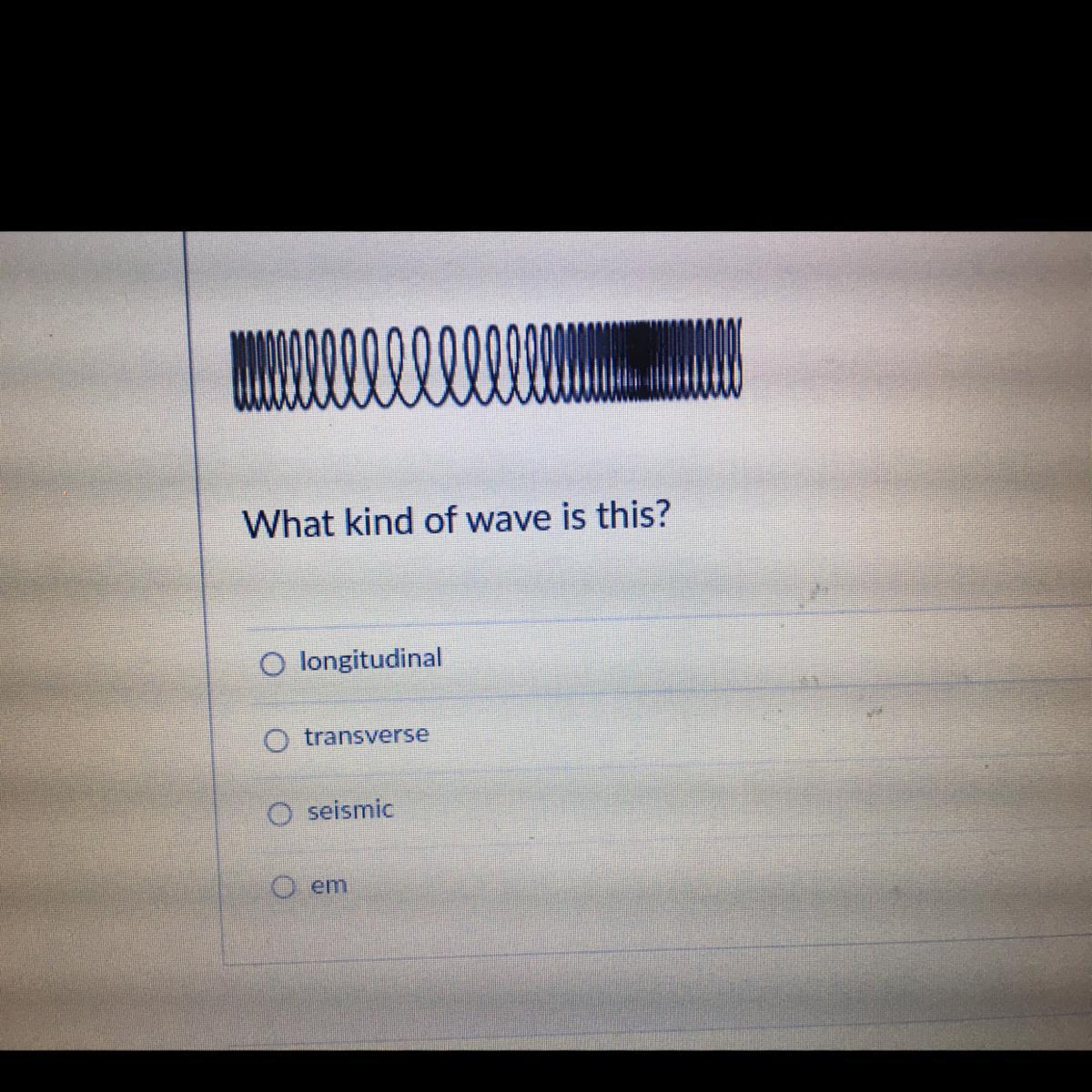

I’ll give brainliest if you can answer the question in the picture and the question below

Physics
2 answers:
nydimaria [60]3 years ago
6 0
Answer for the picture is
A. Longitudinal Wave
and answer below is
B. Interference
Vlad1618 [11]3 years ago
3 0

Answer:

the answer would be D if you agree

You might be interested in
Concept map for kinetic energy, work and power
Helen [10]

Kinetic energy: the energy of motion

Work: the change in kinetic energy

Power: the rate of work done

Explanation:

The kinetic energy of an object is the energy possessed by the object due to its motion. Mathematically, it is given by:

K=\frac{1}{2}mv^2

where

m is the mass of the object

v is its speed

The work done an object is the amount of energy transferred; according to the energy-work theorem, it is equal to the change in kinetic energy of an object:

W=K_f - K_i

where

K_f is the  final kinetic energy

K_i is the initial kinetic energy

Finally, the power is the rate of work done per unit time. Mathematically, ti can be expressed as

P=\frac{W}{t}

where

W is the work done

t is the time elapsed

Learn more about kinetic energy, work and power:

brainly.com/question/6536722

brainly.com/question/6763771

brainly.com/question/6443626

brainly.com/question/7956557

#LearnwithBrainly

8 0
4 years ago
Electric Field of Ring of Charge A ring shaped charge has a radius of 0.250 meters and bears a total charge of +5.00 C What is t
Eduardwww [97]

Answer:

6.44 × 10^10 N/C

Explanation:

Electric field due to the ring on its axis is given by

E = K q r / (r^2 + x^2)^3/2

Where r be the radius of ring and x be the distance of point from the centre of ring and q be the charge on ring.

r = 0.25 m, x = 0.5 m, q = 5 C

K = 9 × 10^9 Nm^2/C^2

E = 9 × 10^9 × 5 × 0.25 / (0.0625 + 0.25)^3/2

E = 6.44 × 10^10 N/C

8 0
4 years ago
A block of 250-mm length and 54 × 40-mm cross section is to support a centric compressive load P. The material to be used is a b
musickatia [10]

Answer:

P = 17.28*10⁶ N

Explanation:

Given

L = 250 mm = 0.25 m

a = 0.54 m

b = 0.40 m

E = 95 GPa = 95*10⁹ Pa

σmax = 80 MPa = 80*10⁶ Pa

ΔL = 0.12%*L = 0.0012*0.25 m = 3*10⁻⁴ m

We get A as follows:

A = a*b = (0.54 m)*(0.40 m) = 0.216 m²

then, we apply the formula

ΔL = P*L/(A*E)  ⇒ P = ΔL*A*E/L

⇒  P = (3*10⁻⁴ m)*(0.216 m²)*(95*10⁹ Pa)/(0.25 m)

⇒  P = 24624000  N = 24.624*10⁶ N

Now we can use the equation

σ = P/A

⇒  σ = (24624000  N)/(0.216 m²) = 114000000 Pa = 114 MPa > 80 MPa

So σ > σmax  we use σmax

⇒  P = σmax*A = (80*10⁶ Pa)*(0.216 m²) = 17280000 N = 17.28*10⁶ N

7 0
3 years ago
How can pressure impact the alignment of minerals within the rock
Sloan [31]
Metamorphism occurs because some minerals are stable only under certain conditions of pressure and temperature. When pressure and temperature change, chemical reactions occur to cause the minerals in the rock to change to an assemblage that is stable at the new pressure and temperature conditions.
6 0
3 years ago
A record player turntable initially rotating at 3313 rev/min is braked to a stop at a constant rotational acceleration. The turn
Rus_ich [418]

Answer:

(A) It will take 22 sec to come in rest

(b) Work done for coming in rest will be 0.2131 J

Explanation:

We have given the player turntable initially rotating at speed of 33\frac{1}{3}rpm=33.333rpm=\frac{2\times 3.14\times 33.333}{60}=3.49rad/sec

Now speed is reduced by 75 %

So final speed \frac{3.49\times 75}{100}=2.6175rad/sec

Time t = 5.5 sec

From first equation of motion we know that '

\alpha =\frac{\omega -\omega _0}{t}=\frac{2.6175-3.49}{4}=-0.158rad/sec^2

(a) Now final velocity \omega =0rad/sec

So time t to come in rest  t=\frac{0-3.49}{-0.158}=22sec

(b) The work done in coming rest is given by

\frac{1}{2}I\left ( \omega ^2-\omega _0^2 \right )=\frac{1}{2}\times 0.035\times (0^2-3.49^2)=0.2131J

4 0
3 years ago
