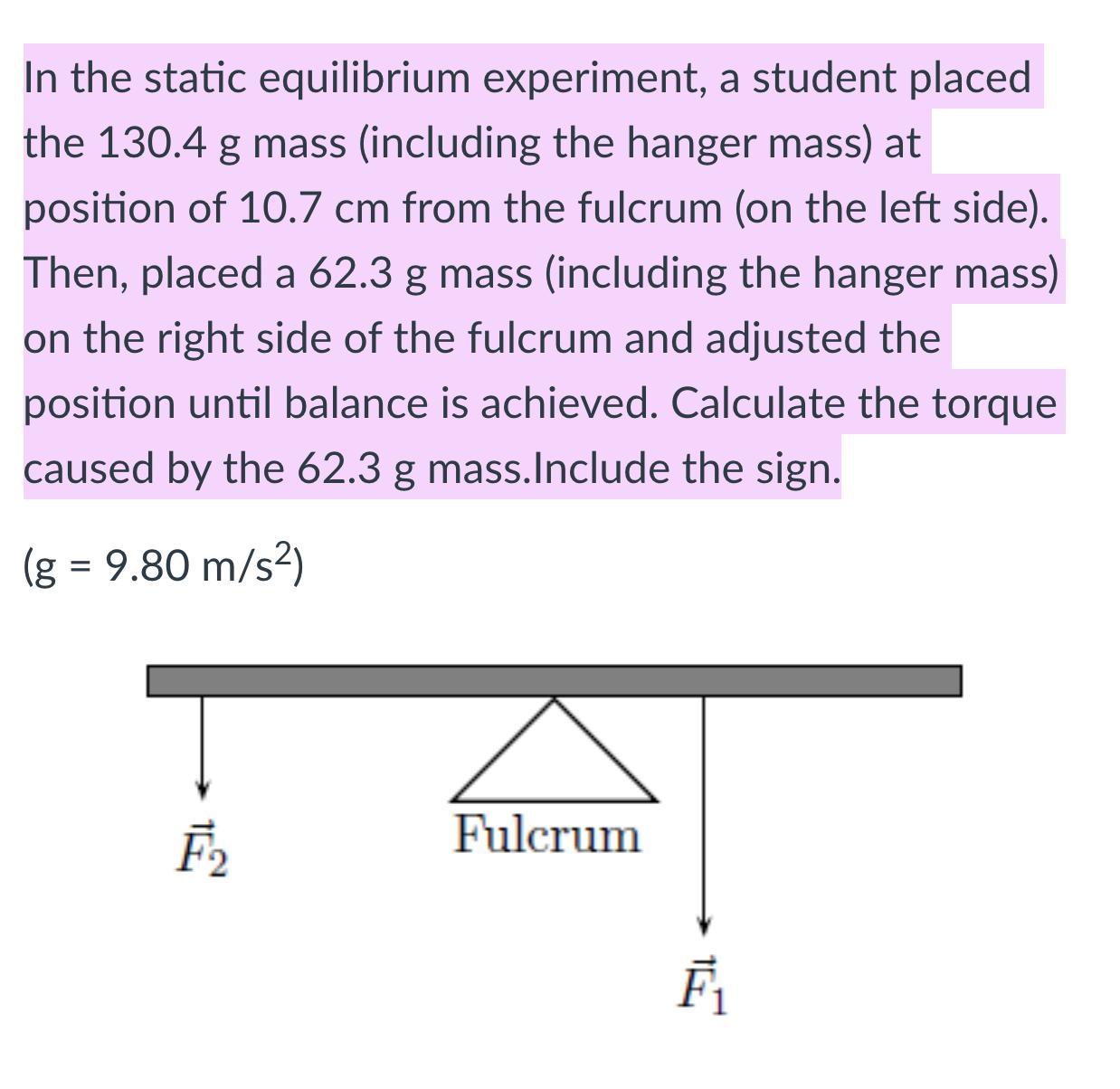

Please show steps as to how to solve this problem Thank you!

Physics

1 answer:

liubo4ka [24]3 years ago

6 0

Answer:

Torques must balance

F1 * X1 = F2 * Y2

or M1 g X1 = M2 g X2

X2 = M1 / M2 * X1 = 130.4 / 62.3 * 10.7

X2 = 22.4 cm

Torque = F1 * X2 =

62.3 gm* 980 cm/sec^2 * 22.4 cm = 137,000 gm cm^2 / sec^2

Normally x cross y will be out of the page

r X F for F1 will be into the page so the torque must be negative

You might be interested in

A 0.5 kg ball is dropped from rest at a point 1.2m above the floor. The ball rebounds straight upward to a height of 0.7m. What

Yuki888 [10]

Answer:

4.281 kgm/s upward

Explanation:

Impulse:This can be defined product of force and time. The S.I unit of impulse is Ns.

From Newton's second law of motion,

Impulse = Change in momentum.

I = mΔv....................... Equation 1.

Where m = mass of the ball, Δv = change in velocity of the ball

and Δv = v -u

Where u = velocity of the ball before it hit the floor, v = velocity of the ball after if hit the floor

I = m(v-u) -------------- Equation 2

But

the initial kinetic energy of the ball = potential energy at the initial height (1.2 m above)

1/2mu² = mgh₁

Where h₁ = initial height. or height of the ball before collision

making u the subject of the equation,

u = √(2gh₁)........................ Equation 3

Where h₁ = 1.2 m g = 9.81 m/s²

Substitute into equation 3

u = √(2×1.2×9.81)

u =√(23.544)

u = -4.852 m/s.

Note: u is negative because the ball was moving downward at the first instance.

Similarly,

v = √(2gh₂)............................. Equation 3

h₂ = height of the ball after collision

Given: h₂ = 0.7 m, g = 9.81 m/s²

Substitute into equation

v = √(2×9.81×0.7)

v = √13.734

v = 3.71 m/s.

Also given: m = 0.5 kg,

Substituting into equation 2

I = 0.5(3.71-(4.852)

I = 0.5(8.562)

I = 4.281 kgm/s. Upward.

Thus the impulse = 4.281 kgm/s upward

7 0

4 years ago

Briefly summarize how the pulleys worked with respect to changes in effort force and effort distance compared with resistance fo

professor190 [17]

It helps applying force in any direction. Pulley systems rely on the relationship between the load and the effort. It also increase the lifting distance. Useful for getting the drive action to happen in awkward places. The bigger the mechanical advantage the lesser amount of force is needed to be exerted.

5 0

3 years ago

A hiker throws a ball at an angle of 21.0° above the horizontal from a hill 21.0 m high. The hiker’s height is 1.750 m. The magn

nydimaria [60]

Answer:

38.8 m

Explanation:

h = -(21 + 1.75) = - 22.75 m

g = - 9.8 m /s^2

Ux = 14.004 m/s

Uy = + 5.376 m/s

Let the ball hits the ground in time t and at a distance d from the base of hill.
