Question

PLEASE HELP...... brainliest....URGENT

Answer 1

Answer:

see below

Step-by-step explanation:

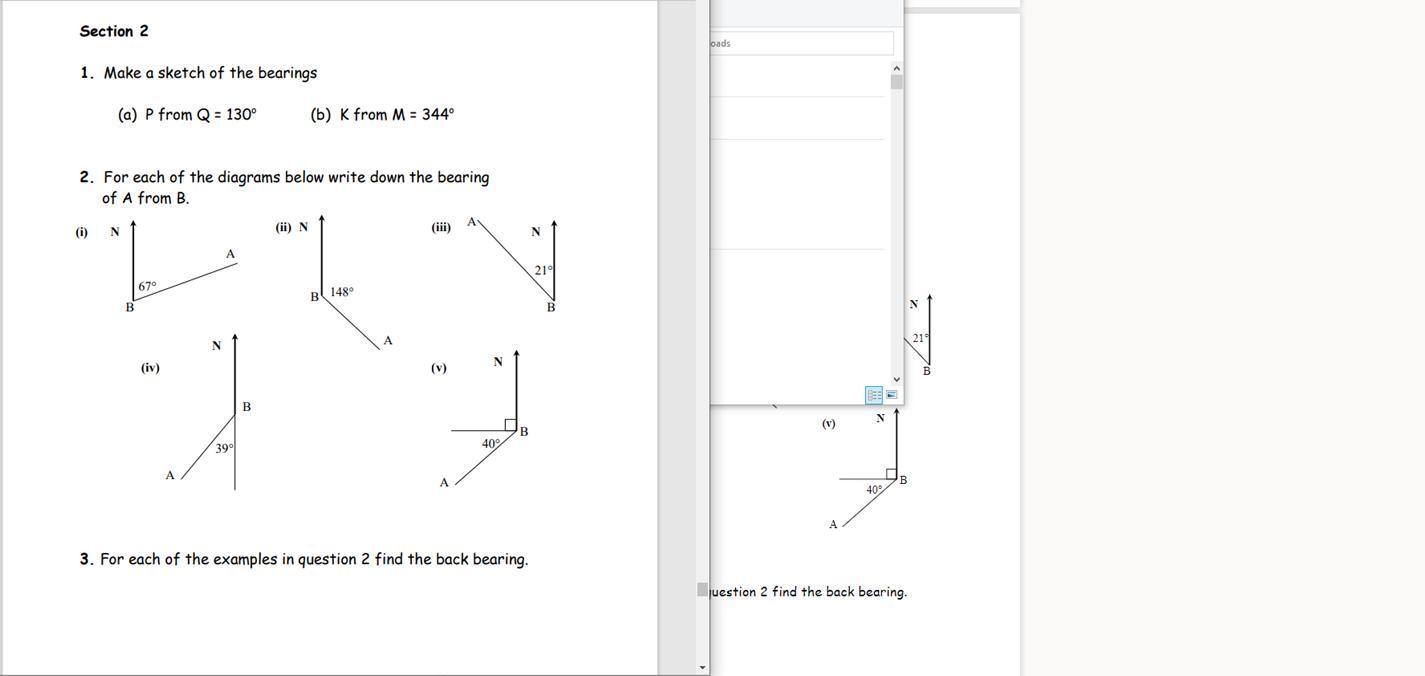

1)  see attached image

2) bearings from A to B

Note: bearing is always clockwise from A and from North.

(i)

bearing 180° + 67°

247° from N

(ii)

bearing 148 + 180

328° from N

(iii)

bearing 180 - 21

159° from N

(iv)

39° from N

(v)

bearing 90 - 40

50° from N

3) back bearing from each diagram on no. 2

Note: subtract 200 if bearing is more than 180

         add 180 if the bearing is less than 180

(i) 247 - 200 = 47°

(ii) 328 - 200 = 128°

(iii) 159 + 180 = 339°

(iv) 39 + 180 = 219°

(v) 50 + 180 = 230°
