sergeinik [125]
3 years ago
7

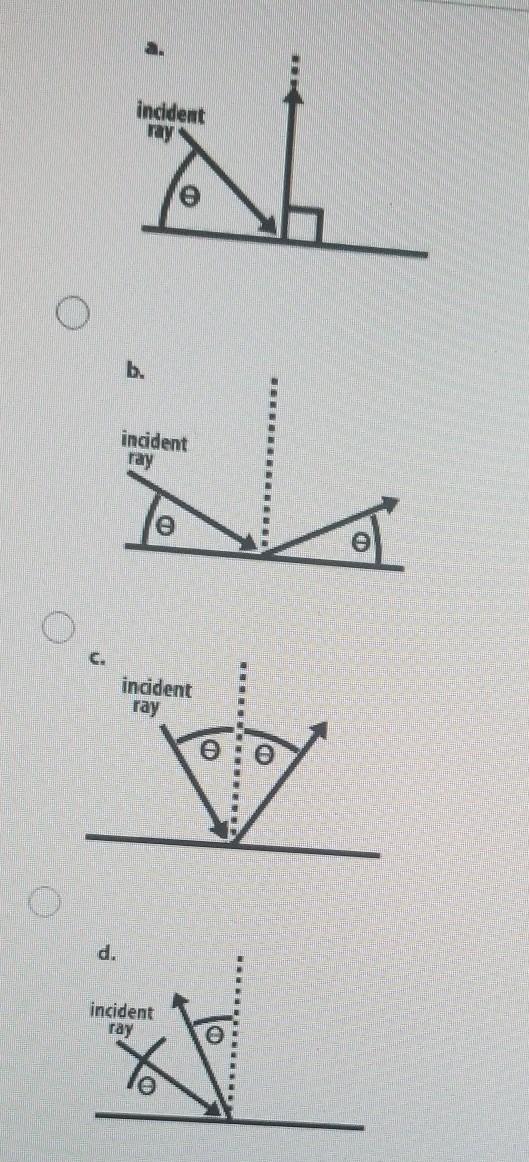

Which shows the correct angle of reflection given the incident ray shown? ​

Physics
1 answer:
kipiarov [429]3 years ago
5 0

\mathfrak{\huge{\pink{\underline{\underline{AnSwEr:-}}}}}

Actually Welcome to the Concept of the Rays of light.

Since we know that, The light ray on a shiny surface makes a angle with the normal, hence The Angle of incidence is equal to angle of reflection made with Normal Axis in the middle.

Thus Option c.) is correct.

C.) is the Answer.

You might be interested in
What is the average speed of a car that travels 40 mph for 1 hour and 60 mph in another hour?
svetoff [14.1K]

Average speed = (total distance covered) / (time to cover the distance)

-- Traveling at 40 mph for 1 hour, the distance covered is 40 miles.

-- Traveling at 60 mph for 1 hour, the distance covered is 60 miles.

-- Total distance covered = (40 miles) + (60 miles) = 100 miles

-- Total time = (1 hour) + (1 hour)  =  2 hours

-- Average speed = (100 miles) / (2 hours)

<em>Average speed = 50 miles per hour</em>

6 0
3 years ago
Three masses (3 kg, 5 kg, and 7 kg) are located in the xy-plane at the origin, (2.3 m, 0), and (0, 1.5 m), respectively.
Artist 52 [7]

Answer:

a) C.M =(\bar x, \bar y)=(0.767,0.7)m

b) (x_4,y_4)=(-1.917,-1.75)m

Explanation:

The center of mass "represent the unique point in an object or system which can be used to describe the system's response to external forces and torques"

The center of mass on a two dimensional plane is defined with the following formulas:

\bar x =\frac{\sum_{i=1}^N m_i x_i}{M}

\bar y =\frac{\sum_{i=1}^N m_i y_i}{M}

Where M represent the sum of all the masses on the system.

And the center of mass C.M =(\bar x, \bar y)

Part a

m_1= 3 kg, m_2=5kg,m_3=7kg represent the masses.

(x_1,y_1)=(0,0),(x_2,y_2)=(2.3,0),(x_3,y_3)=(0,1.5) represent the coordinates for the masses with the units on meters.

So we have everything in order to find the center of mass, if we begin with the x coordinate we have:

\bar x =\frac{(3kg*0m)+(5kg*2.3m)+(7kg*0m)}{3kg+5kg+7kg}=0.767m

\bar y =\frac{(3kg*0m)+(5kg*0m)+(7kg*1.5m)}{3kg+5kg+7kg}=0.7m

C.M =(\bar x, \bar y)=(0.767,0.7)m

Part b

For this case we have an additional mass m_4=6kg and we know that the resulting new center of mass it at the origin C.M =(\bar x, \bar y)=(0,0)m and we want to find the location for this new particle. Let the coordinates for this new particle given by (a,b)

\bar x =\frac{(3kg*0m)+(5kg*2.3m)+(7kg*0m)+(6kg*a)}{3kg+5kg+7kg+6kg}=0m

If we solve for a we got:

(3kg*0m)+(5kg*2.3m)+(7kg*0m)+(6kg*a)=0

a=-\frac{(5kg*2.3m)}{6kg}=-1.917m

\bar y =\frac{(3kg*0m)+(5kg*0m)+(7kg*1.5m)+(6kg*b)}{3kg+5kg+7kg+6kg}=0m

(3kg*0m)+(5kg*0m)+(7kg*1.5m)+(6kg*b)=0

And solving for b we got:

b=-\frac{(7kg*1.5m)}{6kg}=-1.75m

So the coordinates for this new particle are:

(x_4,y_4)=(-1.917,-1.75)m

5 0
3 years ago
Why is the overall charge on an atom neutral?
Oksi-84 [34.3K]

The overall charge on a neutral atom is zero.

A neutral atoms contains equal number of electrons and protons.The charge of a proton and electron is equal in magnitude but opposite in sign. A proton has a charge of 1.6 x 10⁻¹⁹C and the charge of an electron is -1.6 x 10⁻¹⁹C. Thus in a neutral atom, the charge of all the protons gets cancelled with the charge of all the electrons.

Thus a neutral atom has a net zero charge.

5 0
3 years ago
As the moon revolves around the Earth, it also rotates on its axis. Why is it that the the same side of the moon is always visib
Nesterboy [21]
The moon dosent revolve around earth as the earth rotates the moon stays in the same place
7 0
3 years ago
Which of these accurately identify characteristics of light and mechanical waves? Select the TWO (2) that apply.
Tanzania [10]

The two correct statement are A and B. Light waves are electromagnetic waves that can travel through a vacuum. Mechanical waves can travel through a vacuum.

<h3>What is an electromagnetic wave?</h3>

EM waves are the electromagnetic radiations are made up of electromagnetic waves created when an electric field collides with a magnetic field.

Electromagnetic waves may alternatively be defined as the combination of oscillating electric and magnetic fields.

Electrically charged particles experiencing acceleration create electromagnetic waves, which can then interact with other charged particles and exert force on them.

The two correct statement is;

1. Light waves are electromagnetic waves that can travel through a vacuum.

2. Mechanical waves can travel through a vacuum.

Hence,two correct statement are A and B.

To learn more about the electromagnetic wave refer to the link;

brainly.com/question/8553652

#SPJ1

4 0
2 years ago
