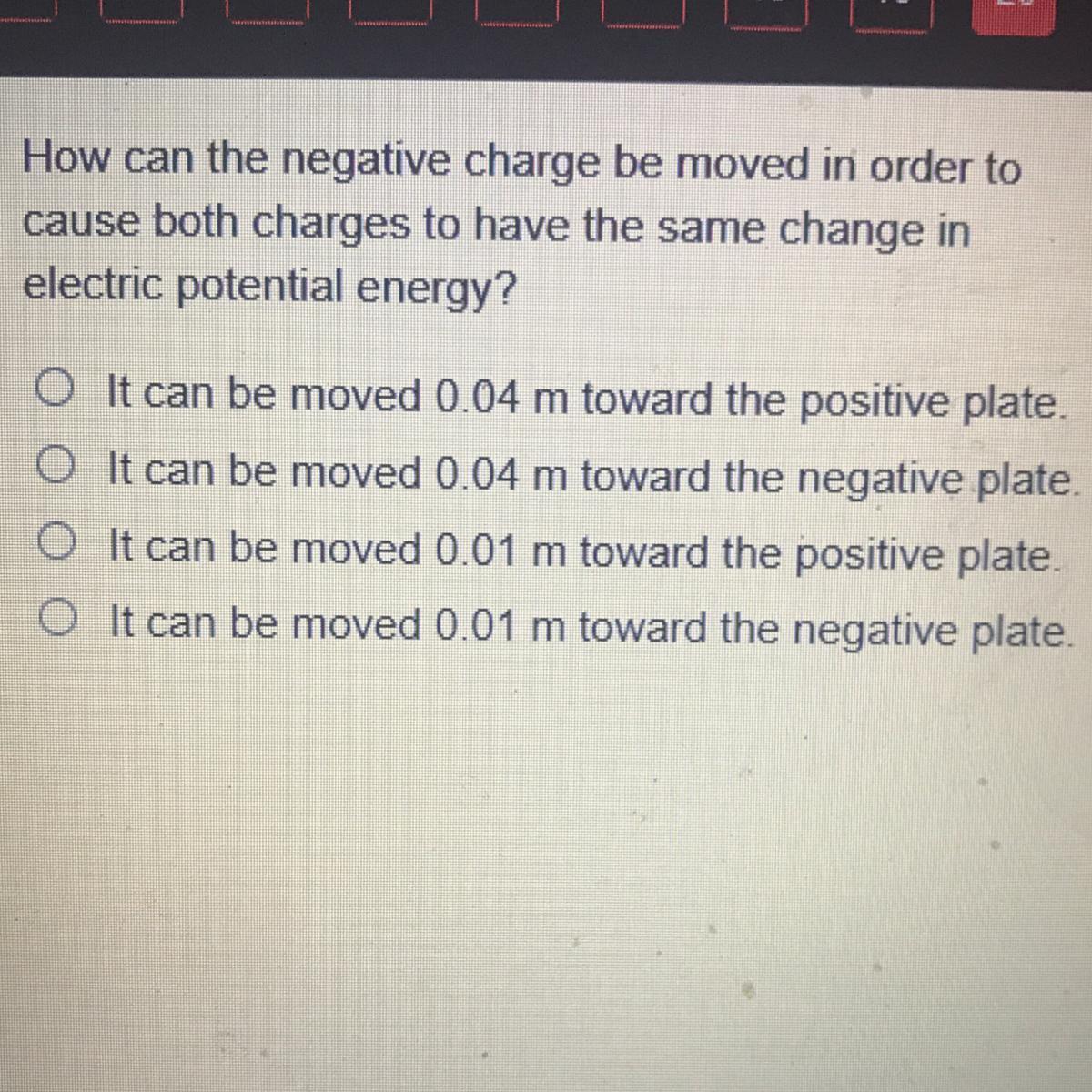

These two images show pairs of oppositely charged

Physics

1 answer:

Monica [59]3 years ago

4 0

Answer:

Explanation:

It can be moved 0.01 toward the negative plate

You might be interested in

A charge +q is located at the origin, while an identical charge is located on the x axis at x = +0.57 m. A third charge of +2q i

Jlenok [28]

Answer:

The third charge placed is 0.80 m.

Explanation:

Given that,

Distance = 0.57 m

First charge = q

Third charge = 2q

We need to calculate the electrostatic force on charge q₁ due to q₂

Using formula of electrostatic force

$F_{21}=\dfrac{kq_{1}q_{2}}{r_{1}^2}$

When placed another charge q₃ at certain distance from origin, then the net force on charge q₁ due to both charges is

$F_{net}=F_{21}+F_{31}$

The net electrostatic force on the charge at the origin doubles.

$2F_{21}=F_{21}+F_{31}$

$F_{31}=F_{21}$

$\dfrac{kq_{3}q_{1}}{r_{2}^2}=\dfrac{kq_{2}q_{1}}{r_{1}^2}$

$\dfrac{q_{3}}{r_{2}^2}=\dfrac{q_{2}}{r_{1}^2}$

$r_{2}^2=\dfrac{q_{3}}{q_{2}\timesr_{1}^2}$

$r_{2}=\sqrt{\dfrac{q_{3}}{q_{2}}}r_{1}$

Put the value into the formula

$r_{2}=\sqrt{\dfrac{2q}{q}}\times0.57$

$r_{2}=\sqrt{2}\times0.57$

$r_{2}=0.80\ m$

Hence, The third charge placed is 0.80 m from origin in x-axis.

4 0

3 years ago

The air that flows over the top part of an airplane's wing moves faster than the air that flows across the bottom. This faster m

kaheart [24]

As an airplane moves through the air, its wings cause changes in the speed and pressure of the air moving past them. These changes result in the upward force called lift.

The Bernoulli principle states that an increase in the speed of a fluid occurs simultaneously with a decrease in the pressure exerted by the fluid.

A wing is shaped and tilted so the air moving over it moves faster than the air moving under it. As air speeds up, its pressure goes down. So the faster-moving air above exerts less pressure on the wing than the slower-moving air below. The result is an upward push on the wing—lift!

4 0

3 years ago

As an object moves, the distance it travels increases with time.<br><br> Agree<br> Disagree

suter [353]

Answer:

Explanation: it is Agree when the distance travels

7 0

2 years ago

Read 2 more answers

Suppose that three balls are rolled simulta- neously from the top of a hill along the slopes as shown below. 1. THITH 3 Which on

BigorU [14]

Answer:

Well depending on the ramp's texture or shape probably the second one

Explanation:

3 0

3 years ago

What are the purposes of these items aboard the Voyager probes? • Low-energy particle detector: • Magnetometer boom: • High-gain

marta [7]

Explanation:

1. Low-energy particle detector: This particle detector measures the charged particles of the solar winds.

2. Magnetometer boom: This device measures magnetic fields produced by astronomical bodies.

3. High-gain antenna: A HGA has a narrow radio beam that is used to enhance the strength of signal. They simply amplify the weak signals.

4. Photopolarimeter: This is an instrument that is used to measure the strength and intensity and polarization of reflected light.

4 0
