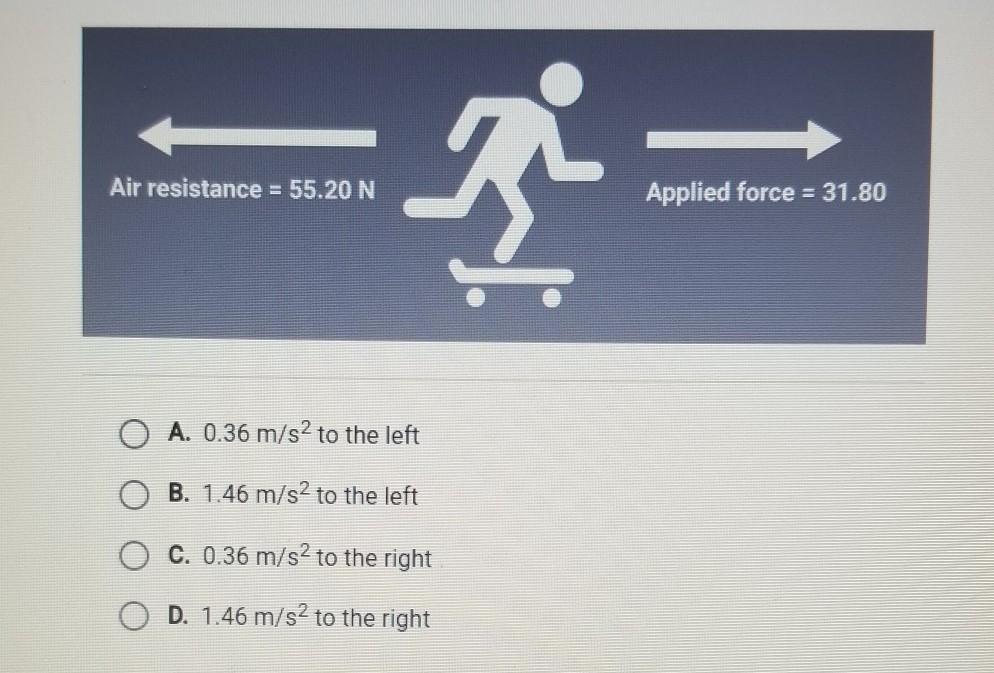

This diagram shows two different forces acting on a skateboarder. The

Physics

2 answers:

algol133 years ago

4 0

Answer:

Option A. 0.36 m/s to the left

Explanation:

From the question given above, the following data were obtained:

Force resistance (Fᵣ) = 55.2 N

Applied force (Fₐ) = 31.8 N

Mass (m) = 65.2 kg.

Acceleration (a) =?

Next, we shall determine the net force acting on the skateboarder. This can be obtained as illustrated below:

Force resistance (Fᵣ) = 55.2 N

Applied force (Fₐ) = 31.8 N

Net force (Fₙ) =?

Fₙ = Fᵣ – Fₐ

Fₙ = 55.2 – 31.8

Fₙ = 23.4 N to the left

Finally, we shall determine the acceleration of the skateboarder. This can be obtained as follow:

Mass (m) = 65.2 kg.

Net force (Fₙ) = 23.4 N to the left

Acceleration (a) =?

F = ma

23.4 = 65.2 × a

Divide both side by 65.2

a = 23.4 / 65.2

a = 0.36 m/s

Since the net force acting on the skateboarder is to the left. Therefore, the acceleration of the stakeholder will also be towards the left (i.e 0.36 m/s to the left)

guapka [62]3 years ago

4 0

Answer:

A. 0.36 m/s to the left

You might be interested in

How does a parallel circuit differ from a series circuit?

Levart [38]

A series circuit has only one path for current,
while a parallel circuit has more than one.

4 0

4 years ago

Just after a motorcycle rides off the end of a ramp and launches into the air, its engine is turning counterclockwise at 8325 re

alexgriva [62]

Answer:

$\frac{Ie}{lm} = 1.10*10^{-3}$

Explanation:

GIVEN DATA:

Engine operating speed nf = 8325 rev/min

engine angular speed ni= 12125 rev/min

motorcycle angular speed N_m= - 4.2 rev/min

ratio of moment of inertia of engine to motorcycle is given as

$\frac{Ie}{lm} = \frac{-N}{(nf-ni)}$

$\frac{Ie}{lm} = \frac{-(-4.2)}{(12125 - (8325))}$

$\frac{Ie}{lm} = 1.10*10^{-3}$

5 0

4 years ago

Read 2 more answers

As a prank, your friends have kidnapped you in your sleep, and transported you out onto the ice covering a local pond. When you

Ilia_Sergeevich [38]

Answer:

Explained

Explanation:

You should throw your boot in the direction away from the closest shore so that the reaction force is towards the closest shore.

8 0

3 years ago

A ball is launched from ground level and hits the ground again after an elapsed time of 4 seconds and after traveling a horizont

jeka94

Answer:

1)a. It is constant the whole time the ball is in free-fall.

2)b. = 14 m/s

3) e. = 19.6 m/s

Explanation:

1) given that the only force acting on the ball is gravity, gravity acts along the vertical axis. Since no other force acts on the ball then the horizontal velocity will remain constant all through the flight since there is no horizontal force acting on the ball.

2) speed = distance/time

horizontal distance = 56m

Time = 4 seconds

Speed = 56m/4s = 14m/s

3) acceleration due to gravity g = 9.8m/s^2

Initial vertical velocity = u

Final vertical velocity = v = -u

Using the law of motion;

v = u + at

a = acceleration = -g = -9.8m/s^2

t = time of flight = 4

Substituting the values;

-u = u - 4(9.8)

-2u = -4(9.8)

u = -4(9.8)/-2

u = 2(9.8) = 19.6 m/s

Initial vertical velocity = u = 19.6 m/s

3 0

4 years ago

A space shuttle sits on the launch pad for 2.0 minutes, and then goes from rest to 4600 m/s in 8.0 minutes. Treat its motion as

SpyIntel [72]

Answer:

a.) a = 0 ms⁻²

b.) a = 9.58 ms⁻²

c.) a = 7.67 ms⁻²

Explanation:

a.)

Acceleration (a) is defined as the time rate of change of velocity

$a = \frac{v_{2} - v_{1} } {t}$

Given data

Final velocity = v₂ = 0 m/s

Initial velocity = v ₁ = 0 m/s

As the space shuttle remain at rest for the first 2 minutes i.e there is no change in velocity so,

a = 0 ms⁻²

b.)

Given data

As the space shuttle start from rest, So initial velocity is zero

Initial velocity = v₁ = 0 ms⁻¹

Final velocity = v₂ = 4600 ms⁻¹

Time = t = 8 min = 480 s

By the definition of Acceleration (a)

$a = \frac{v_{2} - v_{1} } {t}$

$a = \frac{4600 - 0 } {480}$

a = 9.58 ms⁻²

c.)

Given data

As the space shuttle is at rest for first 2 min then start moving, So initial velocity is zero

Initial velocity = v₁ = 0 ms⁻¹

Final velocity = v₂ = 4600 ms⁻¹

Time = t = 10 min = 600 s

By the definition of Acceleration (a)

$a = \frac{v_{2} - v_{1} } {t}$

$a = \frac{4600 - 0 } {600}$

a = 7.67 ms⁻²

8 0
