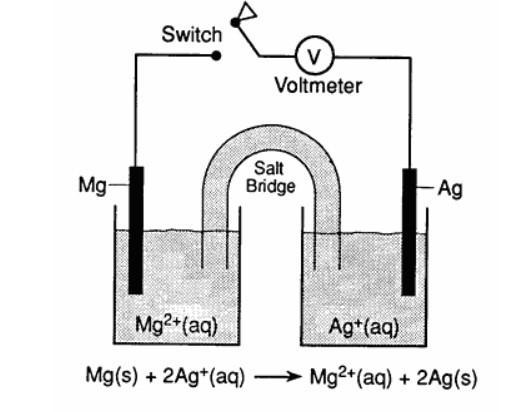

Base your answer on the equation and diagram below represent an electrochemical cell at 298 K and 1 atmosphere.

Which drawing is a structural model of C3Hg?

Aleks04 [339]

Answer:

The correct option is C

Explanation:

The structural model of C₃H₈ is that of option C.

In Structural model which can also be known as structural formula, the atoms of a molecule or compound are identified by the location of chemical bonds that exists between them. A structural formula is seen to consist of symbols. In this case, the atoms are connected by short lines. These short lines actually represent their chemical bonds. Where one, two, or three lines that connect each element that make up the compound stands for single, double, or triple bonds, respectively.

5 0

3 years ago

~ WILL MARK AS BRAINLIEST ~

Genrish500 [490]

Answer:

200 grams is the mass of 15% of the solution of lime that is formed by dissolving 30g of calcium hydroxide in water.

Explanation:

Mass of solution = M

Mass percentage of the solution of lime = 15%

Mass of lime or calcium hydroxide = m = 30 g

The Formula of mass percentage is given as :

$m/m\%=\frac{m}{M}\times 100$

On substituting the values in ab above formula :

$15\%=\frac{30 g}{M}\times 100$

$M=\frac{30 g}{15}\times 100=200 g$

200 grams is the mass of 15% of the solution of lime that is formed by dissolving 30g of calcium hydroxide in water.

7 0

3 years ago

During the phosphatase experiment you will use a 1% w/v of phenolphthalein di-phosphate (PPP). How much PPP do you need to make

MrMuchimi

Answer:

To make 500 mL of a solution of PPP 1% w/v you need 5g

Explanation:

A percent w/v solution is calculated with the following formula using the gram as the base measure of weight (w):

% w/v = g of solute/ mL of solution × 100

A 1% w/v means that you have 1 g of PPP per 100 mL of solution

Thus, if you need to make 500 mL of solution you will need 5 g of PPP.

I hope it helps!

7 0

3 years ago

Bromine occurs in the ____ state at room temperature.

Studentka2010 [4]

Answer:

d liquid

Explanation:

Bromine occurs in the liquid state at room temperature.

Bromine is the only nonmetallic element that occurs in the liquid state at room temperature.

6 0

3 years ago

Limestone (CaCO₃) is used to remove acidic pollutants from smokestack flue gases. It is heated to form lime (CaO), which reacts

Alex

To completely eliminate all of the SO2 produced by coal burning, 1250.62 kg of CaCO3 are required.

Equation

CaCO₃ --->CaO + CO2

2 CaO +2 SO2 ----> 2 CaS + 3O2

overall reaction

2 CaCO₃ +2 SO2 ---> 2 CaS + 3O2 + 2CO2

m(S)=8,5 x 10^{4}*0.0033=280.5 kg

n(SO2)= m/Ar(S) = 8,75 x 10^{3}mol

n(CaCO3 needed) = n(SO2) / percent yield

n(CaCO3 needed) = 8.75 x 10^{3}mol / 0.7

n(CaCO3 needed)= 1.25 x 10 ^4 mol

m(CaCO3 needed) = n x Mr = 1250.62kg

To completely eliminate all of the SO2 produced by coal burning, 1250.62 kg of CaCO3 are required.

<h3>Where Is Limestone Found?</h3>

Numerous locations that produce limestone have been recognized by geologists throughout the world. Between 30o N and 30o S latitude, the most of them are in shallow waters. The Caribbean Sea, Indian Ocean, Persian Gulf, and the Gulf of Mexico are the most well-known shallow water locations.

learn more about limestone here

brainly.com/question/15148363

#SPJ4

5 0

2 years ago
