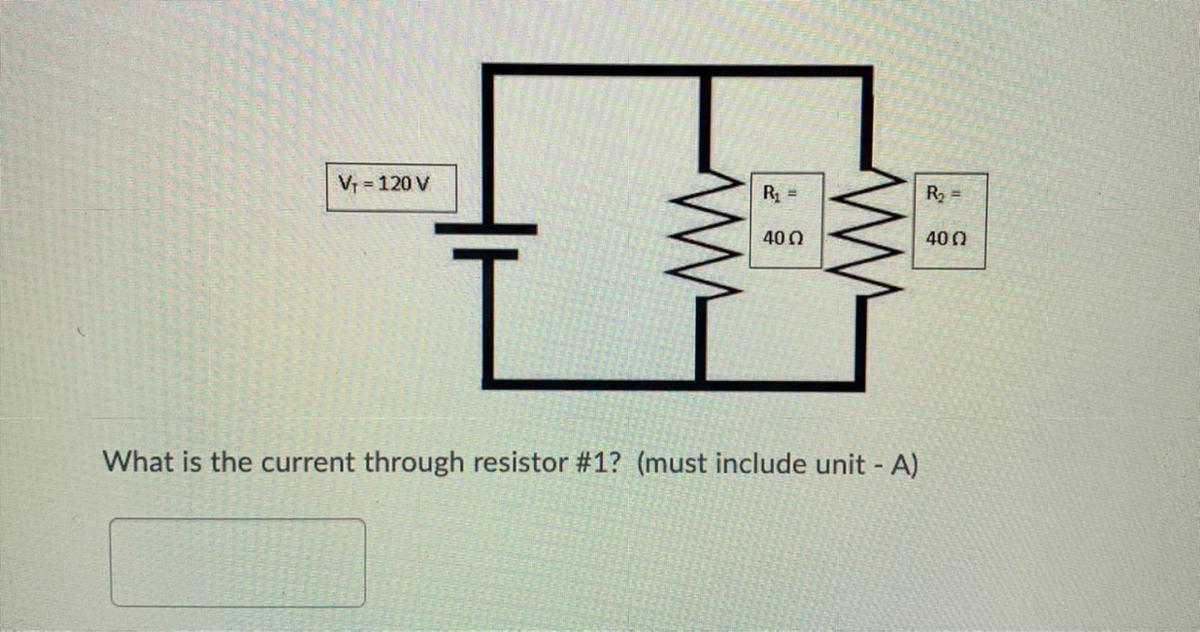

What is the current through resistor #1? (must include unit - A)

Physics

1 answer:

Vlad1618 [11]3 years ago

7 0

Answer: 3A

Explanation:

First, we must calculate voltage by summing the reciprocal of the resistances in the circuit

1/40 +1/40 = 2/40 = 1/20 = 1/R, so R = 20Ω

Using Ohm's Law, I = V/R, so the current I is I = 120/20 = 6A

Using Kerchoff's Circuit Law, we know that current will split evenly at a junction, so each resistor will get one half, or 3A.

You might be interested in

A box on a ramp is connected by a rope to a winch. The winch is turned so that the box moves down the ramp at a constant speed.

Marrrta [24]

Answer:

Option B:

The normal force

Explanation:

The normal force does no work as the box slides down the ramp.

Work can only be done when the force succeeds in moving the object in the direction of the force.

All the other forces involved have a component that is moving the box in their direction.

However, the normal force does not, as it points downwards into the ramp. Since the normal force is pointing into the ramp, and the box is sliding down the ramp, we can say that no work is being done by the normal force because the box is not moving in its direction (which would have been the box moving into the ramp)

7 0

4 years ago

What does the sky look like by a black hole?<br><br><br><br><br> astronomy

Komok [63]

By a black hole, the sky looks normal then the stars closer to the black holes look like they are spinning around the black hole.

4 0

4 years ago

Suppose you designed a spacecraft to work by photon pressure. The sail was a completely absorbing fabric of area 1.0 km2 and you

Alekssandra [29.7K]

Answer:

(a) F = 6.14 *10⁻⁴ N

(b) P = 6.14* 10⁻¹⁰ Pa

Explanation:

Area of sail A = 1.0 km² = 1.0 * 10⁶m²

Wavelength of light λ = 650 nm = 650 * 10⁻⁹ m

Rate of impact of photons R = 1 mol/s = 6.022 * 10²³ photons/s

(a)

Momentum of each photon is Ρ = h/λ = 6.625 * 10⁻³⁴ / 650 * 10⁻⁹

= 1.0192 * 10⁻²⁷ kg.m/s

Since the photons are absorbed completely, in every collision the above momentum is transferred to the sail.

Momentum transferred to the sail per second is product of rate of impact of photons and momentum transferred by each photon.

dp/dt = R * h/ λ

This is the force acting on the sail.

F = R * h/λ = 6.022 * 10²³ * 1.0192 * 10⁻²⁷ = 6.14 *10⁻⁴ N

F = 6.14 *10⁻⁴ N

Pressure exerted by the radiation on the sail = Force acting on the sail / Area of the sail

P = F/A = 6.14 * 10⁻⁴ / 1.0 * 10⁶ = 6.14* 10⁻¹⁰ Pa

P = 6.14* 10⁻¹⁰ Pa

Acceleration of spacecraft a = F/m = 6.14 * 10⁻⁴ /1.0 = 6.14 * 10⁻⁴m/s²

As the spacecraft starts from rest, initial speed u=0,m/s ,

final speed is u = 1.0 m/s after time t

v = u+at

t = 1.0 - 0/ 6.14 * 10⁻⁴ = 1629s = 27.2 min

t = 27.2 min

4 0

4 years ago

What are the density, specific gravity and mass of the air in a room whose dimensions are 4 m * 6 m * 8 m at 100 kPa and 25 C.

Volgvan

Answer:

Density = 1.1839 kg/m³

Mass = 227.3088 kg

Specific Gravity = 0.00118746 kg/m³

Explanation:

Room dimensions are 4 m, 6 m & 8 m. Thus, volume = 4 × 6 × 8 = 192 m³

Now, from tables, density of air at 25°C is 1.1839 kg/m³

Now formula for density is;

ρ = mass(m)/volume(v)

Plugging in the relevant values to give;

1.1839 = m/192

m = 227.3088 kg

Formula for specific gravity of air is;

S.G_air = density of air/density of water

From tables, density of water at 25°C is 997 kg/m³

S.G_air = 1.1839/997 = 0.00118746 kg/m³

4 0

3 years ago

A skateboarder is moving at 1.75 m/s when she starts going up an incline that causes an acceleration of -0.20 m/s2

Rudiy27

Answer:

Approximately $7.66\; \rm m$ .

Explanation:

<h3>Solve this question with a speed-time plot</h3>

The skateboarder started with an initial speed of $u = 1.75\; \rm m \cdot s^{-1}$ and came to a stop when her speed became $v = 0\; \rm m \cdot s^{-1}$ . How much time would that take if her acceleration is $a = -0.20\; \rm m \cdot s^{-1}$ ?

$\begin{aligned} t &= \frac{v - u}{a} \\ &= \frac{0\; \rm m \cdot s^{-1} - 1.75\; \rm m \cdot s^{-1}}{-0.20\; \rm m \cdot s^{-2}} \approx 8.75\; \rm s\end{aligned}$ .

Refer to the speed-time graph in the diagram attached. This diagram shows the velocity-time plot of this skateboarder between the time she reached the incline and the time when she came to a stop. This plot, along with the vertical speed axis and the horizontal time axis, form a triangle. The area of this triangle should be equal to the distance that the skateboarder travelled while she was moving up this incline until she came to a stop. For this particular question, that area is approximately equal to:

$\displaystyle \frac{1}{2} \times 1.75\; \rm m \cdot s^{-1} \times 8.75\; \rm s \approx 7.66\; \rm m$ .

In other words, the skateboarder travelled $15.3\; \rm m$ up the slope until she came to a stop.

<h3>Solve this question with an SUVAT equation</h3>

A more general equation for this kind of motion is:

$\displaystyle x = \frac{1}{2}\, (u + v) \, t = \frac{1}{2}\, (u + v)\cdot \frac{v - u}{a}= \frac{v^2 - u^2}{2\, a}$ ,

where:

$u$ and $v$ are the initial and final velocity of the object,
$a$ is the constant acceleration that changed the velocity of this object from $u$ to $v$ , and
$x$ is the distance that this object travelled while its velocity changed from $u$ to $v$ .

For the skateboarder in this question:

$\begin{aligned}x &= \frac{v^2 - u^2}{2\, a}\\ &= \frac{\left(0\; \rm m \cdot s^{-1}\right)^2 - \left(1.75\; \rm m \cdot s^{-1}\right)^2}{2\times \left(-0.20\; \rm m \cdot s^{-2}\right)}\approx 7.66\; \rm m \end{aligned}$ .

6 0
