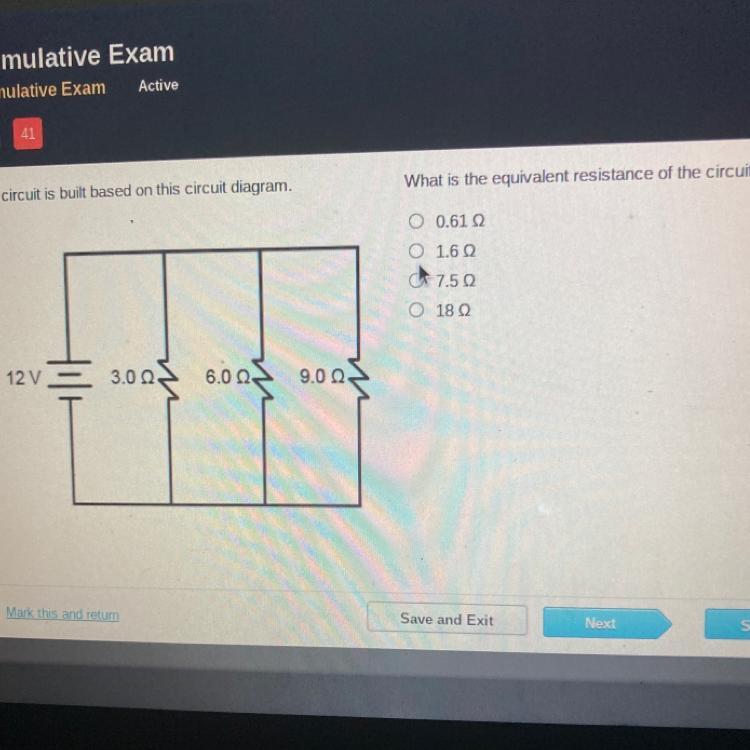

A circuit is built based on this circuit diagram.

Physics

2 answers:

NeX [460]3 years ago

4 0

Answer:

1.6

Explanation:

uranmaximum [27]3 years ago

3 0

$\mathfrak{\huge{\orange{\underline{\underline{AnSwEr:-}}}}}$

Actually Welcome to the concept of resistors,

The equivalent circuit is given as,

1/Rp = 1/3 + 1/6 + 1/9

1/Rp = 6+3+2/18

1/Rp = 11/18

Rp = 18/11 ==> 1.63 ==> 1.6 ohms

hence the equivalent resistance of the circuit is 1.6 ohms
