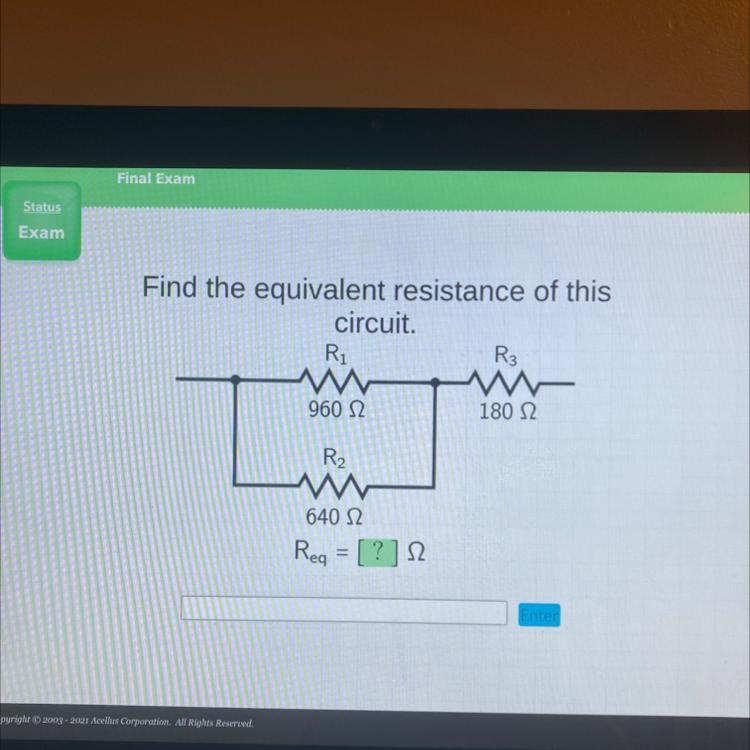

Find the equivalent resistance of this circuit

Physics
1 answer:
Phantasy [73]3 years ago
8 0

Answer:

Req = 564 Ω

Explanation:

The equivalent resistance between R1 and R2:

1/R =1/R1 + 1/R2

1/R =1/960 + 1/640

1/R = 1/384

R = 384

Now, the equivalent resistance between R and R3:

Req = 384 + 180

Req = 564 Ω
