loris [4]
2 years ago
14

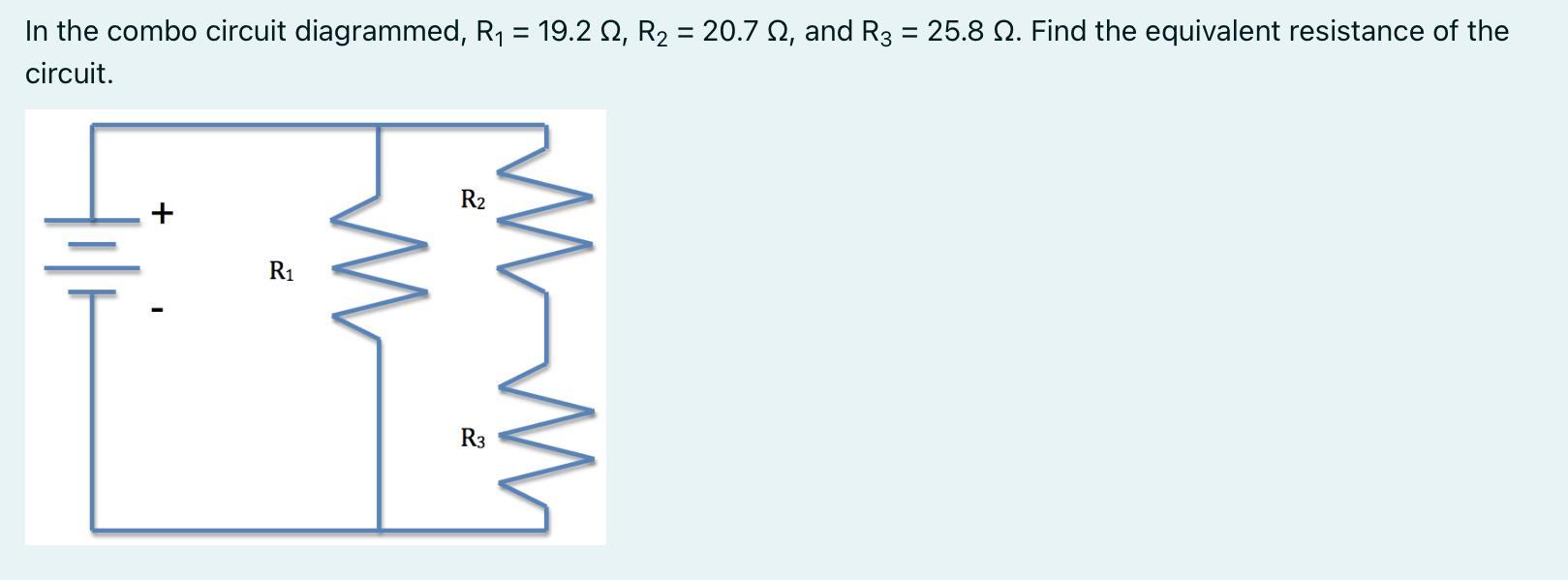

In the combo circuit diagrammed, R1 = 19.2 Ω, R2 = 20.7 Ω, and R3 = 25.8 Ω. Find the equivalent resistance of the circuit.

Physics
1 answer:
vaieri [72.5K]2 years ago
8 0

Answer:

Equivalent resistance: 13.589 Ω

Explanation:

R series = R1 + R2 + R3 ...

\frac{1}{R_{eq} } = \frac{1}{R1} +\frac{1}{R2} +\frac{1}{R3} ...

Find the equivalent resistance of the right branch of the circuit:

R_{eq}  = R_{2} +R_{3} \\R_{eq} = 20.7 + 25.8 = 46.5 ohms

\frac{1}{R_{eq} } = \frac{1}{19.2} +\frac{1}{46.5}\\\\\frac{1}{R_{eq} } = 0.0735887097\\\\R_{eq} = 13.5890411
