Question

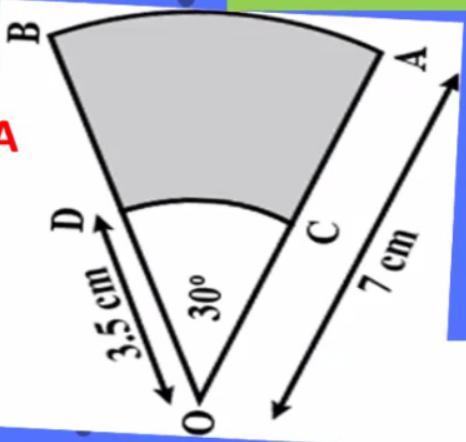

Help me with this math question please its find the area <3

Answer 1

Answer:

9.628 cm²

Step-by-step explanation:

Let A be the area of the sector OAB

Let a be the area of the sector OCD

The shaded area = A − a

$\begin{aligned}A &=\frac{1}{12} (\pi \times 7^{2}) \\&=12.828 \ldots\end{aligned}$

$\begin{aligned}a & = \frac{1}{12}\left(\pi \times 3.5^{2}\right) \\&=3.2 \ldots\end{aligned}$

The shaded area ≈ 12.828 - 3.2 ≈ 9.628 cm²
