Answer:

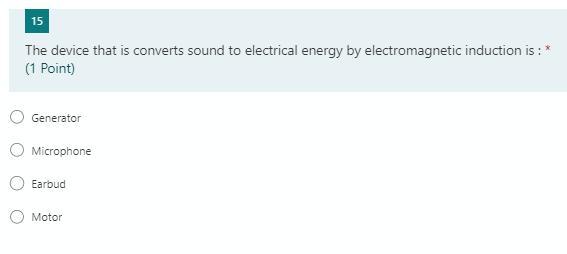

Microphone

Explanation:

Microphone is the device which converts sound into electrical energy by electromagnetic induction

You might be interested in

The acceleration due to gravity on earth will decrease as which of the following occurs. The mass of the object decreases. The d

pentagon [3]

Answer:

The distance of the object to the center of the earth increases.

Explanation:

The acceleration due to gravity on Earth is given by:

$g=\frac{GM}{r^2}$

where

G is the gravitational constant

M is the Earth's mass

r is the distance of the object from the Earth's centre

We notice that:

- g does not depend on the mass of the object

- g is inversely proportional to r

This means that if the distance of the object from the Earth's centre increases, g decreases. So, the correct option is

The distance of the object to the center of the earth increases.

4 0

3 years ago

A magnetic field of 37.2 t has been achieved at the mit francis bitter national magnetic laboratory. Find the current needed to

jeka57 [31]

Answer:

Here is the complete question:

https://www.chegg.com/homework-help/questions-and-answers/magnetic-field-372-t-achieved-mit-francis-bitter-national-magnetic-laboratory-find-current-q900632

a) Current for long straight wire $=3.7\ MA$

b) Current at the center of the circular coil $=2.48\times 10^{5}\ A$

c) Current near the center of a solenoid $236.8\ A$

Explanation:

⇒ Magnetic Field due to long straight wire is given by (B),where $B=\frac{\mu\times I}{2\pi(r) },so\ I=\frac{B\ 2\pi(r)}{\mu}$

$\mu=4\pi \times 10^{-7}\ \frac{henry}{m}$

Plugging the values,

Conversion $1\times 10^6 A = 1\ MA$ ,and $2cm=\frac{2}{100}=0.02\ m$

$I=\frac{37.2\times \ 2\pi(0.02)}{4\ \pi \times (10^{-7})}=3.7\ MA$

⇒Magnetic Field at the center due to circular coil (at center) is given by, $B=\frac{\mu\times I (N)}{2(a)}$

So $I= \frac{2B(a)}{\mu\ N} = \frac{2\times 37.2\times 0.42}{4\pi\times 10^{-7}\times 100}=2.48\time 10{^5}\ A$

⇒Magnetic field due to the long solenoid, $B=\mu\ nI=\mu (\frac{N}{l})I$

Then $I=\frac{B}{\mu(\frac{N}{L})} \approx 236.8\A$

So the value of current are $3.7 MA$ , $2.48\times 10^{5} A$ and $236.8\ A$ respectively.

8 0

3 years ago

Sics and Chemistry A (2nd Six Weeks) - SC3200SFA/01

Andreyy89

Force = Mass * Acceleration therefore the red ball with the higher mass will have more force and greater acceleration

3 0

3 years ago

You are in a car moving forward at 12 m/s. You throw a ball in the direction the car is moving. From your point of view, what do

4vir4ik [10]

Answer: it goes the same speed as the car

Explanation:

3 0

3 years ago

A gymnast dismounts off the uneven bars in a tuck position with a radius of 0.3m (assume she is a solid sphere) and an angular v

kifflom [539]

Here we will say that there is no external torque on the system so we will have

$L_i = L_f$

here we know that

$L_i = I_1\omega_1$

where we know that

$I_1 = \frac{2}{5}mr^2$

Also we know that

$I_2 = \frac{1}{12}mL^2$

initial angular speed will be

$\omega_1 = 2\pi(2rev/s) = 4\pi rad/s$

now from above equation

$\frac{2}{5}mr^2 (4\pi) = \frac{1}{12}mL^2 \omega$

$0.4(0.3)^2(4\pi) = \frac{1}{12}(1.5)^2\omega$

$0.452 = 0.1875 \omega$

now we have

$\omega = 2.41 rad/s$

so final speed will be 2.41 rad/s

6 0
