nata0808 [166]
2 years ago
8

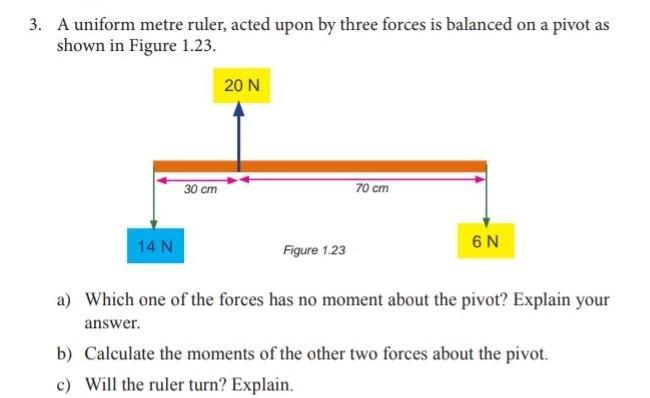

Please help me with this​

Physics
1 answer:
AfilCa [17]2 years ago
3 0

Answer:

20 N exerts no torque about the pivot.

14 N exerts a counterclockwise torque of 14 * .3 = .42 N-m

6  exerts a clockwise torque of 6 * .7 = .42 N-m

The meter stick will not turn because there is no net torque on the meter stick.

You might be interested in
Why it is important for scientists and engineers to understand the relationship between a structure and its function?
ivolga24 [154]

Answer:

Science is the body of knowledge that explores the physical and natural world. Engineering is the application of knowledge in order to design, build and maintain a product or a process that solves a problem and fulfills a need.

Explanation:

3 0
3 years ago
Which object has a weight of about 22.5 n the book the rock the box the fish
Alex Ar [27]

Answer: The rock

Explanation:

8 0
2 years ago
A person of mass m is standing on the surface of the Earth, of mass M E . What is the acceleration that the Earth experiences du
Lana71 [14]

Answer:

a_E=\dfrac{Gm}{r^2}

Explanation:

M_E = Mass of the Earth =  5.972 × 10²⁴ kg

G = Gravitational constant = 6.67 × 10⁻¹¹ m³/kgs²

r = Radius of Earth = 6371000 m

m = Mass of person

The force on the person will balance the gravitational force

M_Ea_E=\dfrac{GmM_E}{r^2}\\\Rightarrow a_E=\dfrac{Gm}{r^2}

The acceleration that the Earth will feel is a_E=\dfrac{Gm}{r^2}

7 0
3 years ago
An electron moving in the direction of the +x-axis enters a region where both an electric and magnetic field are applied. The el
labwork [276]

Answer:

The electric field is entering the sheet

Explanation:

When the electron enters the region with the two fields, each one feels a force, so that the direction of the electron is altered, the sum of these two forces is zero.

Let's look for the direction of the magnetic force, for a positive charge, using the rule of the right hand, where the thumb goes in the direction of the velocity of the particle, the fingers extended in the direction of the magnetic field and the palm is in the direction of the strength

Let us apply this rule our case, the thumb goes the x axis and the fingers on the Y axis, therefore, the force is coming out of the sheet, if the load were positive, but with negative the magnetic outside is entering the leaf

The electric force is F = q.E.

For the resultant to be zero the electric force must leave the sheet and as our charge is negative The electric field is entering the sheet

3 0
4 years ago
An ocean wave travels 10.9 m in 5.1 s. the distance between two consecutive wave crests is 4 m. what is the frequency of the wav
Jlenok [28]
The speed of the wave is given by Distance divided by time.
Speed = 10.9/5.1
            = 2.14 m/s
But; speed is also given by frequency multiplied by wavelength
Wavelength is 4 m( distance between two successive crests)
thus; 2.14 = 4 × f
          f = 2.14/4
            = 0.535 Hz
8 0
3 years ago
